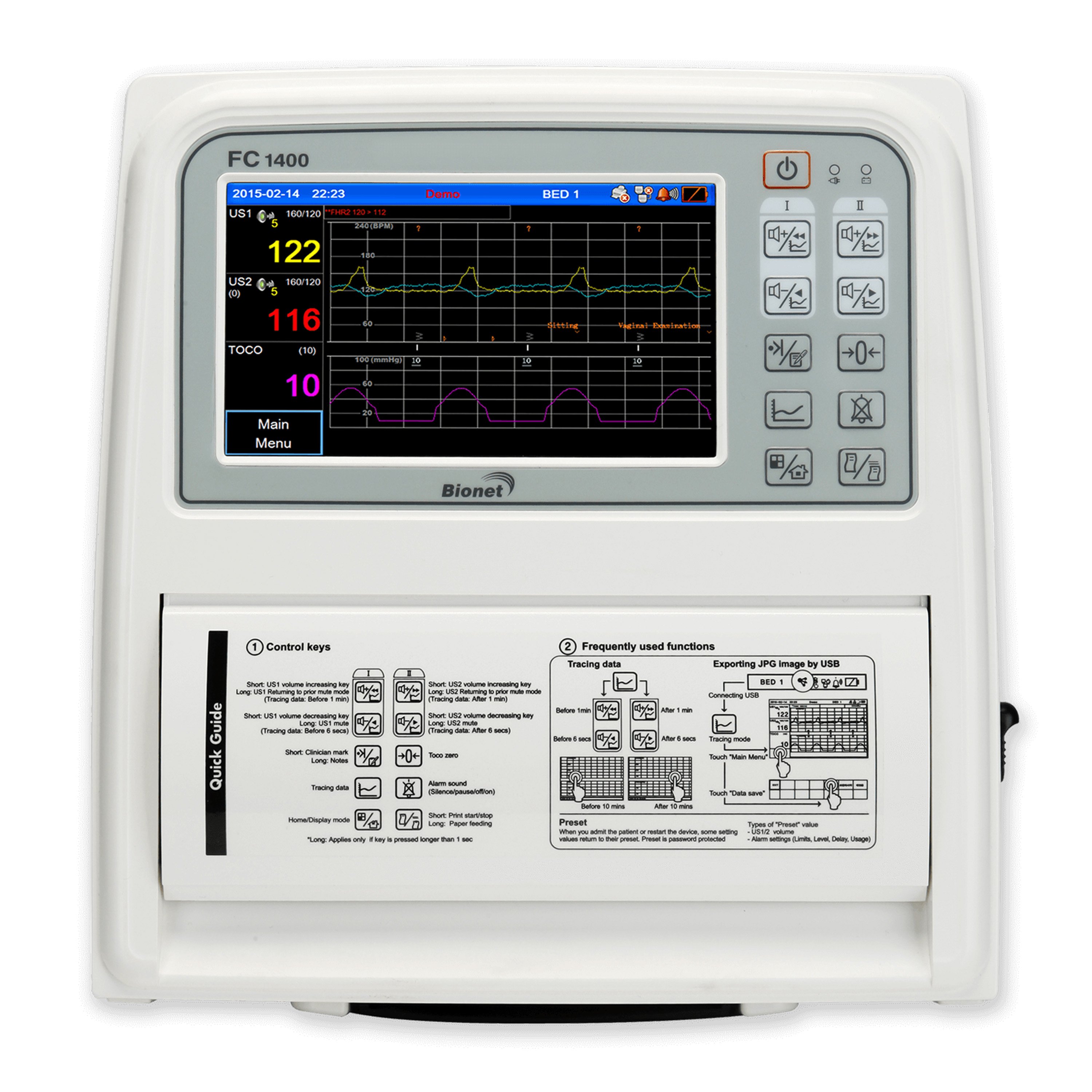

Bionet FC1400 Touchscreen Antepartum Twin Fetal Monitor

The Bionet FC1400 Touchscreen Antepartum Twin Fetal Monitor is an antepartum touch screen fetal monitor that detects and displays twin fetus heart rates and uterine activity in real-time on the 7” color touch screen LCD monitor. It provides accurate, continuous obstetric measurements in the most rigorous clinical environments and features a touch interface with 10 smart keys for 16 functions, making operation easier and faster.

Features:

• Superior Data Display and Touch Interface:
  • 7” wide color LCD viewer (800×480 resolution)
  • Touch screen operation, along with 10 smart keys for 16 functions
  • Two Display Modes:
    • Graphic Mode: For general monitoring of fetal status
    • Text Mode: For the user's quicker and easier recognition of fetal status from a long distance
  • Yellow/green LED alarm lamp for easier recognition of device and patient status
  • Onboard memory allows for reviewing and printing up to 72 hours of internally stored data
•  Extreme Data Accuracy and Smart Function:
  • Twin fetus heart rate and uterine activity
  • More compact probes and robust connectors
  • Automatic fetal movement detection
  • Automatic TOCO zeroing reduces the need for staff involvement
  • Clinical mark, and note entering
  • Input Note from Note List:
    • Note is shown in the status line of the display, and is annotated on the fetal trace
    • With 4 default notes, a maximum of 100 notes can be documented by users
  • Cardiotocography (CTG) interpretation provides the silent recommendation for Non-Stress Test (NST)
  • CTG interpretation report for more comfortable and easier reading of findings by users, up to 4 hours and 30 minutes of data
  • 72-hour memory capacity

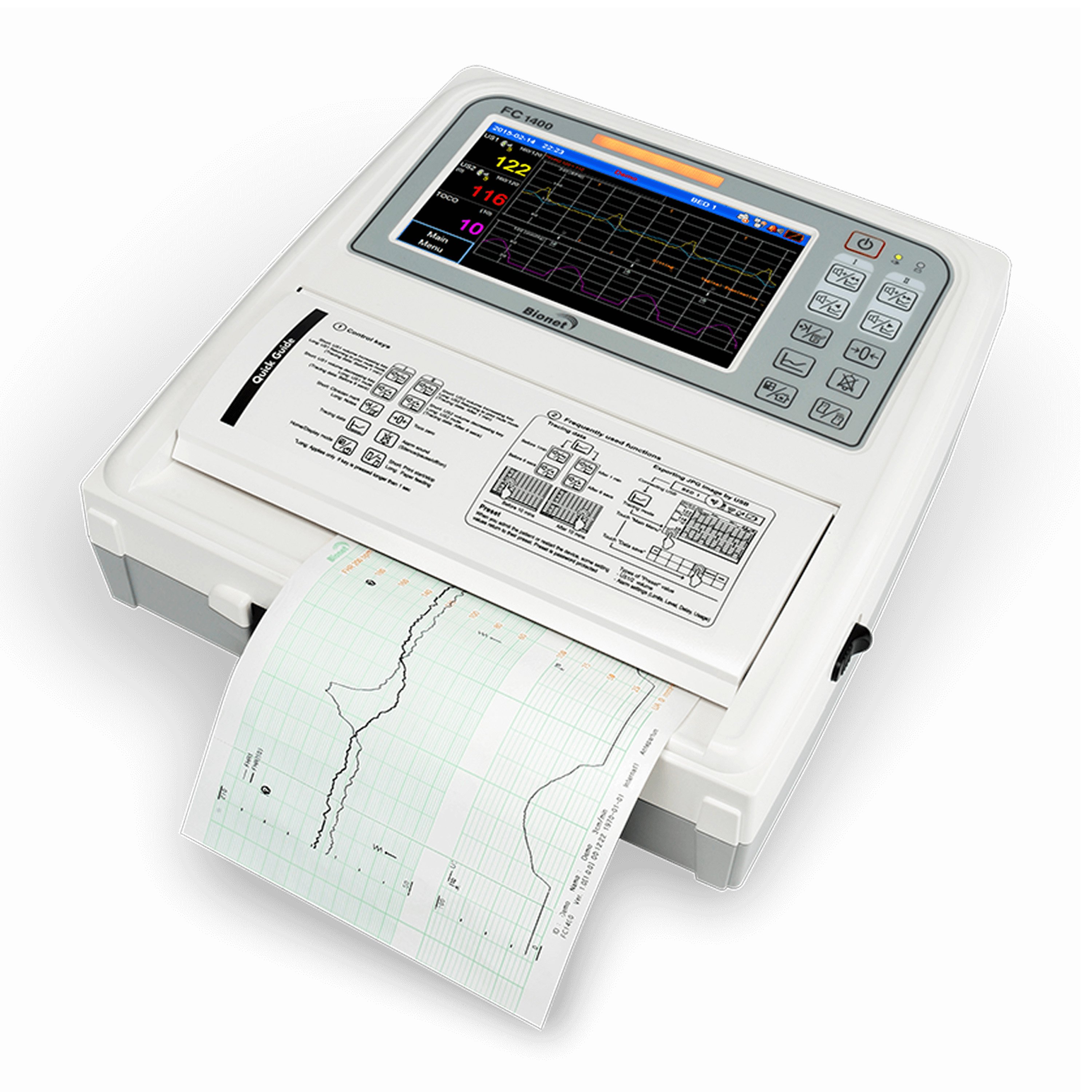

• Printout:
  • Easy-to-read B4 size chart paper with a folding line
  • High-speed printout of stored data
  • Paper feeding for short handwriting memo
• Optional Accessories (Not Included):
  • Rechargeable Battery
  • Metal Stand
  • Cart
  • USB WiFi Dongle

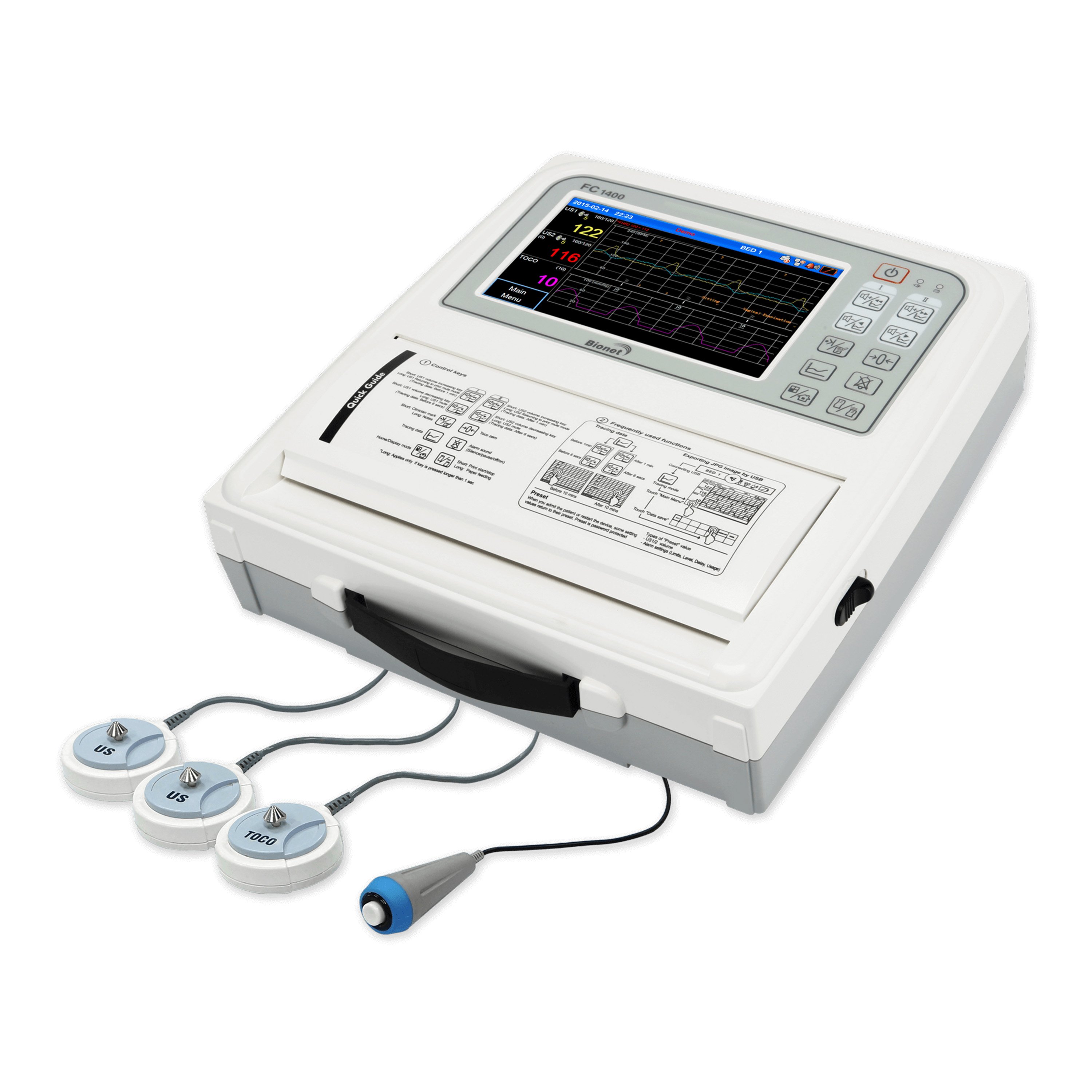

• Comes Standard With:
  • (1) FC 1400 Main Unit
  • (2) US Probe
  • (1) TOCO Probe
  • (1) Event Marker Jack
  • (1) Ultrasound Gel
  • (3) Probe Belt
  • (2) Printer Paper Rolls
  • (1) Power Adapter
  • (1) Hospital-Grade Power Cable
  • (1) Operation Manual
  • (1) Warranty Card

Technical Specifications:

• Display: 7" TFT Wide LCD Screen (800 X 480 Resolution)
• Recorder:
  • Method: Thermal Array Print
  • Type: Roll Type
  • Print Speed:
    • Real-Time Mode: 1, 2, 3 cm/min
    • Trace Mode: 20, 30 cm/min
  • Paper Feeding Function
• External Link: LAN, WiFi, USB Flash Drive (Not Included)
• Fetal Heart Rate:
  • Input Signal: Ultrasound Pulsed Doppler
  • Ultrasound Frequency: 1.0 MHz, 975 KHz
  • Ultrasound Power: < 10 mW/cm²
  • FHR Detection Method: Autocorrelation
  • FHR Range: 50-210 BPM
  • FHR Accuracy: 120-160: ±1 BPM / Except 120-160 BPM: ±2 BPM
• Uterine Contraction:
  • Input Source: External Transducer with Load Cell
  • Reference Control: One Touch Switch, Auto Zeroing
  • Measurement Range: 0-99
• Fetal Movement Measurement Detection Source: Ultrasound Pulsed Doppler, Event Marker
• Data Storage: Storage for 72 Hours
• Auto CTG Analysis:
  • Average Baseline FHR
  • Number of UC
  • Number of Acceleration
  • Number of Decelerations
  • Late Deceleration
  • Early Deceleration
  • Variable Deceleration
  • High Episode
  • Low Episode
  • Short-Term Variability
  • Signal Loss
  • CTG Analysis Results are Printed Out Every 10 Minutes (Intermediate Report)
• Power:
  • Input: 100-240 VAC, 1.5-0.7 A, 50-60 Hz
  • Output: 18 VDC, 2.8 A
• Overall Dimensions: 11.65" W x 3.84" D x 12.03" H
• Actual Product Weight: 5.73 lbs
• Warranty: 3 Years
