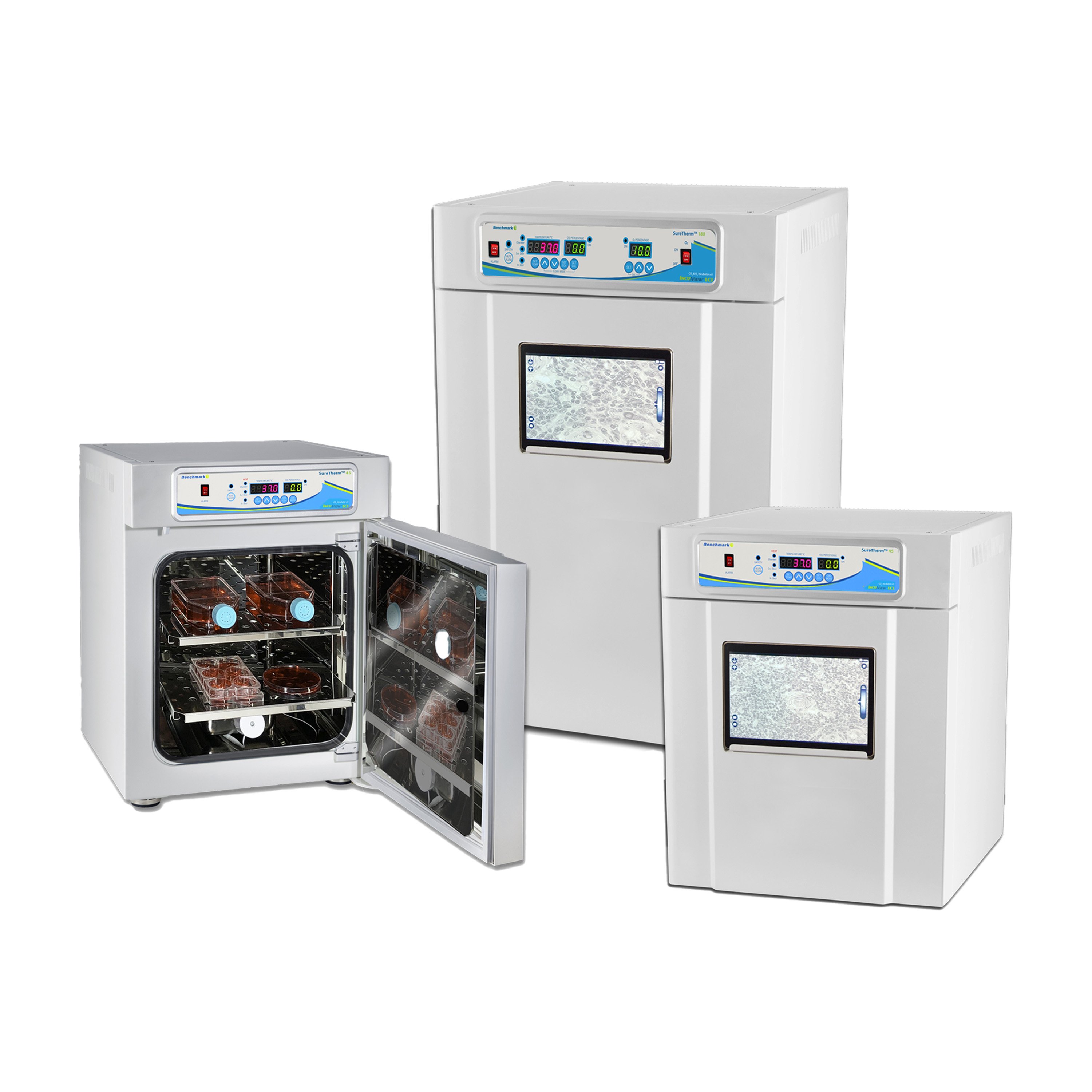

Benchmark SureTherm™ CO2 Incubator

The Benchmark SureTherm™ CO₂ Incubator provides the perfect environment for cultures with its precise temperature and CO₂ control. It features a proprietary heat distribution system with six-sided heating and a low-speed internal fan. Air circulates evenly within the chamber without external exchange, resulting in a protected and controlled environment with minimal temperature fluctuations.

Features:

• Advanced Monitoring and Controls - Digital microprocessor controls provide constant monitoring of the temperature and CO₂%. In the event of a deviation, an audible alarm alerts the user
• Dual Beam InfraRed (IR) CO₂ Sensor - Provides accurate measurement of CO₂ levels
• 6-Sided Direct Heating - Precision heat control over all 6 sides of the fully sealed chamber minimizes air flow and reduces contamination risk
• Heated Door and Frame - Prevents the formation of condensation on the inner glass door
• Stackable Design - Can be easily stacked to increase sample capacity
• Rounded Stainless Steel Chamber - Stainless steel material ensures excellent temperature uniformity, with rounded corners designed for easy cleaning
• High Heat Decontamination - Exposes the chamber to 125°C for 8 hours to eliminate contamination risk (Available in H3565-180HD and H3565-180HDO2 only)
• Oxygen Control - Reduces cellular stress and accelerates cell growth (Available in H3565-180HDO2 only)
• Split Inner Door - Allowing easy sample access without opening the entire door, reducing contamination risk and temperature and CO₂ fluctuations (Available in H3565-180HDO2 only)
• Internal Microscope - Captures live cell images (LCI) and monitors samples without removing culture plates, flasks, or dishes from the chamber (Available with H3565-45-LCI or H3565-180-LCI)*
• Large Display Monitor - Wirelessly connects to the internal microscope and allows for real-time monitoring of cells, visualization of samples, capturing time-lapse images (Available with H3565-45-LCI or H3565-180-LCI)*

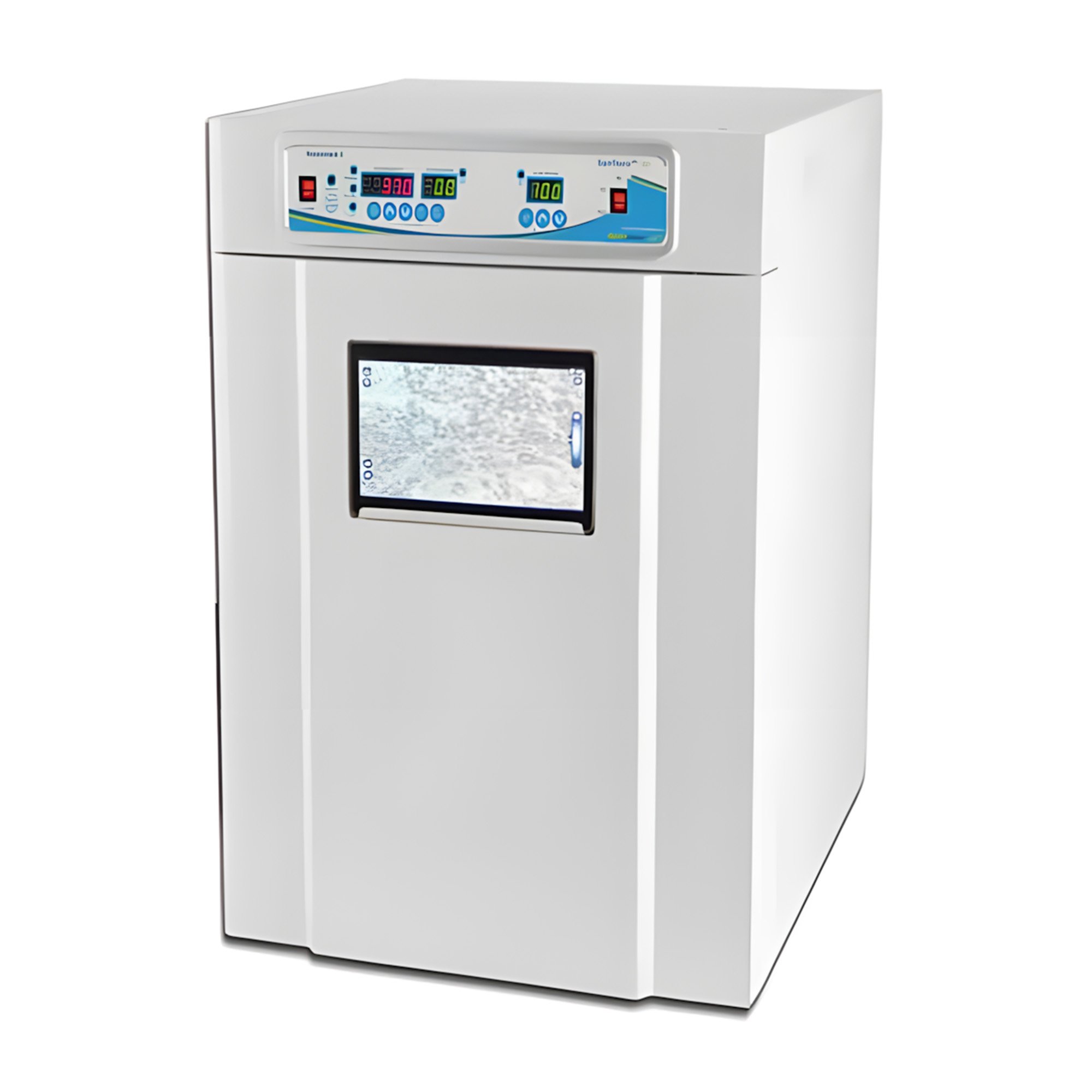

• Available in four variants: 45 Liter, 180 Liter without High Heat Decontamination, 180 Liter with High Heat Decontamination, and 180 Liter with High Heat Decontamination and O₂ Control

*Note: IncuView™ LCI Integrated Shelf (H3565-45-LCI and H3565-180-LCI) is factory installed and must be purchased with the SureTherm™ CO2 Incubator.

Technical Specifications:

• Temperature Range: Ambient +5 to 60°C
• Temperature Accuracy: ±0.1°C*
• Temperature Uniformity: ±0.4°C*
• Temperature Increment: 0.1°C
• Temperature Stability: 0.1°C*
• CO₂ Range: 0 to 20%
• CO₂ Increment: 0.1%
• CO₂ Accuracy: ±0.1%
• CO₂ Sensor: Dual Beam IR CO₂ Sensor
• Electrical: 120V, 50-60Hz
• Chamber Material: Stainless Steel
• Warranty: 2 Years

* At a set temperature of 37.0°C
