Product Description

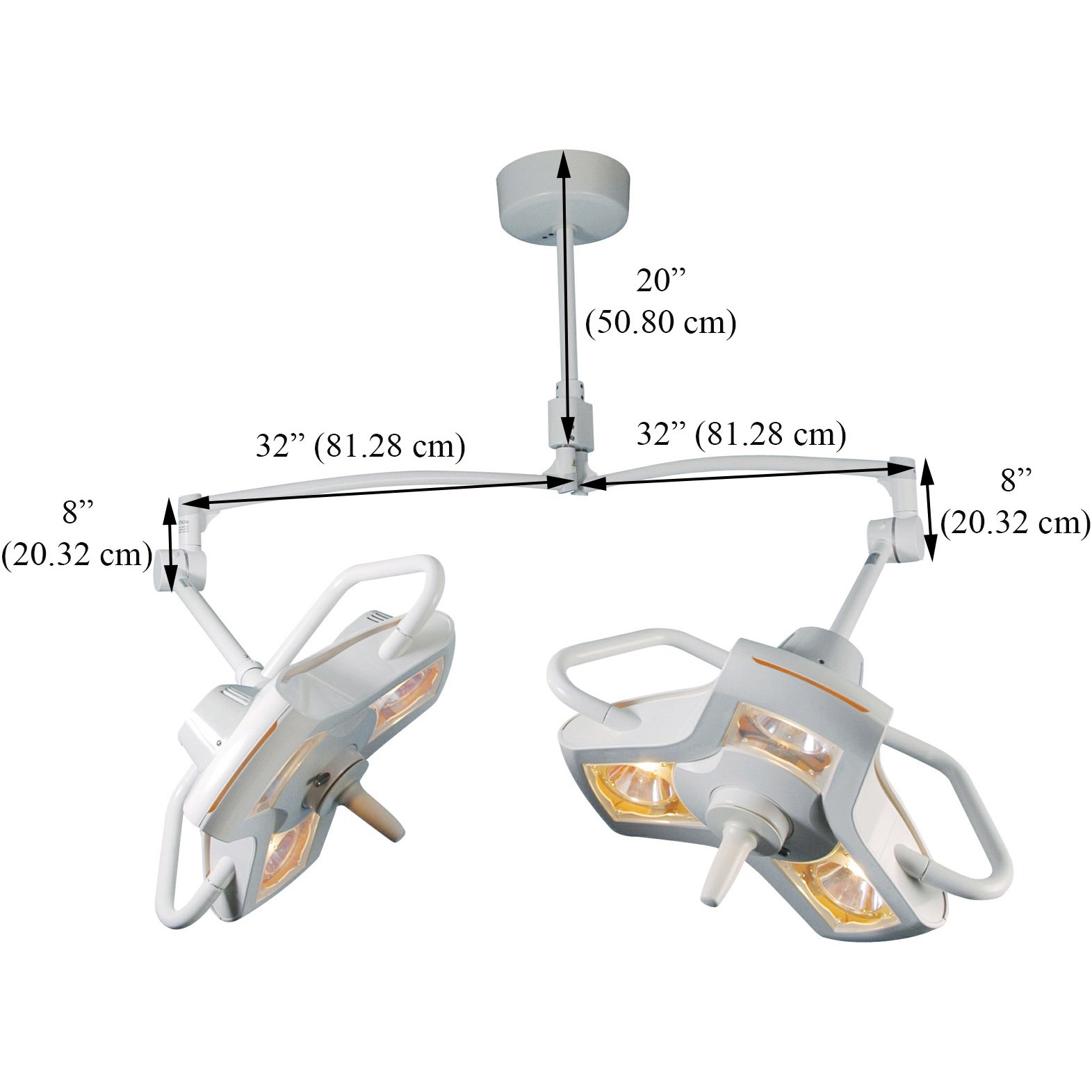

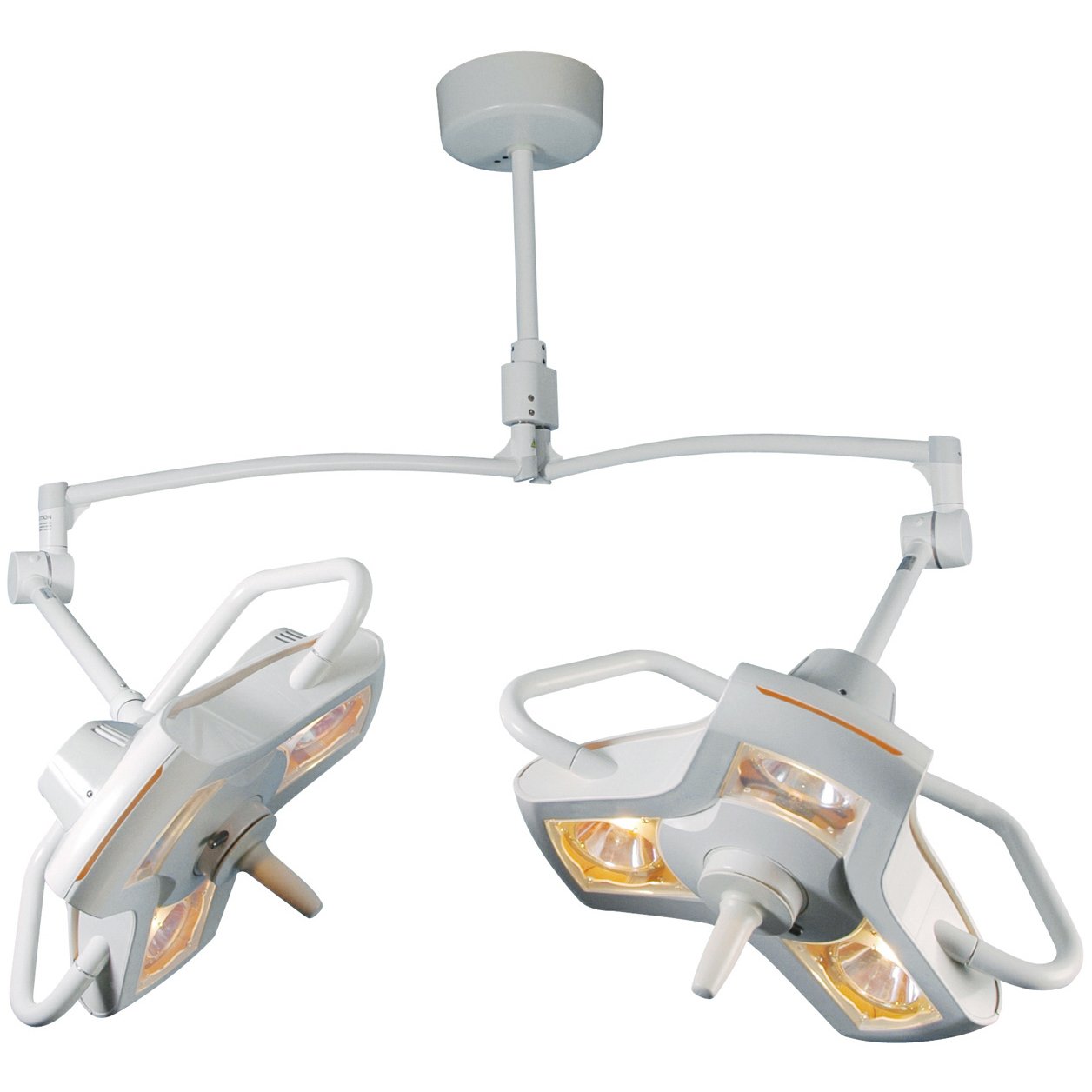

Burton's AIM-100 Double Ceiling provides both amazing value and unparalleled aesthetics. Along with the highest intensity illumination, you can also expect a smooth focus and superior maneuverability. A longer arm system ensures that the light can be positioned in the widest range of positions possible, making the AIM-100 Double Ceiling ideal for major surgery.

Technical Specifications:
  • High-intensity of 160,000lux (14,800 fc) at 24" and 63,000 lux (5800 fc) at 1 meter, per lighthead
  • 3500 degrees K color temperature offers natural and true coloring
  • High CRI (Color Rendering Index) of 97
  • Each light head uses three 35-watt quartz halogen bulbs - each rated with a 2000-hour bulb life. Bulbs wired in parallel for continuous operation

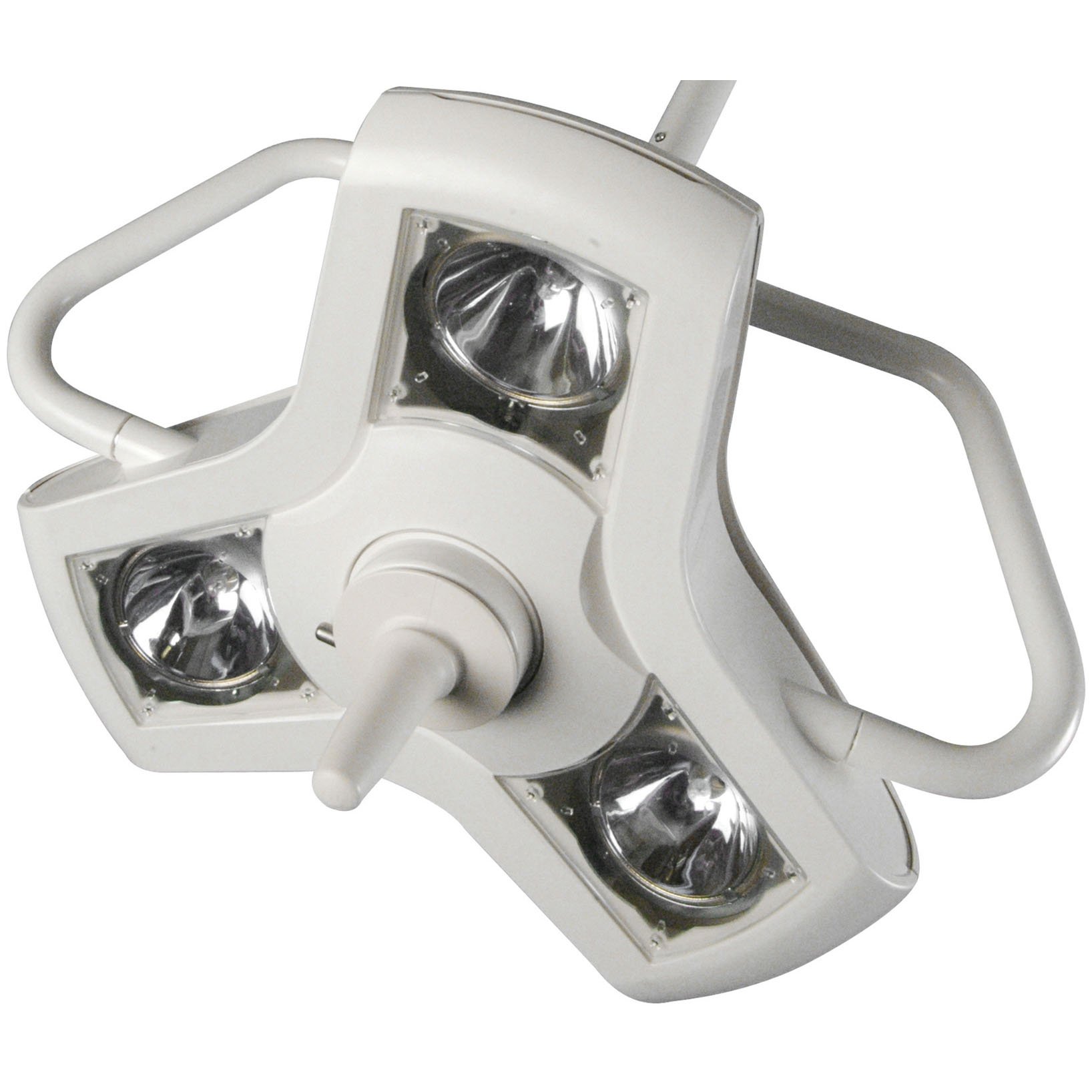

  • Compact 20" (51 cm) diameter lighthead
  • Y-shaped lighthead promotes light pattern free of cast shadows
  • Extremely smooth focus mechanism with center sterilizable handle
  • Cool operation for long hours of use
  • Limitless rotation on ceiling mounts
  • 115V
  • 5-year warranty
  • Assembled in USA
  • UL 60601-1/ 60601-2-41 Certified and CE marked


    Manufacturer Burton
    Item Ships From Illinois


    (Size: 128.7 KB)



    Mechanical components of Philips Burton products are warranted to provide the original owner 5 (five) years of free service from defects in material and workmanship. The warranty does not cover the following items: light sources, handles, fuses and consumables.

    This warranty will not apply if the serial or lot number on the product has been altered, removed or made illegible. This warranty does not cover alterations, adaptations or adjustments made to the product. Periodic maintenance and repair or replacement of parts due to normal wear and tear is not covered.  Also not covered are issues resulting from Abuse or misuse of the product. The warranty does not cover repairs performed by non-authorized service stations, dealers or the original owner.  Warranty does not cover Accidents, lightning, water, fire, improper ventilation or any cause beyond the control of Philips Burton.  Defects of the system into which the product is incorporated including installation and modification defects are not covered by this warranty.


    Unauthorized returns will not be accepted, please contact Customer Service within 30 days of product shipment date and indicate the reason for your return. Returned items must be in new, unused condition in all original packaging. It is customer's responsibility to review product specifications, certifications, listings, etc. prior to purchase. A minimum 18 percent restocking fee plus all freight charges will be applied to any product returned.

    A cancellation fee of up to $250 may apply at discretion of manufacturer. Cancellation charges for custom-built products may be subject to additional penalty fees at any time. All freight damage claims must reported within (3) days of receipt of shipment.
