ADC Diagnostix™ 5580 3.5V Desk Diagnostic Set with LED Lamp

The ADC Diagnostix™ 5580 3.5V Desk Diagnostic Set with LED Lamp helps practitioners perform fast, accurate, and efficient exams due to its innovative optics, advanced lighting technologies, and long-lasting power sources.

Diagnostic Set Comes Standard with:

• One 3.5V PMV (Panoramic Magnified View) Otoscope Head
  • Uses advanced optical technology to create a panoramic magnified view that features twice the field of view and 66% greater magnification (11 mm field of view, 5x magnification) compared to the standard otoscope
  • Significantly improved view of the auditory canal and tympanic membrane
  • Fiber-optic light transmission for an unobstructed view
  • High-performance LED illumination (4,200 Kelvin, CRI = 92)
  • Reflection-optimized, high-performance glass optics
  • Adjustable focal depth
  • Suitable for throat illumination and pneumatic otoscopy
  • Compatible with Welch Allyn specula
  • The anti-theft locking feature is standard
  • Universal bayonet mount is compatible with other brands of 3.5V handles
• One 3.5V Coax or Coax Plus Ophthalmoscope Head (Depending on Models)

  • High-performance aspherical condenser lens reduces corneal reflection
  • Further reduction is provided by utilizing distinct parallel observational and illuminating light beams (Gullstrand’s principle)
  • Ergonomic design and integral thumb rest improve stability and allow one-finger control of all functions
  • Synthetic rubber brow rest facilitates use with practitioner eyeglasses
  • Dust proof
  • Magnified/illuminated aperture viewing window
  • Universal bayonet mount for compatibility with other brands of 3.5V power supply handles
  • The anti-theft locking feature is standard
  • High-performance AdLED illumination provides 4200K temperature, a CRI>90, 17,000 lumens, and 100,000-hour life
  • 3 Filters (Plus Neutral) Include:
    • Red Free - Excludes red rays from the examination field for easy identification of veins, arteries, and nerve fibers
    • Cobalt - Used with fluorescent dye to view small lesions, abrasions, and foreign objects on the cornea
    • Polarizing - Virtually eliminates corneal reflection

• Two 3.5V Lithium-Ion Adtronic Rechargeable Battery Handles
  • C-sized handle with 2600 mAh rechargeable Li-ion battery
  • CNC machined from solid brass, the handle is chrome plated in black with a ribbed surface for a sure grip
  • Adtronic electronic rheostatic light intensity control provides infinite continuous control and an auto-off feature after 2 minutes
  • Bayonet instrument mount is compatible with all major brands of 3.5V instrument heads
  • The Lithium-Ion battery provides 50 hours of use with LED when charged for 24 hours. Up to 1200 charge cycles
  • Compatible also with the 3.5V Throat Illuminator Head (5426L) and 3.5V Dermascope Head (5450)*

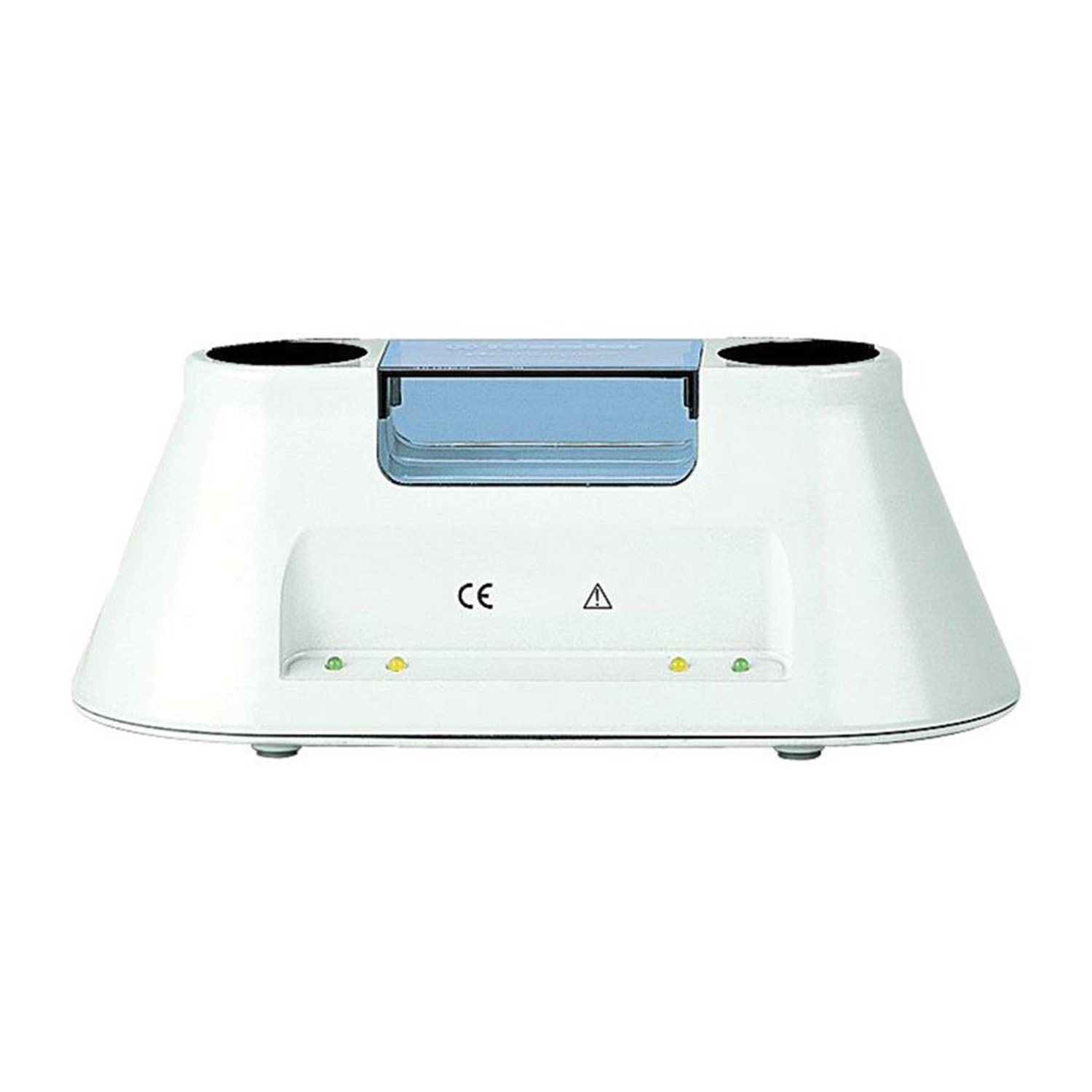

• One Desk Charger
  • Compact and portable
  • Holds up to two instrument handles and spare specula
  • Comes complete with a wall-mount bracket and hardware
  • The included reducing sleeve allows use with smaller “AA” sized handles
  • Colored LEDs indicate power to the unit and charging state
  • The storage compartment can accommodate a small selection of specula or spare lamps
  • Includes a universal power supply with a U.S. plug
  • The charging time is 3 hours

Available in Two Configurations:

• 5580L: PMV Otoscope and Coax Ophthalmoscope
• 55802L: PMV Otoscope and Coax Plus Ophthalmoscope

Warranty:

• Desk Charger, Instrument Heads, and Handles: 2 Years
• AdLED Lamp: Lifetime

*Please Note: The throat illuminator and dermascope heads are sold separately.
