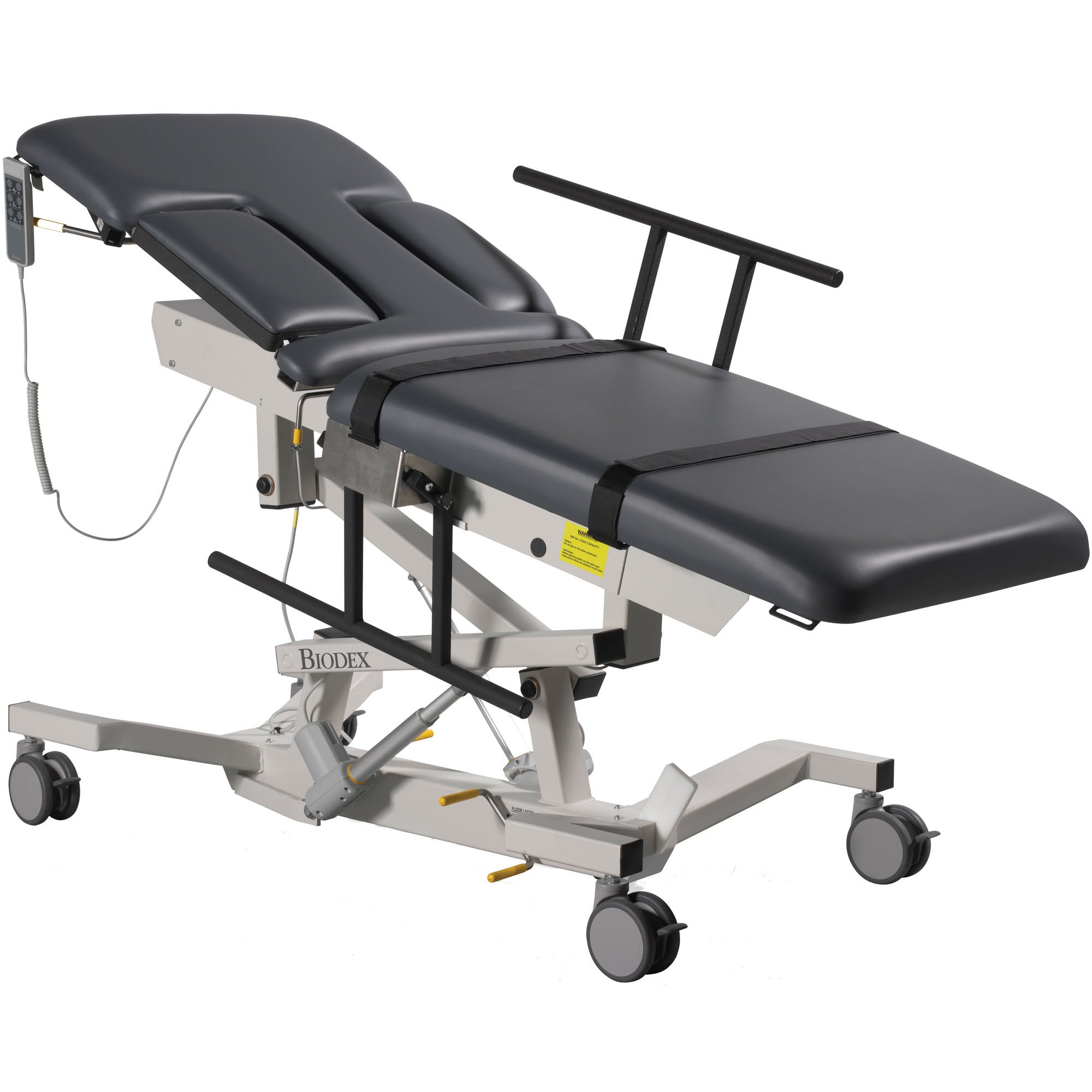

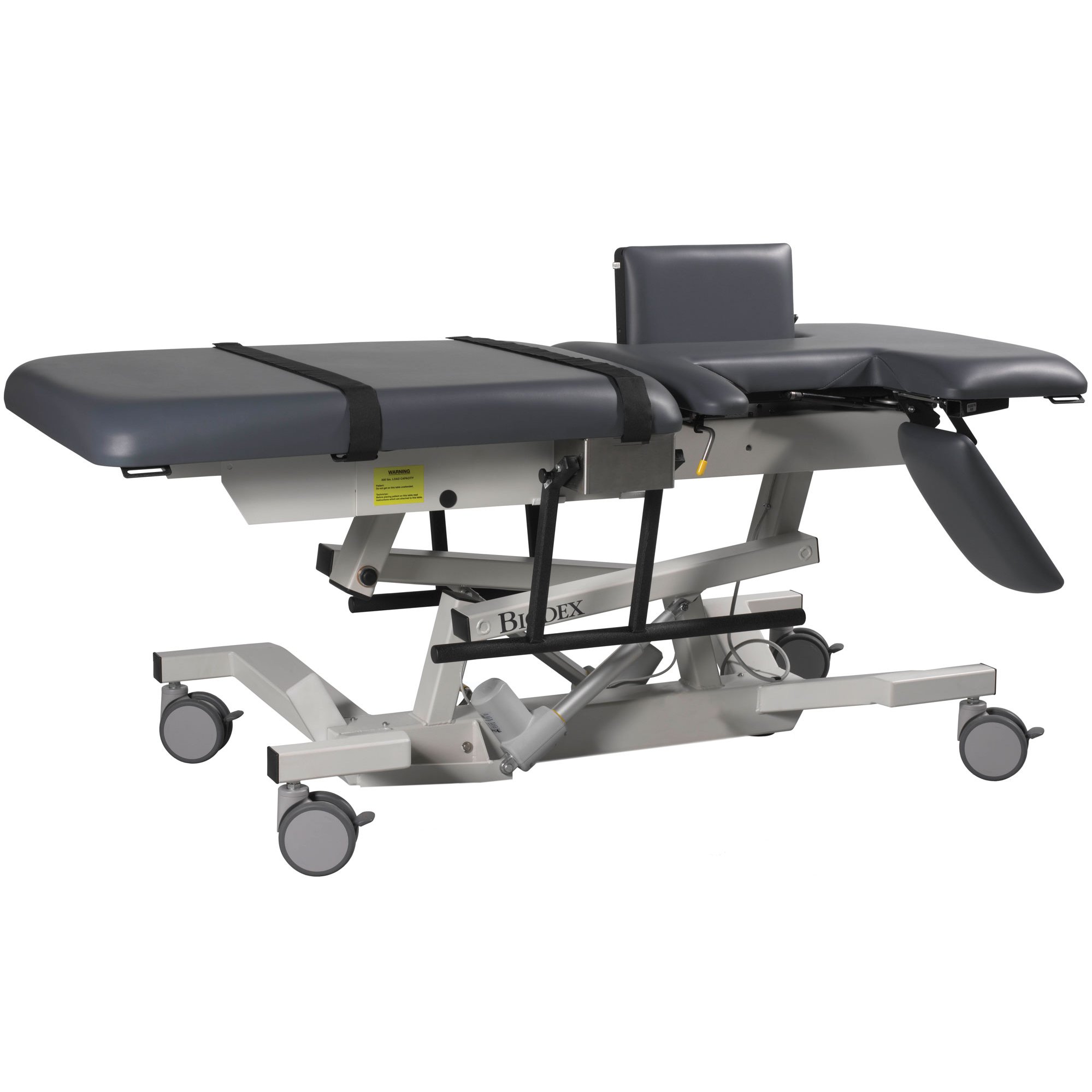

Biodex Econo Echocardiography Ultrasound Table 115 VAC
The Biodex Econo Echocardiography Table has the same ergonomic features as the industry-leading Biodex Echo Pro Echocardiography Ultrasound Table, but it's a more cost-effective alternative while preserving sonographer comfort and safety. Our optional accessories, such as folding side rails or headrest, allow you to customize the echocardiography table to match your department's needs. Best of all, our pricing is the lowest you'll find, and we offer fast and easy quotes to match the table to your specific requirements.
Product Description
The Econo Echocardiography table is based on the same platform as the Echo Pro. It has the same ergonomic features, keeping the safety of the sonographer in mind. To make it a more cost-effective alternative, it is offered without Trendelenburg positioning or the central floor-locking system.
The barrier between sonographer and patient is eliminated with the Econo Echocardiography Table, featuring an ergonomic design, which helps prevent musculoskeletal injury.

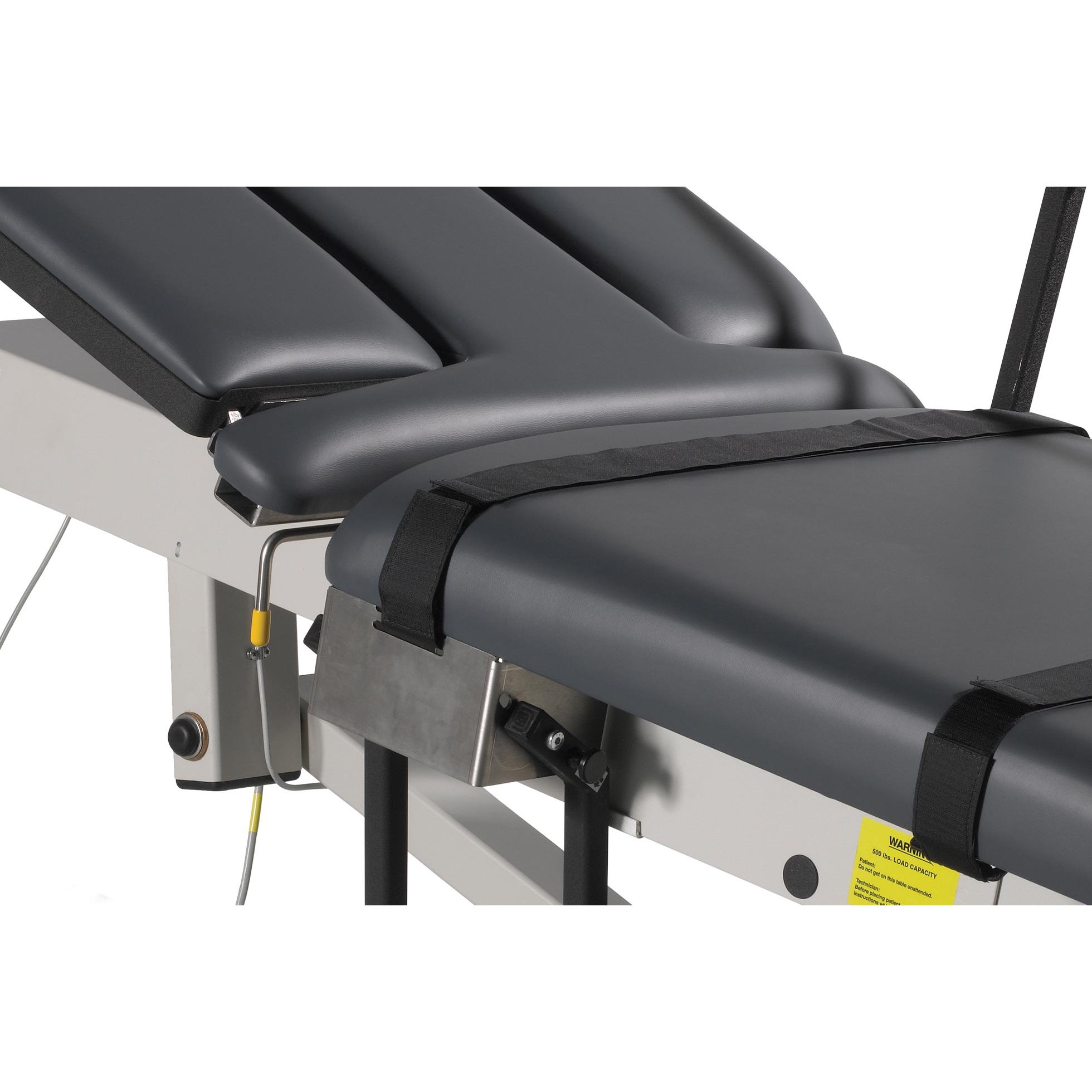

With the capability to release and return from either side of the table, the cardiac cushion drops down to reveal the industry’s largest scanning cutout providing open access to the patient’s left thorax area for an unobstructed, apical approach.
The Econo Echocardiography Table has many optional items to further improve sonographer comfort and safety. Choose what best suit your department’s specific needs. Side rails for closer patient access, an articulating scanning arm board, adjustable from 0 to 130-degrees and a headrest for easier thyroid and carotid access are all available.
Features:
- Accommodates Bariatric Patients
- Ergonomic design helps prevent musculoskeletal injuries - comfortable shoulder, arm and hand positions when scanning
- Allows seated or standing work positions
- Extra wide top with 500-lb patient capacity, suitable for bariatric patients
- Cardiac drop-down cushion, allows release and return from either side of table
- Industry’s largest cardiac scanning cutout - 9.5" W x 15.75" L
- Height range down to 23" accommodates wheelchair transfers and those with ambulatory difficulties

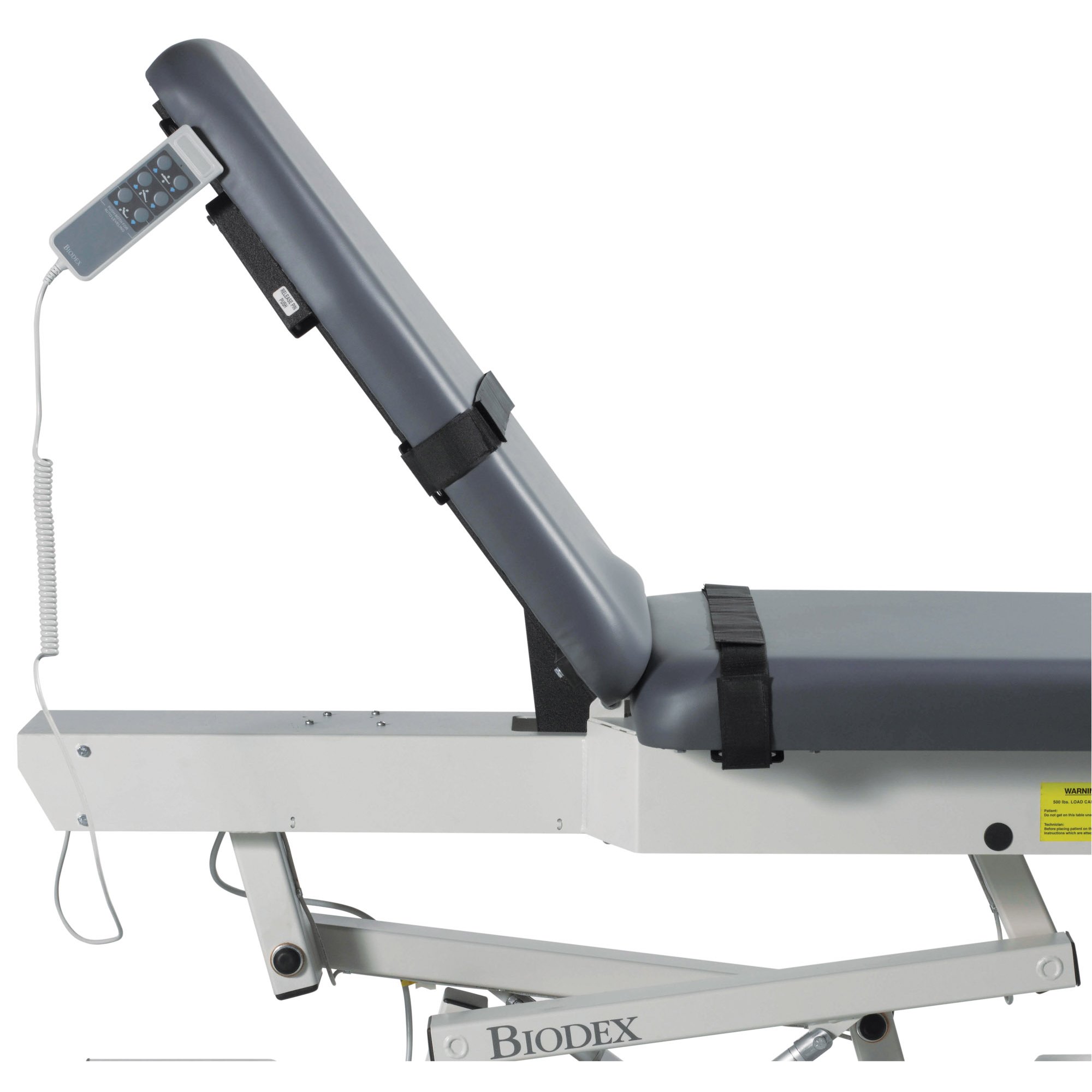

- Fowler positioning, 0-80 degrees, redesigned to accommodate natural body extension and sitting position without slide or shift
- Motorized height and Fowler positioning
- Naugahyde®, antimicrobial mattress cover with Advanced
- BeautyGard® provides protection against bacteria
- Activates table positions with the included hand controller
Optional table accessories include Paper Dispenser with Cutter Strap (058-611), Folding Side Rails (058-633), Vascular Articulating Scanning Arm Board (058-736), IV Pole (058-737), and Headrest (058-738) are installed by the customer. Some images are shown with optional accessories.
Specifications:
- Overall Dimensions: 73" L x 30" W; 35" W with optional side rails
- Height Adjustable: 23" to 39"

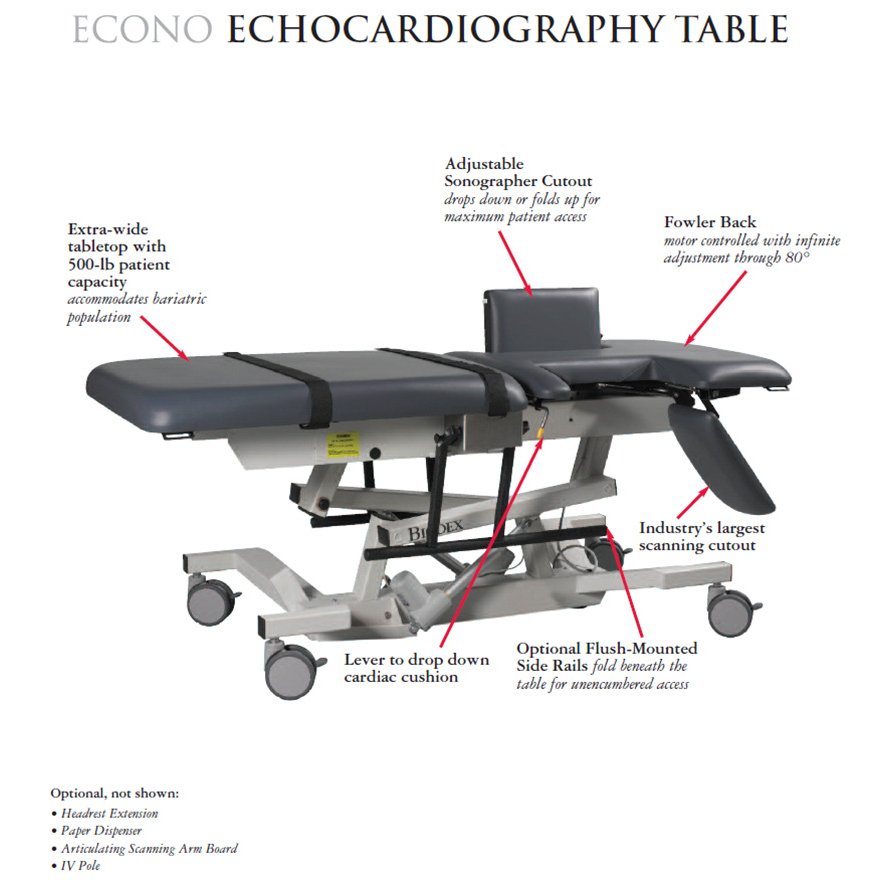

- Tabletop: Two primary sections: Torso section features sonographer and patient cutouts with Fowler positioning, and Lower Body section remains fixed
- Cardiac Scanning Cutout: 9.5" W x 15.75" L0 cm) - Drop-down cushion releases from either side of the table
- Sonographer Cutout: 8" W x 14.75" L - Adjustable sonographer cushion drops down or folds up for maximum access to the patient
- Mattress: Torso section 2" thick, lower body section 3" thick; Naugahyde®, antimicrobial mattress cover with Advanced BeautyGard® provides protection against bacteria
- Upholstery Color: Graphite
- Motions: Fowler Back: 0° to 80° infinitely adjustable
- Controls: Hand Control (includes): Activates height and Fowler back
- Wheels: 5" Individual locking swivel casters
- Patient Restraints: Two body straps
- Finish: Powder coat
- Patient Capacity: 500 lb; weight tested to four times the patient load rating
- Product Weight: 335 lb
- Power: 115 VAC
- Certifications: ETL and cETL Listed to UL60601-1 and CAN/CSA C22.2 No. 601.1-M90 and EN60601-1 standards
Please Note:
About this Brand
New York-based, ISO-certified Biodex Medical Systems offers a range of health-care products, particularly in medical imaging. Biodex ultrasound exam tables, C-arm imaging tables, and non-magnetic stretchers reflect its commitment to manufacture products that are exceptionally functional, durable and user-friendly. Its state-of-the-art 120,000 square foot manufacturing facility follows strict quality control guidelines, empowering Biodex users to focus on the patient while enjoying true ergonomic designs.
Specifications
| Manufacturer | Biodex |
|---|---|
| Actual Product Weight | 335 |
| Overall Height | 39 |
| Overall Length | 73 |
| Overall Width | 30 |
| Weight Capacity | 500 |
| Country of Manufacture | United States |
| Item Ships From | New York |
| GSA Contract Number | 36F79724D0011 |
