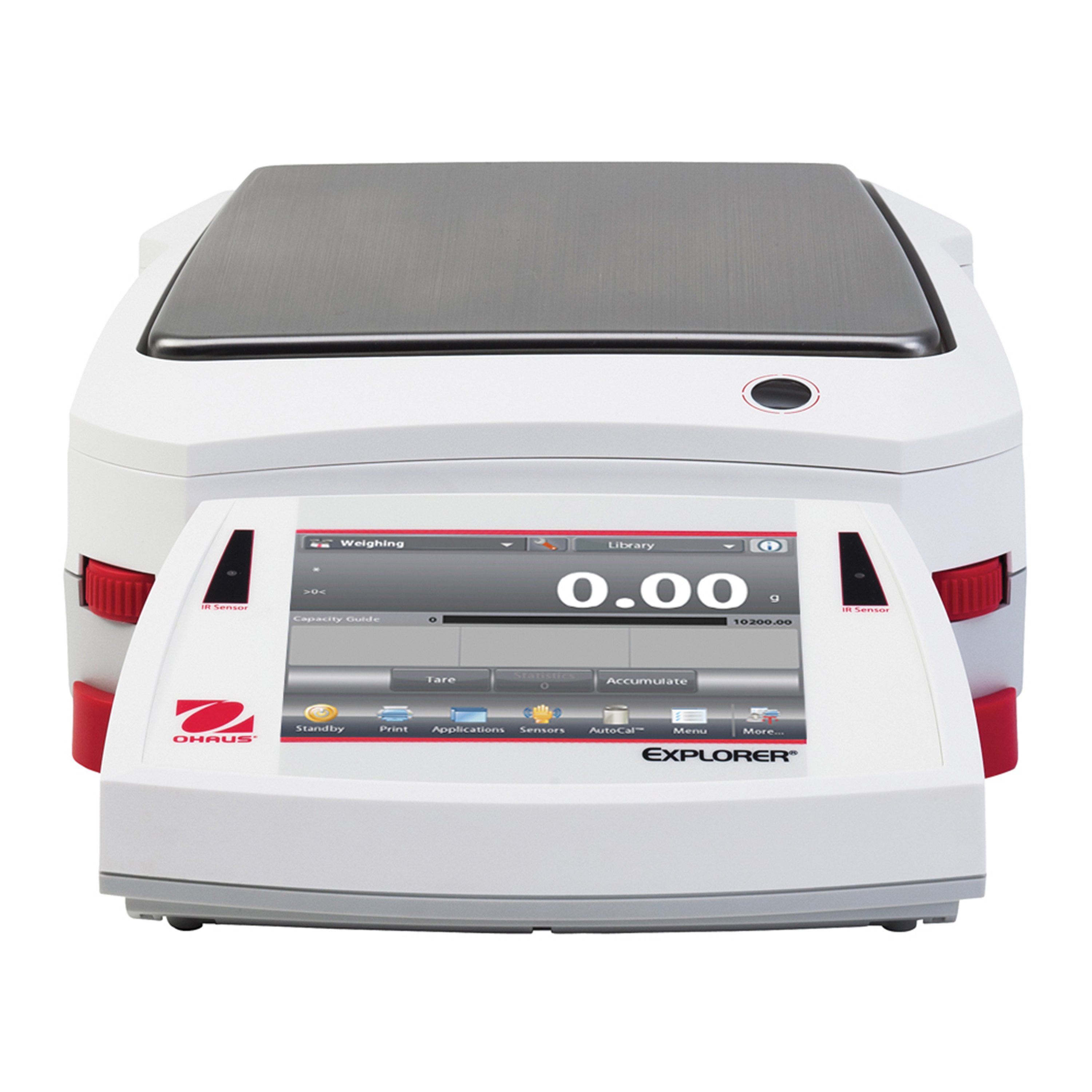

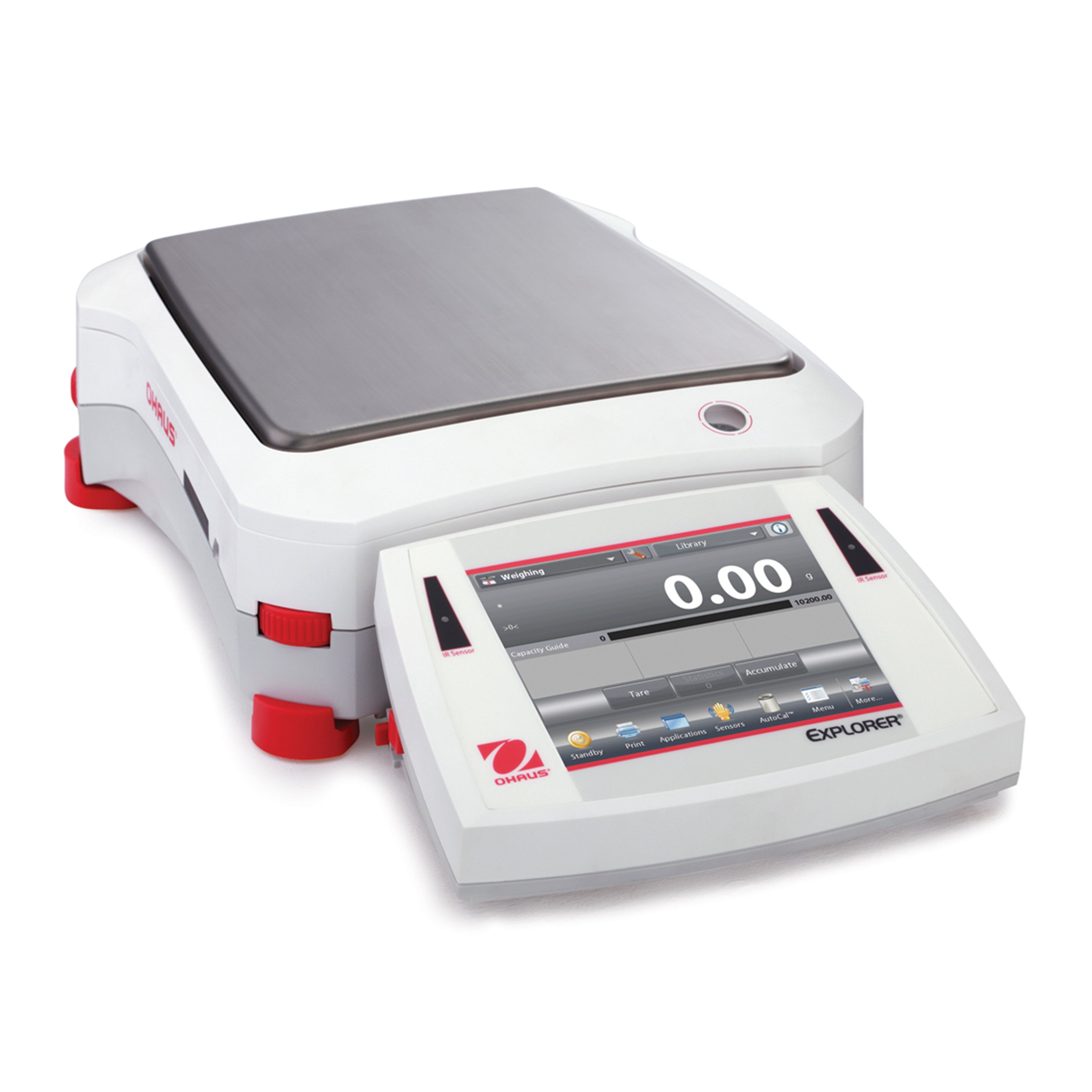

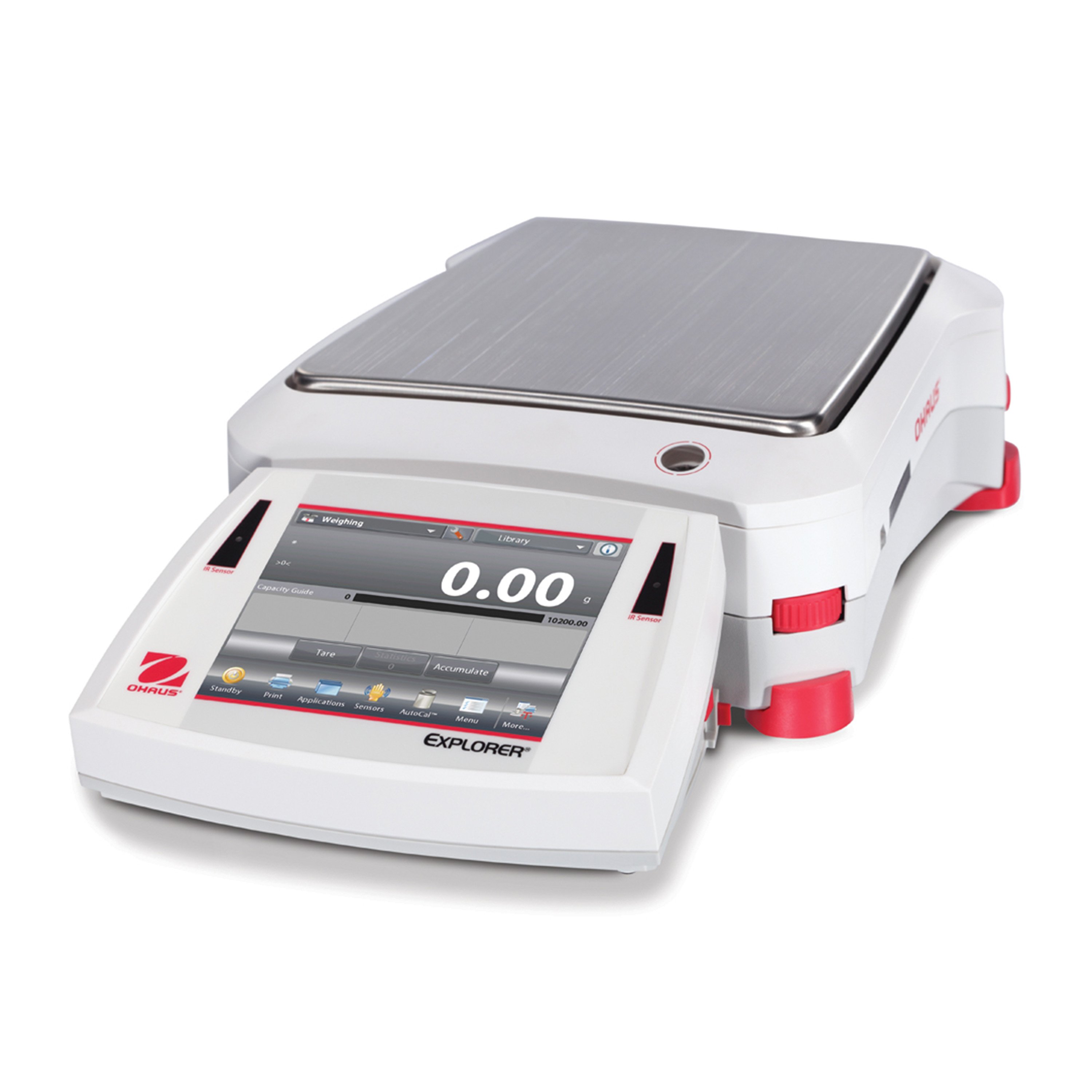

OHAUS Explorer™ Precision Balance without Draftshield, NTEP Certified
Product Description
The OHAUS Explorer™ Precision Balance without Draftshield, NTEP Certified combines modern features and design elements to offer unmatched functionality in a line of high-performance balances unlike any other on the market and simplify even the most complex laboratory measurements.
Features:

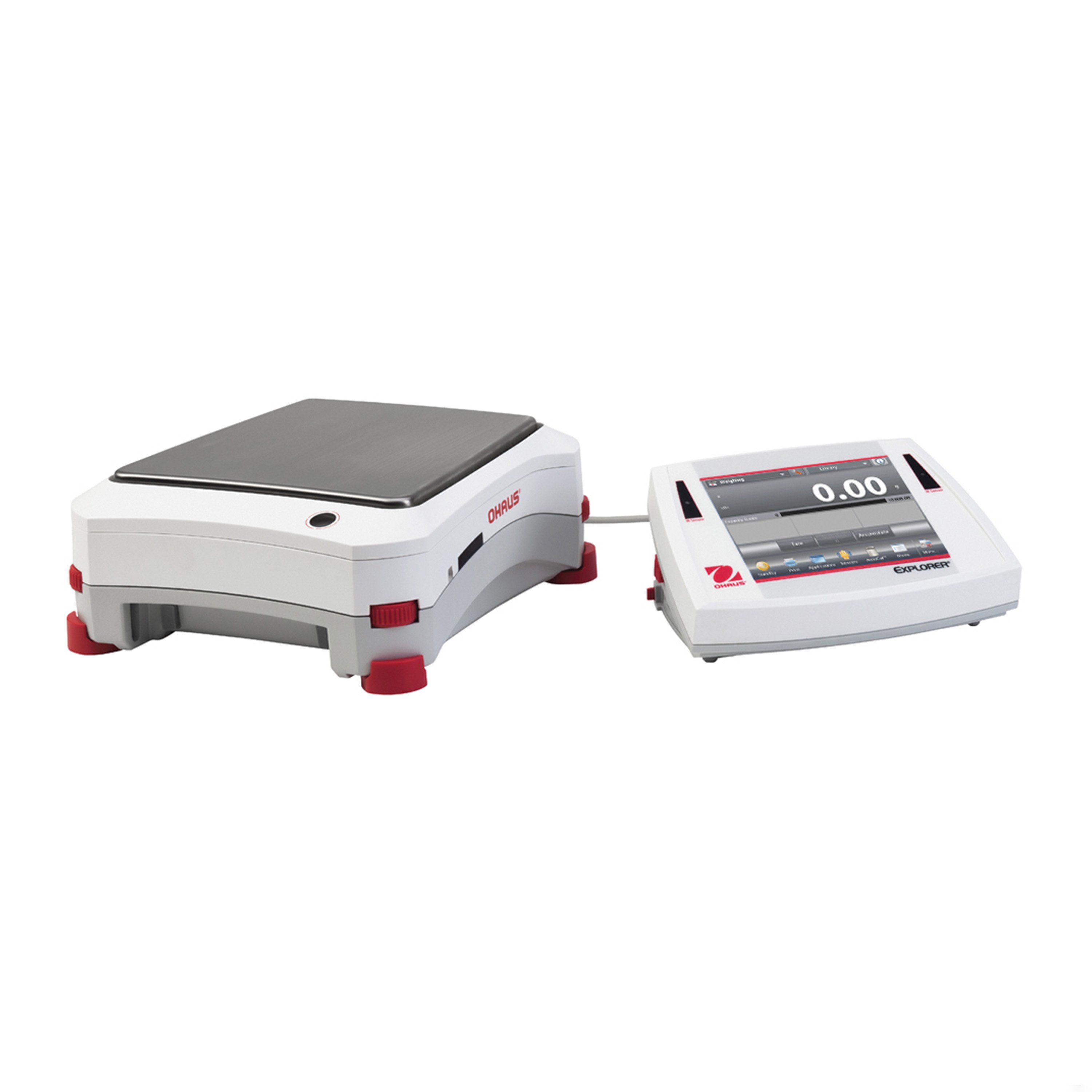

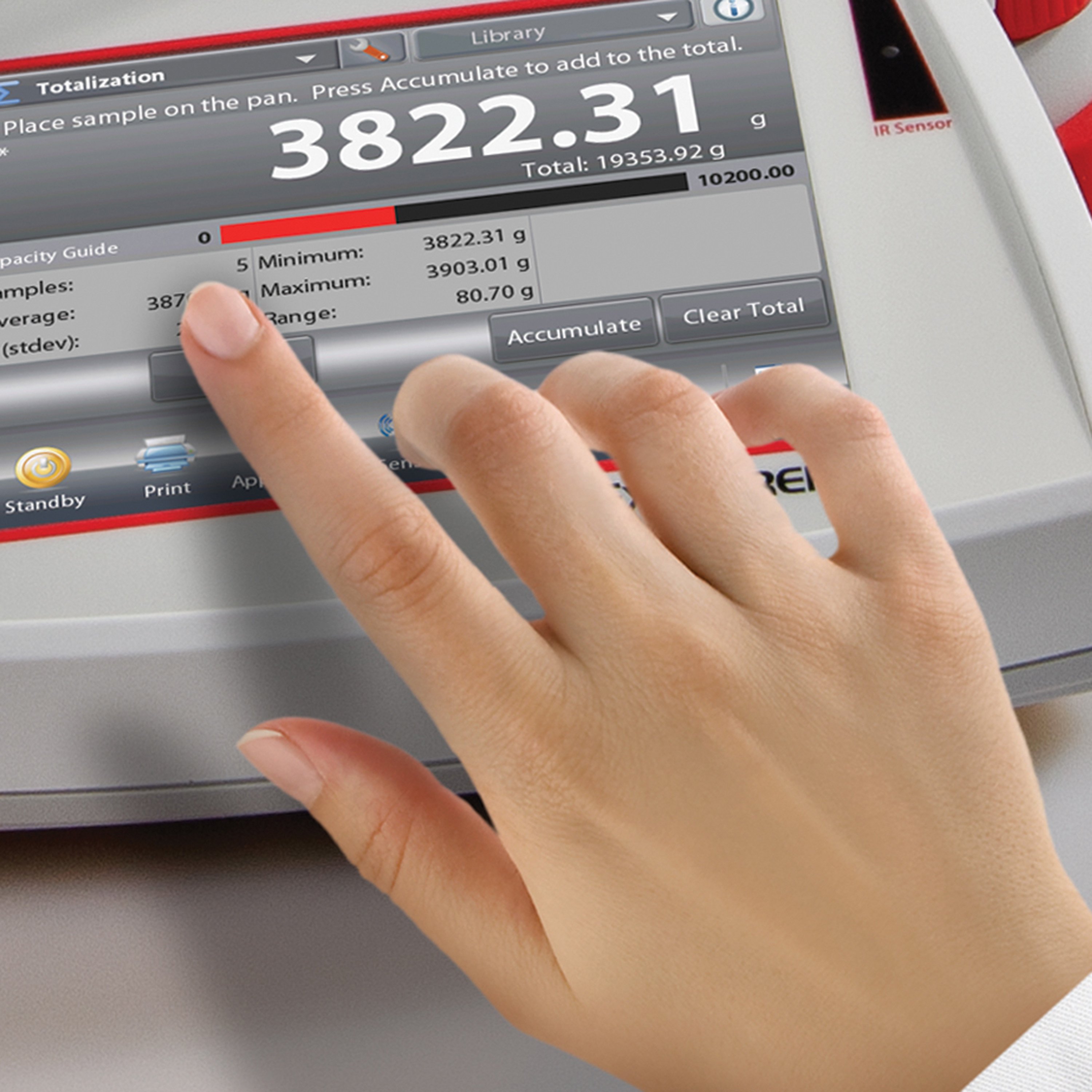

- Detachable terminal with a large color touchscreen
- Built-in repeatability test evaluates balance performance and determines the minimum weight for high-accuracy applications
- Internal weighing mode library can allow saving and loading of weighing mode configurations
- An intuitive user interface with an internal database can be used to store, manage, and retrieve application and system data effectively
- Four-level user management with password protection, an un-editable system log, and a high level of configurability make Explorer balances well-suited for regulated applications
- Four touchless sensors enable hands-free operation for zeroing, printing, calibration, taring, automated draft shield doors, and other selectable functions
- Built-in real-time clock ensures that the data captured is contemporaneous
- Includes an AC Adapter, RS-232, and USB
- Calibration
- AutoCal™ - An automatic internal calibration that eliminates the need for manual recalibration, ensuring precision and reliability
- External Calibration - Traditional calibration in which the operator manually calibrates the balance with their choice of calibration weight value to ensure accuracy available on every model
- Available in 2200, 4200, 6200, and 10200 g Capacity
Technical Specification:
- Pan Size: 7.48" L x 7.87" W
- Pan Construction: Stainless steel
- Display: Full-color 5.7" VGA, touchscreen
- Auxiliary Display Model: Available as an Accessory

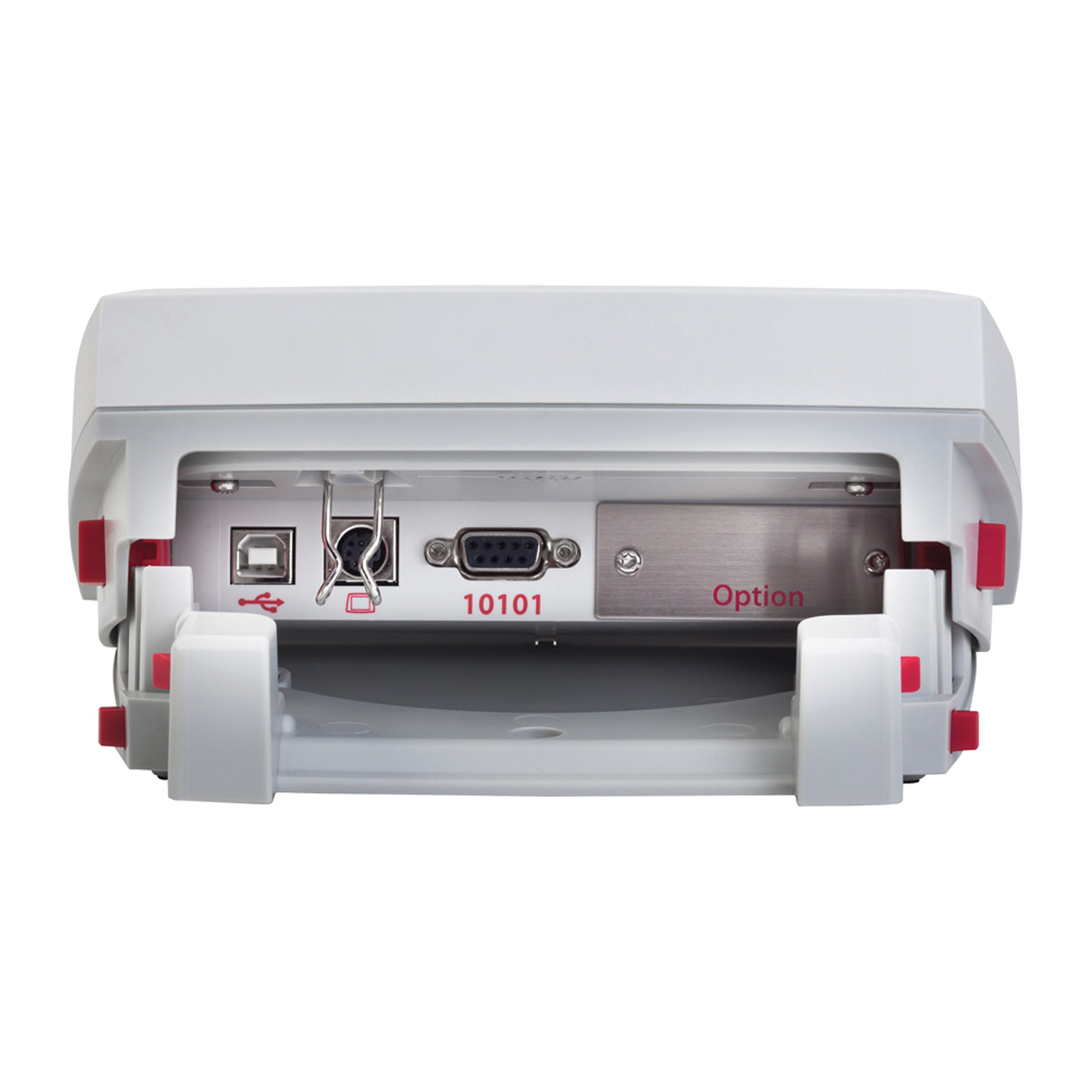

- Communication: Ethernet (optional), USB, and RS-232
- Draftshield: Included
- In-use Cover: Included
- Legal for Trade: NTEP Certified; Measurement Canada Approved

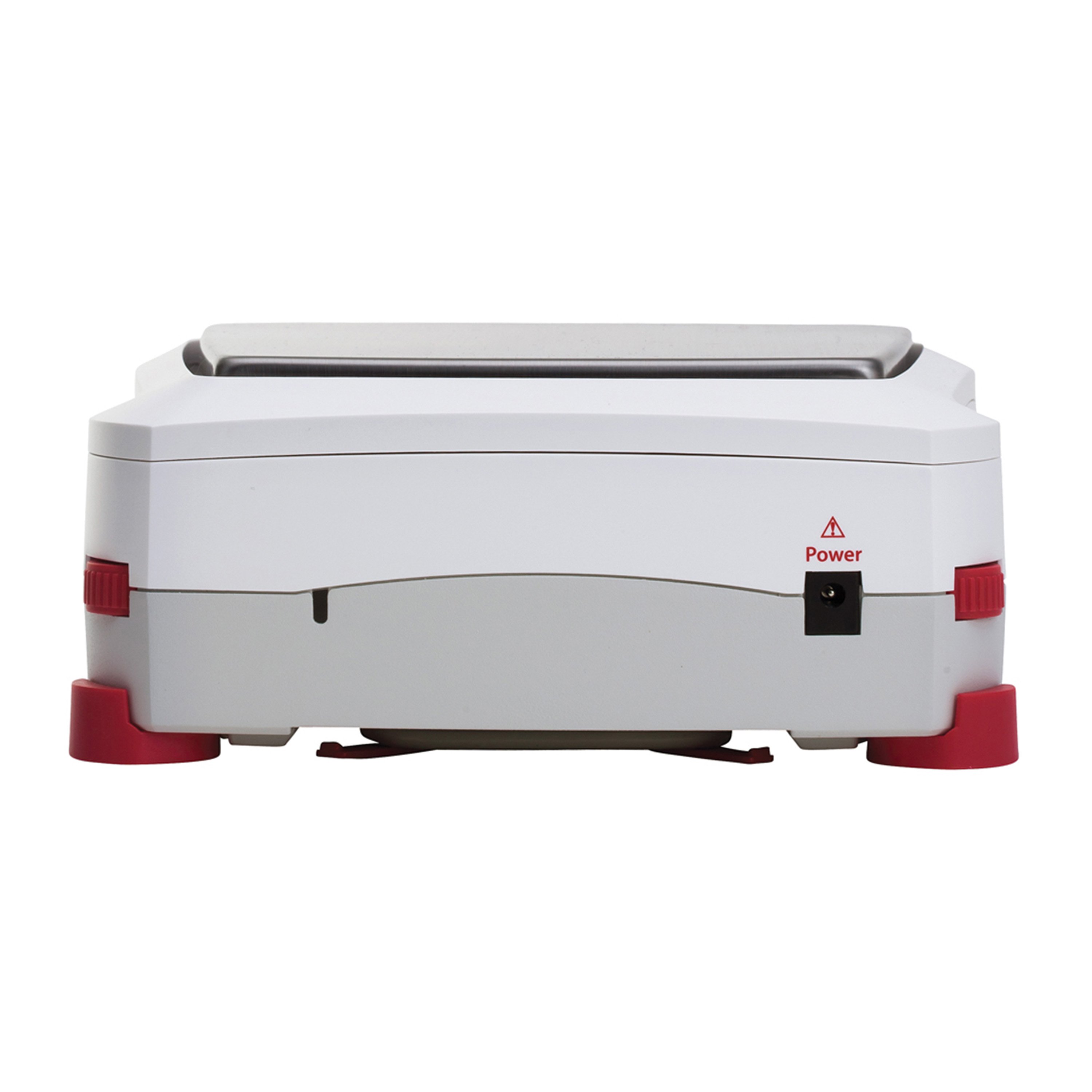

- Power Supply: AC Adapter Input: 100-240 VAC 0.6A 50-60 Hz
- Tare Range: To capacity by subtraction
- Operating Temperature Range: 10°C to 30°C
- Operating Humidity Range: 80% max up to 30°C decreasing linearly to 50% at 40°C, non-condensing
- Storage Conditions: 60°C at 10% to 90% relative humidity, non-condensing
- Overall Dimensions: 15.5" L x 3.9" H x 9.1" W
- Actual Product Weight: 9.5 lbs
Model Comparison:
| Model | EX2202N/E | EX4202N | EX4202N/E | EX6202N | EX6202N/E | EX10202N | EX6201N | EX6201N/E | EX10201N |
| SKU | 30553846 | 83021359 | 30553847 | 30553888 | 30553889 | 83021364 | 30553890 | 30553891 | 83021367 |
| Internal Calibration (AutoCal™) | - | ✔ | - | ✔ | - | ✔ | ✔ | - | ✔ |
| External Calibration | ✔ | - | ✔ | - | ✔ | - | - | ✔ | - |
| Capacity | 2200 g | 4200 g | 6200 g | 10200 g | 6200 g | 10200 g | |||
| Accuracy (Class) | II | I | II | I | |||||
| Verification Interval e | 0.1 g | ||||||||
| Readability d | 0.01 g | 0.1 g | |||||||
| Repeatability (sd.), ≤ 5% of Full Load | 0.008 g | 0.08 g | |||||||
| Repeatability (sd.), 5% of Full Load to Full Rang | 0.01 g | 0.1 g | |||||||
| Linearity Deviation, Typical | ± 0.006 g | ± 0.06 g | |||||||
| Linearity Deviation | ± 0.02 g | ± 0.2 g | |||||||
| Stabilization Time | ≤ 1 second | ||||||||
| Sensitivity Drift | 3 ppm / °C | 5 ppm / °C | 3 ppm / °C | ||||||
| Min-Weight (Typical) (USP, K= 2, U=0,10%) | 16 g | 160 g | |||||||
| Min-Weight (Optimal) (USP, K=2, U=0,10%, SRP ≤ 0, 41 d)* | 8.2 g | 82 g | |||||||
| Min-Weight (Typical) (USP, K= 2, U= 1%) | 1.6 g | 16 g | |||||||
| Weighing Units, Certified Models | g, kg, oz, lb, CT, ozt, grain, dwt | ||||||||
Specifications
| Manufacturer | Ohaus Corporation |
|---|---|
| Latex Free | Yes |
| Actual Product Weight | 9.5 lbs |
| Overall Height | 3.9" |
| Overall Length | 15.5" |
| Overall Width | 9.1" |
| Certifications | NTEP Certified |
| Proposition 65 Warning | Yes |
| Country of Manufacture | China |
| Item Ships From | Ohio |
