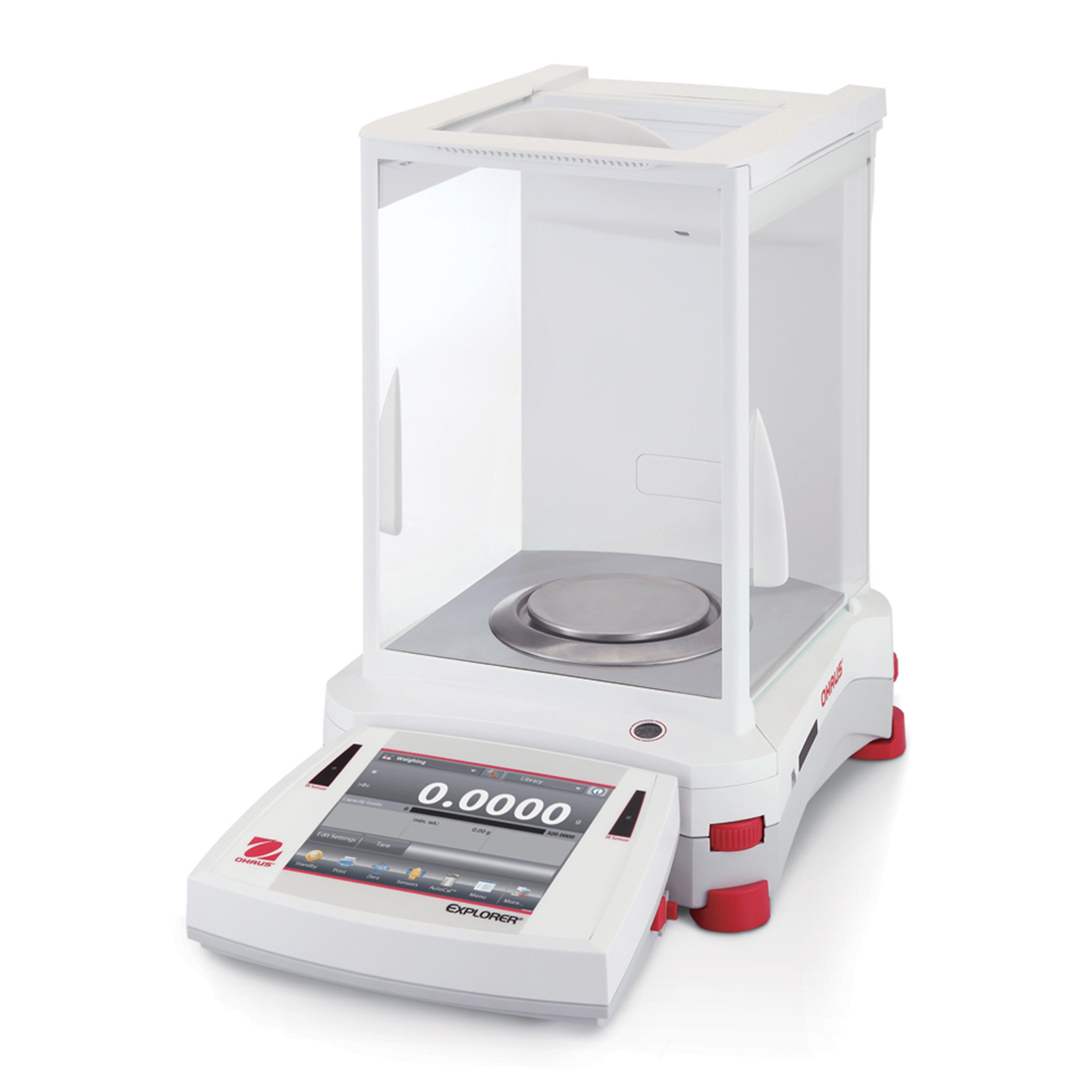

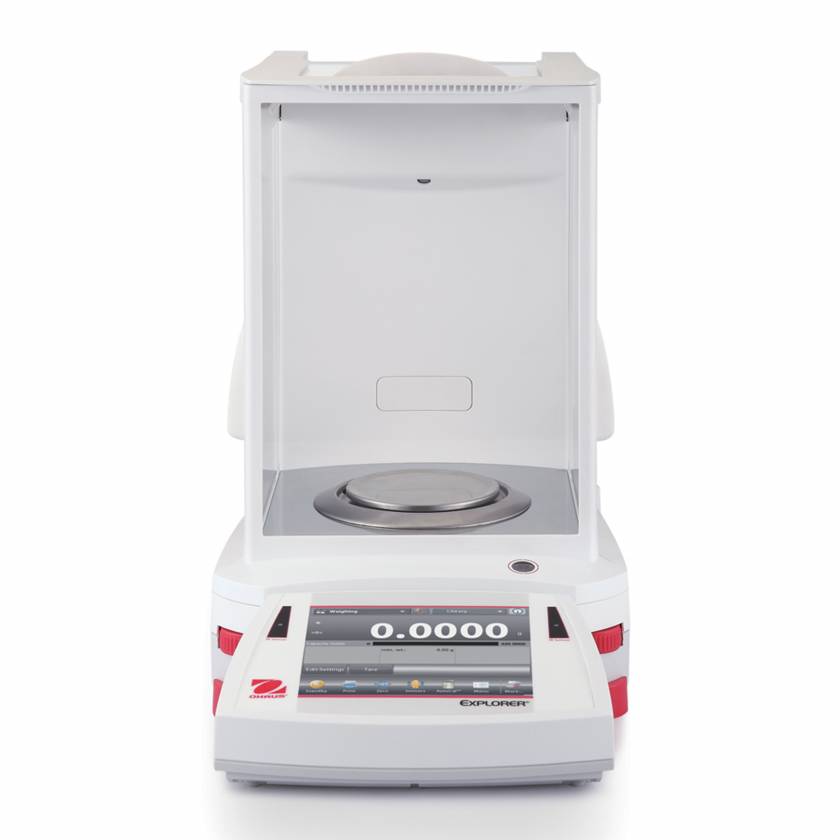

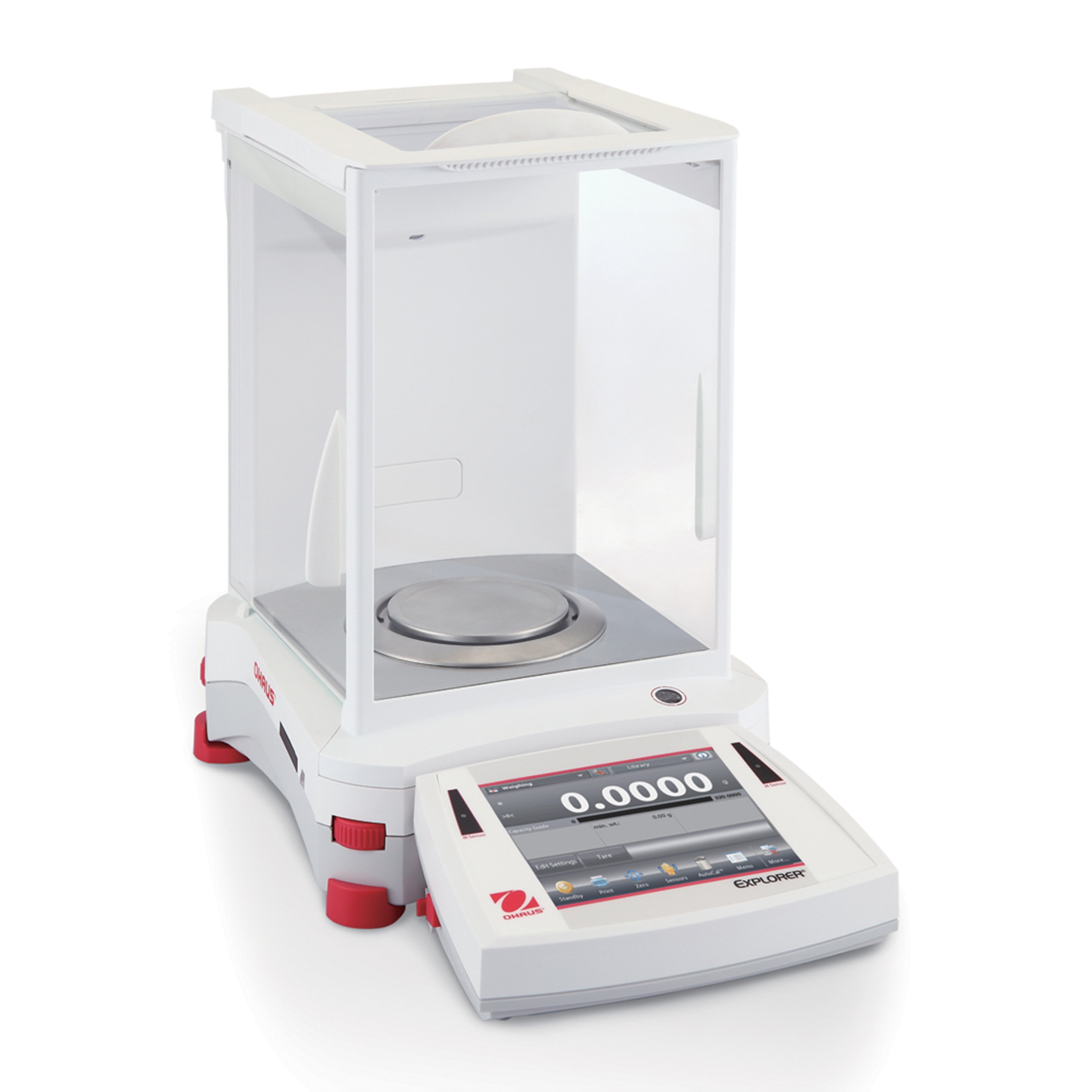

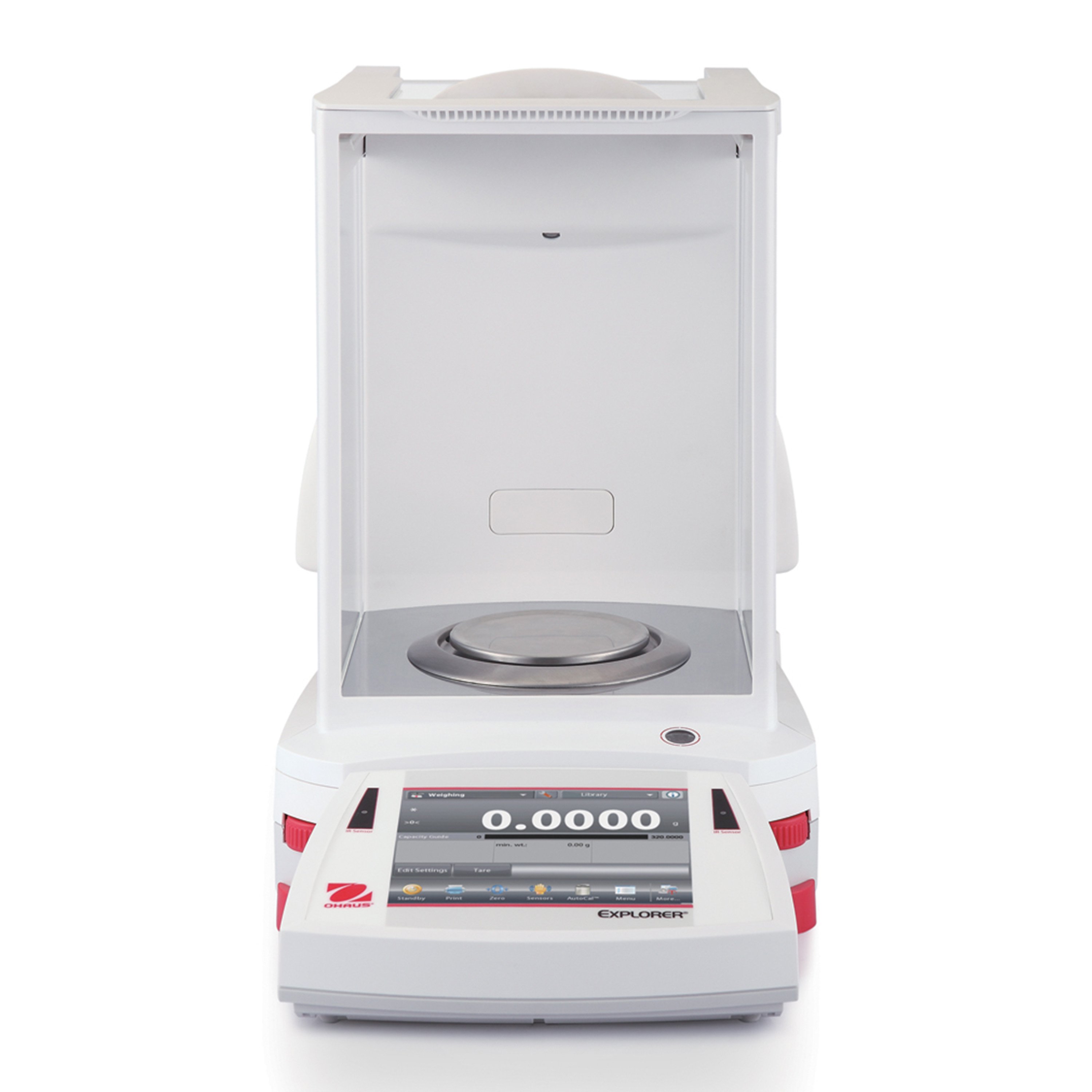

OHAUS Explorer™ Precision Balance with Draftshield

The OHAUS Explorer™ Precision Balance with Draftshield combines modern features and design elements to offer unmatched functionality in a line of high-performance balances unlike any other on the market and simplify even the most complex laboratory measurements.

Features:

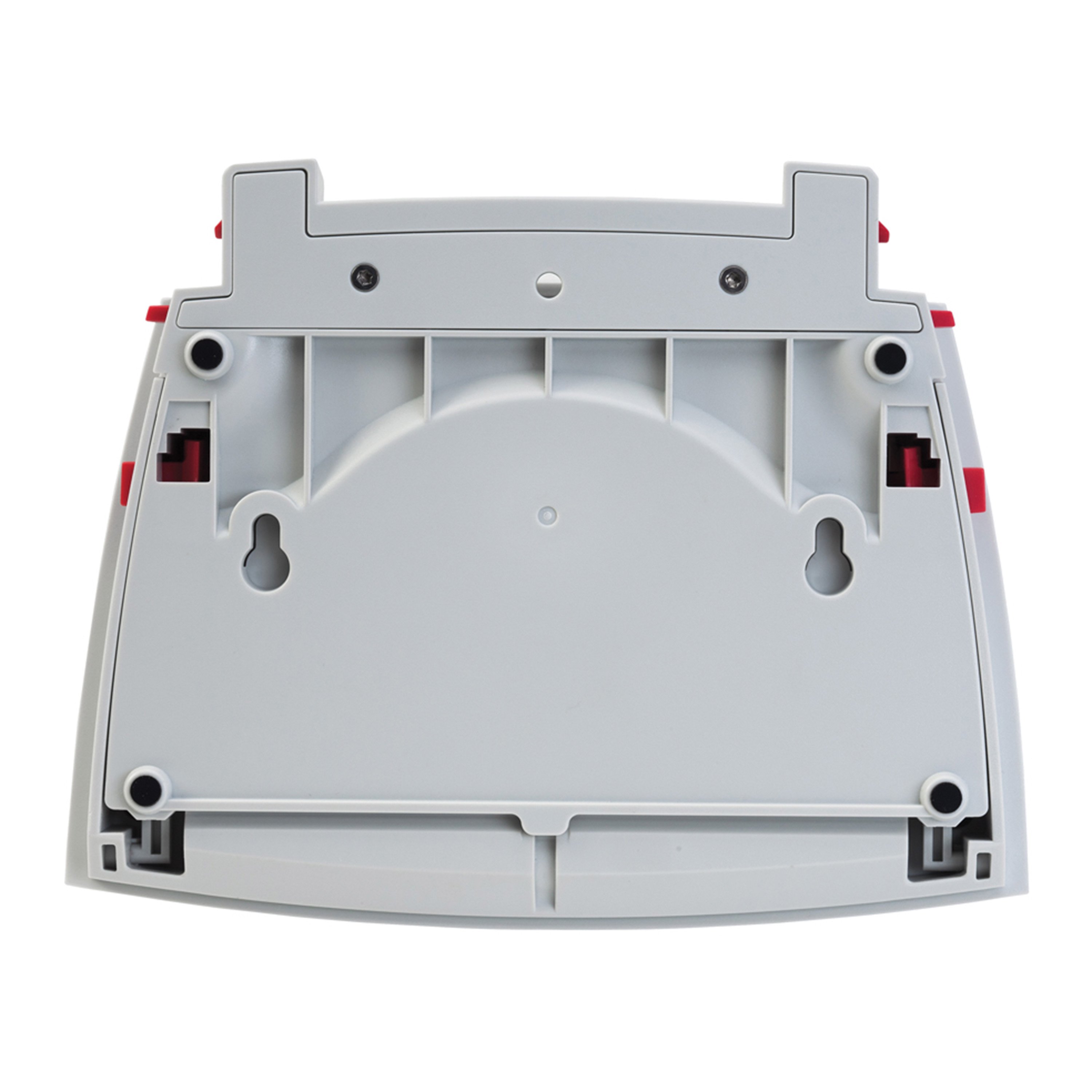

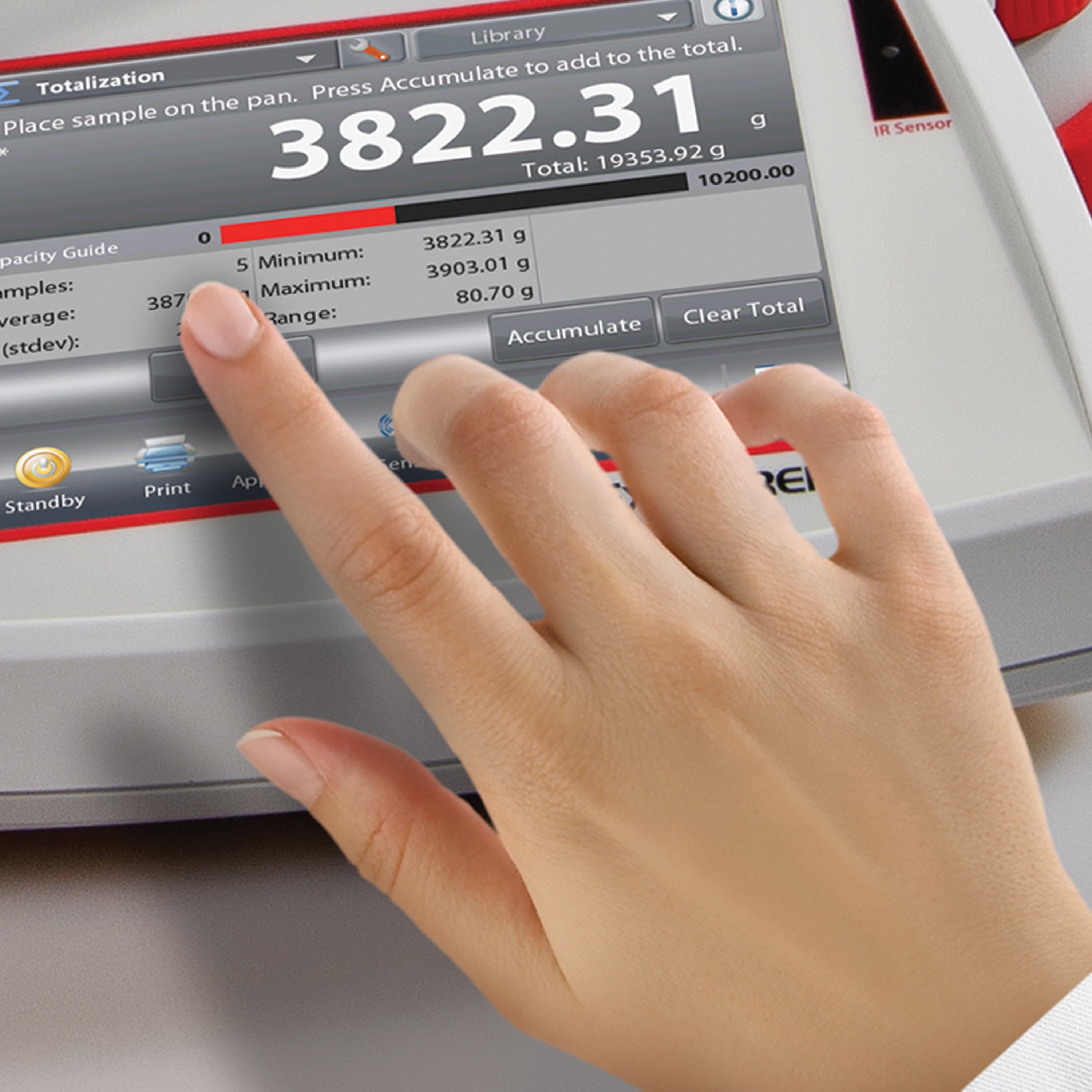

• Detachable terminal with a large color touchscreen
• Built-in repeatability test evaluates balance performance and determines the minimum weight for high-accuracy applications
• Internal weighing mode library can allow saving and loading of weighing mode configurations
• An intuitive user interface with an internal database can be used to store, manage, and retrieve application and system data effectively
• Four-level user management with password protection, an un-editable system log, and a high level of configurability make Explorer balances well-suited for regulated applications
• Four touchless sensors enable hands-free operation for zeroing, printing, calibration, taring, automated draft shield doors, and other selectable functions
• Draftshield chamber light for low-lighting environments
• Built-in real-time clock ensures that the data captured is contemporaneous

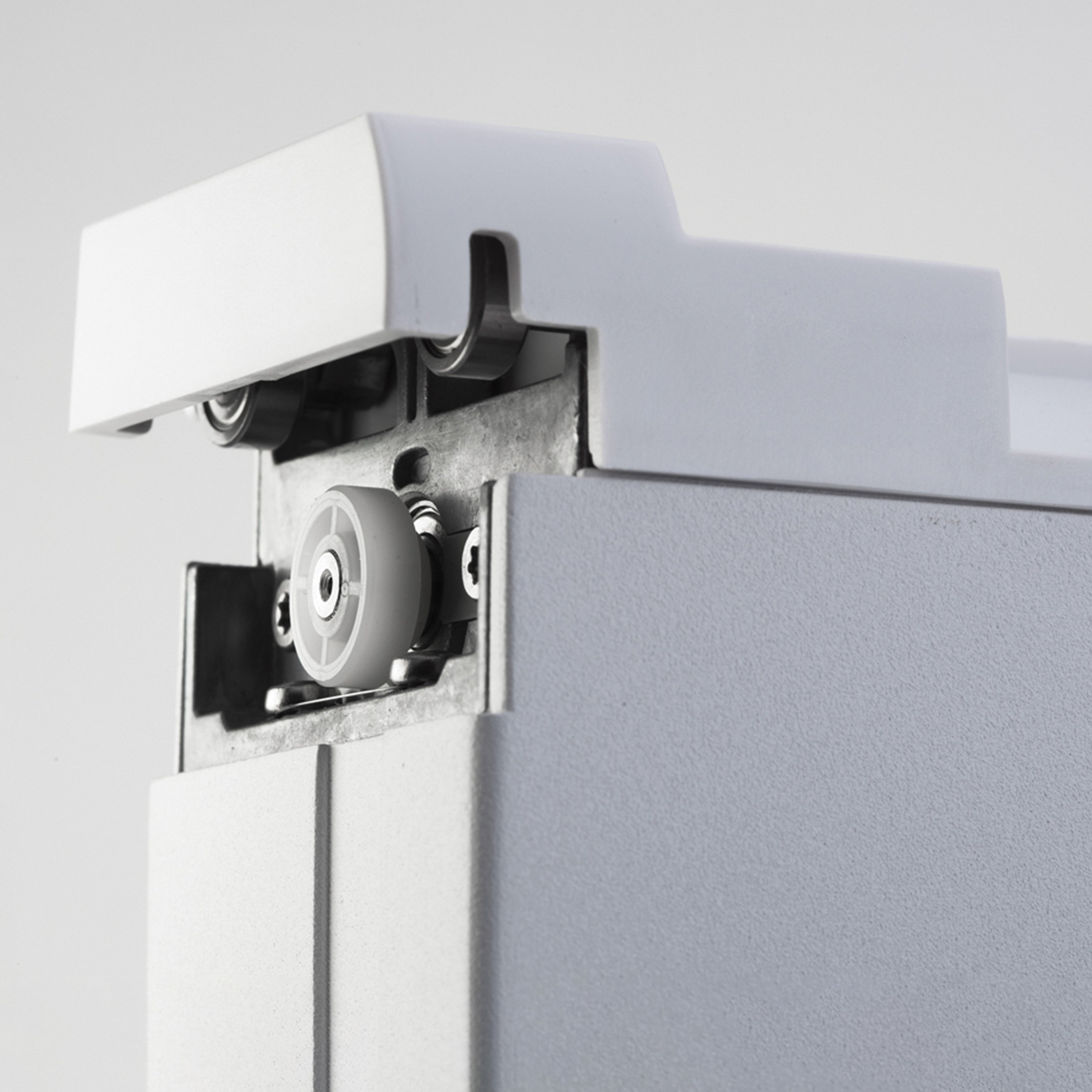

• Slide doors seamlessly glide on top-mounted bearings
• Antistatic-coated glass helps dissipate static charges in the weighing chamber which could adversely affect the weighing results

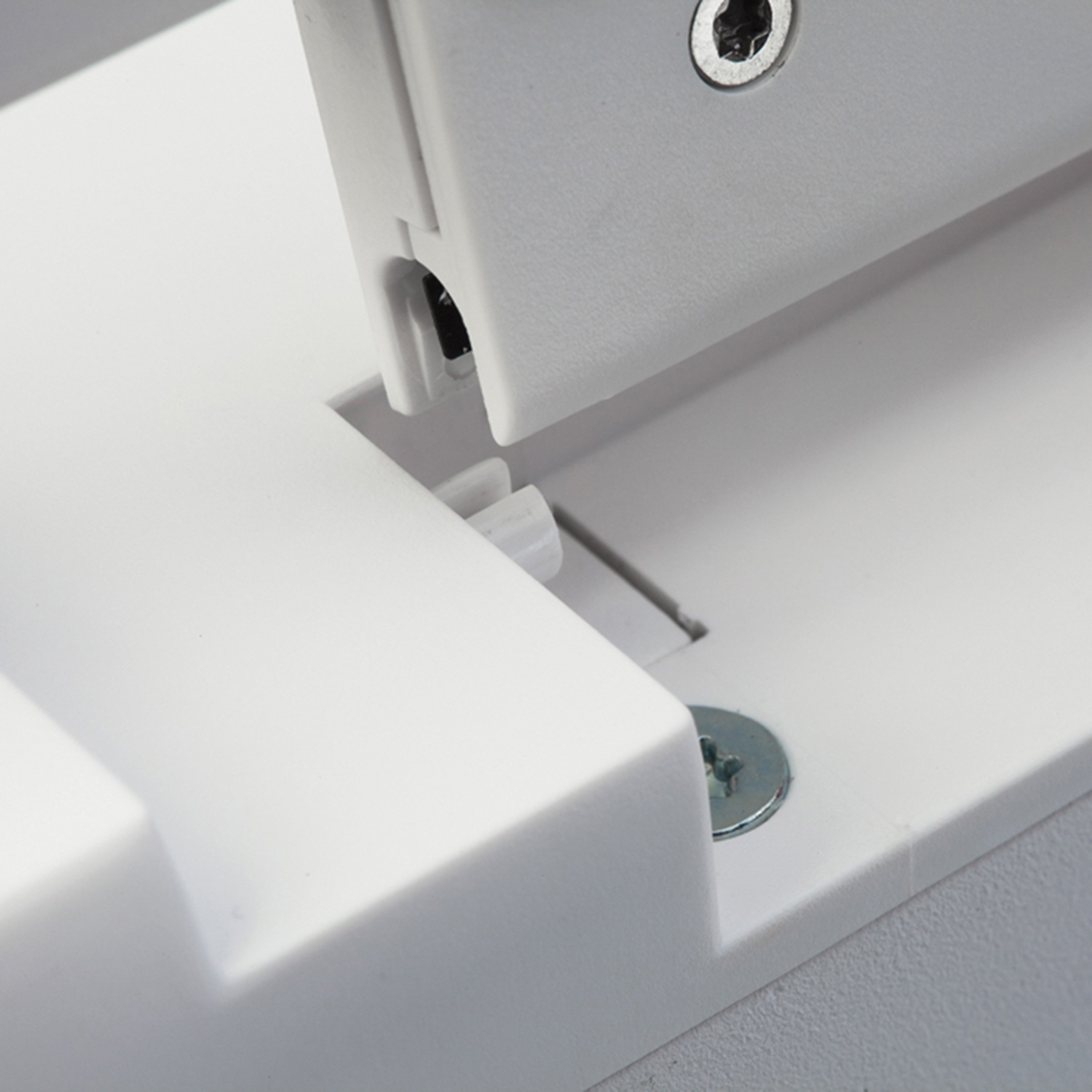

• Two versatile entry options; Flipping the top door and sliding the glass panel open to access the weighing chamber
• Expansive side entry 6.3" x 9.4" allows users to freely place and remove large weigh boats or other large vessels in the weighing chamber

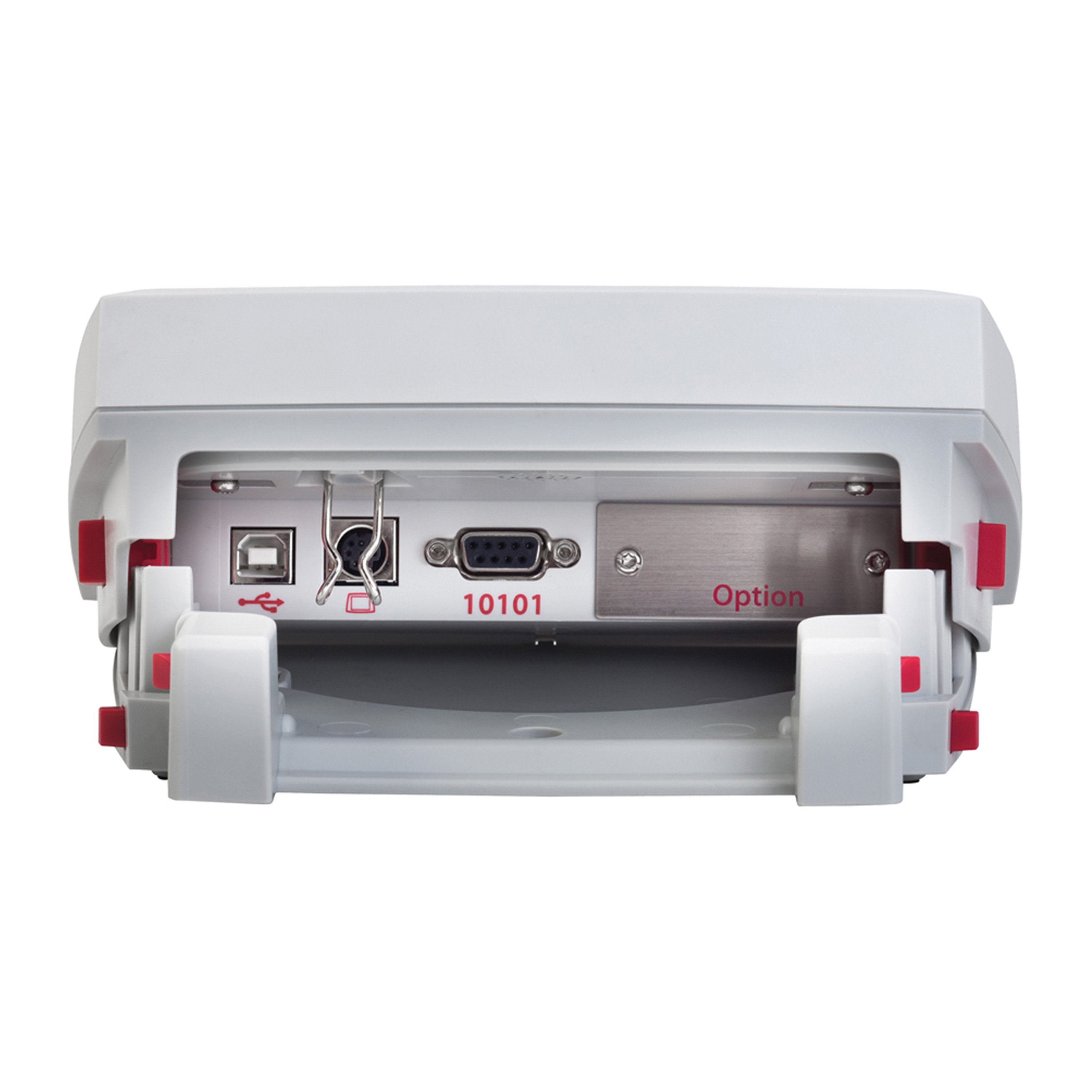

• Includes an AC Adapter, RS-232, and USB
• Calibration
  • AutoCal™ - An automatic internal calibration that eliminates the need for manual recalibration, ensuring precision and reliability
  • External Calibration - Traditional calibration in which the operator manually calibrates the balance with their choice  of calibration weight value to ensure accuracy available on every model
• Available in 220, 420, 620, and 1100 g Capacity

Technical Specification:

• Pan Size: Ø 5.1"
• Pan Construction: Stainless steel
• Display: Full-color 5.7" VGA, touchscreen
• Auxiliary Display Model: Available as an Accessory
• Communication: Ethernet (optional), USB, and RS-232
• Draftshield: Included
• In-use Cover: Included
• Power Supply: AC Adapter Input: 100-240 VAC 0.6A 50-60 Hz
• Tare Range: To capacity by subtraction
• Units of Measurement: Singapore Tael, Ounce Troy, Pennyweight, Grain, Kilogram, Tical, Custom, Milligram, Momme, Newton, Baht, Taiwan Tael, Gram, Hong Kong Tael, Pound, Tola, Mesghal, Carat, Ounce
• Operating Temperature Range: 10°C to 30°C
• Operating Humidity Range: 80% max up to 30°C decreasing linearly to 50% at 40°C, non-condensing
• Storage Conditions: 60°C at 10% to 90% relative humidity, non-condensing

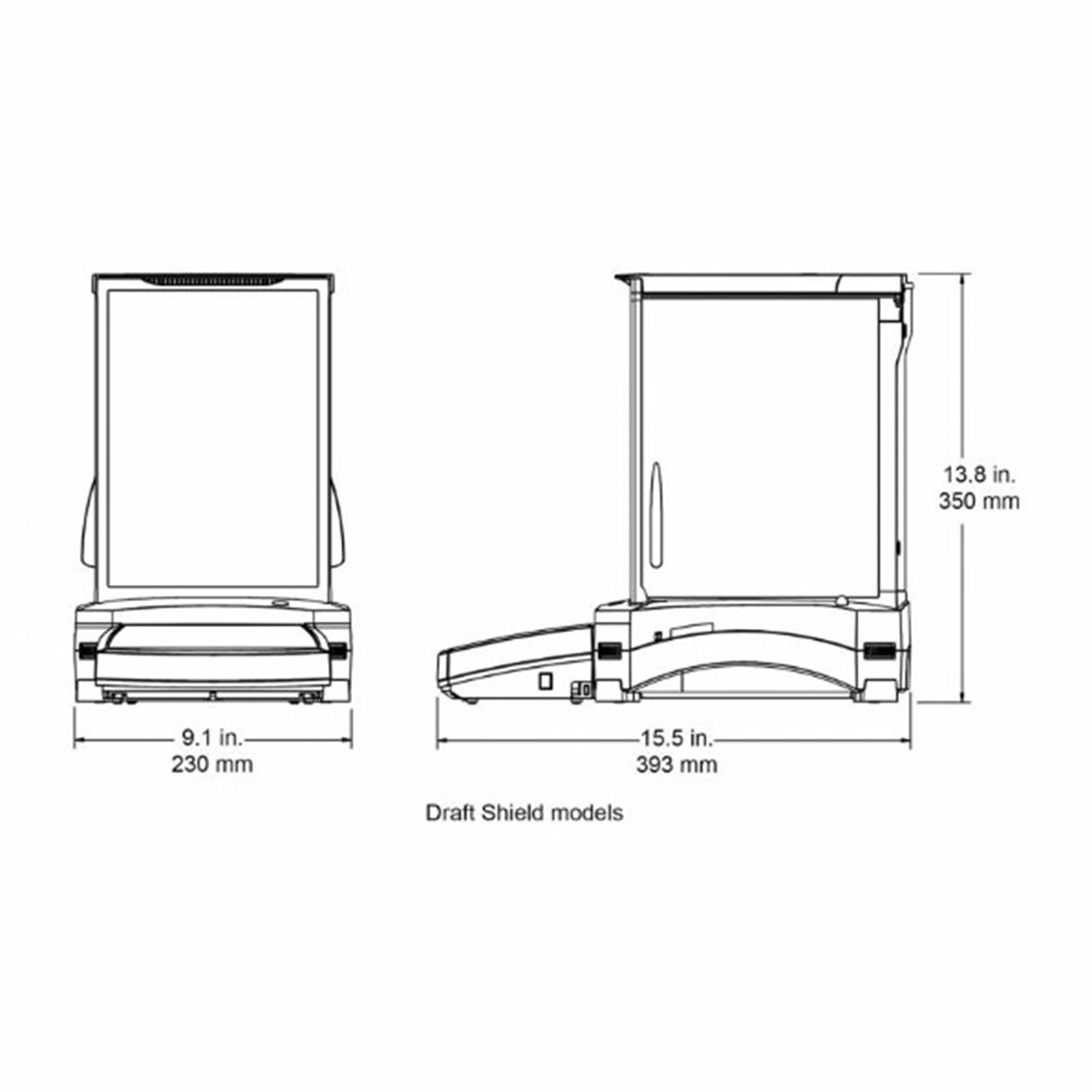

• Overall Dimensions: 15.5" L x 13.8" H x 9.1" W
• Actual Product Weight: 15.2 lbs
