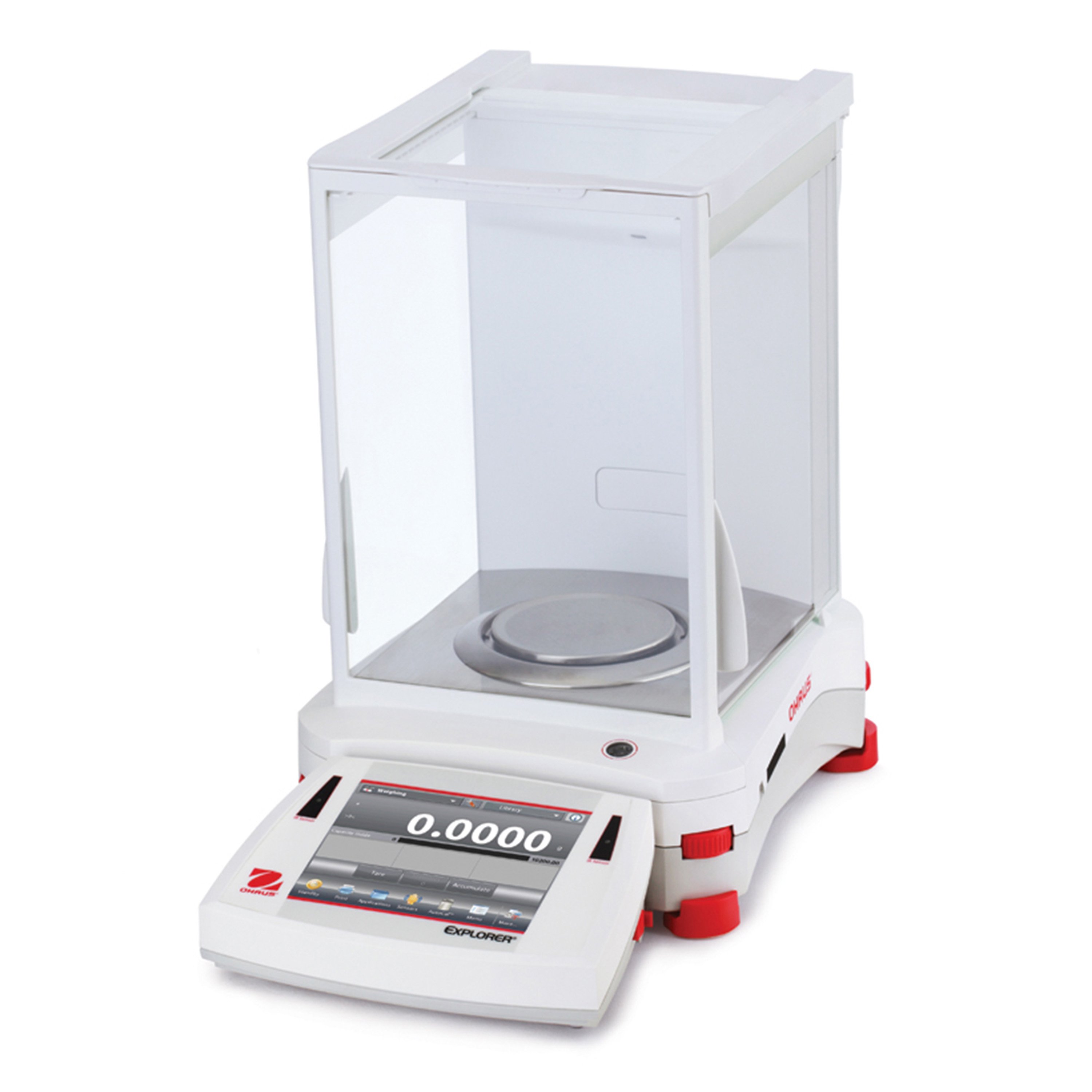

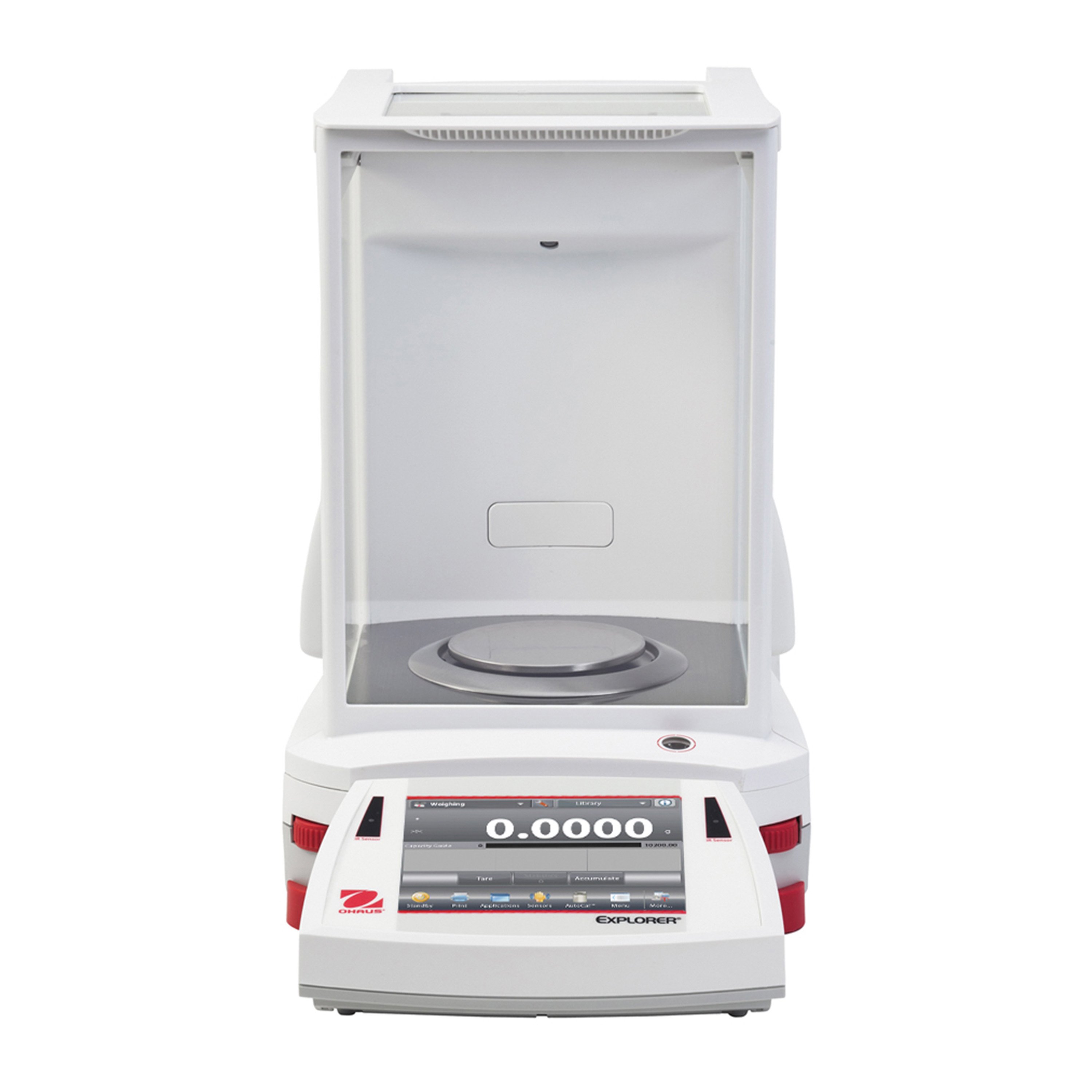

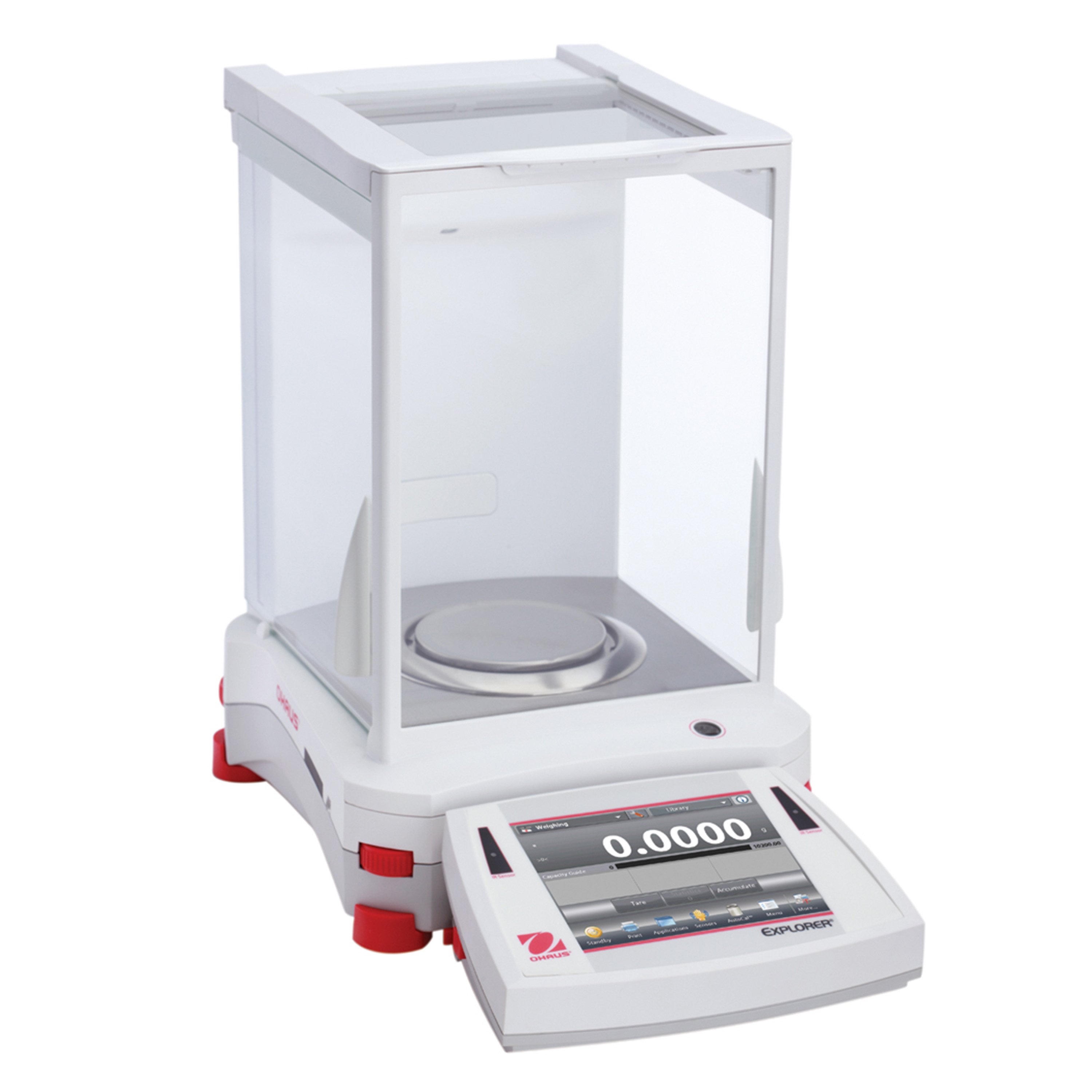

OHAUS Explorer™ Analytical Balance

The OHAUS Explorer™ Analytical Balance combines modern features and design elements to offer unmatched functionality in a line of high-performance balances unlike any other on the market and simplify even the most complex laboratory measurements.

Features:

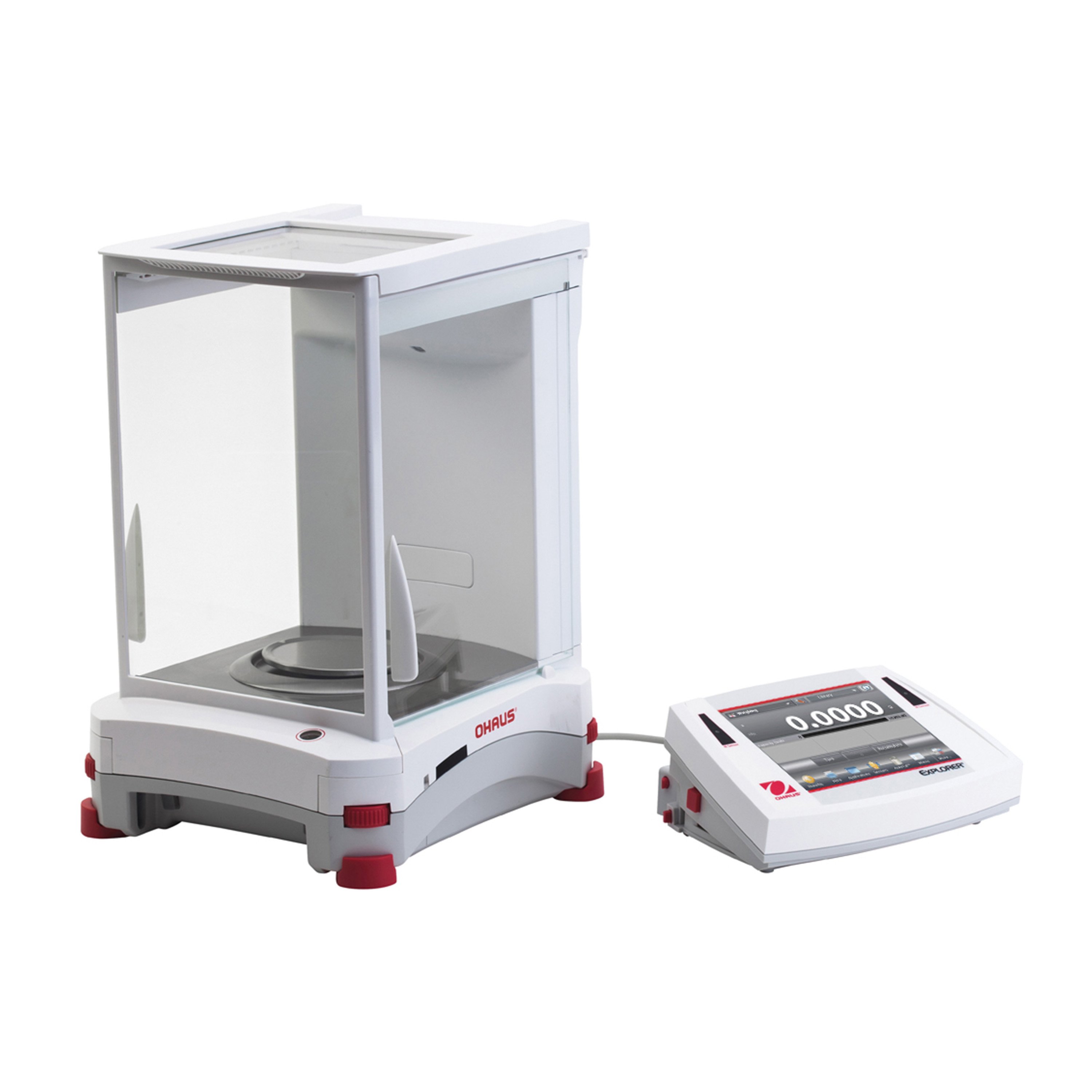

• Detachable terminal with a large color touchscreen
• AutoCal™ internal calibration system ensures the balance is always ready for use, eliminating manual calibration and external weights
• Built-in repeatability test evaluates balance performance and determines the minimum weight for high-accuracy applications
• Internal weighing mode library can allow saving and loading of weighing mode configurations
• An intuitive user interface with an internal database can be used to store, manage, and retrieve application and system data effectively
• Four-level user management with password protection, an un-editable system log, and a high level of configurability make Explorer balances well-suited for regulated applications
• Four touchless sensors enable hands-free operation for zeroing, printing, calibration, taring, automated draft shield doors, and other selectable functions
• Draftshield chamber light for low-lighting environments
• Built-in real-time clock ensures that the data captured is contemporaneous
• *Auto Door helps to eliminate sample residue transfer and contamination

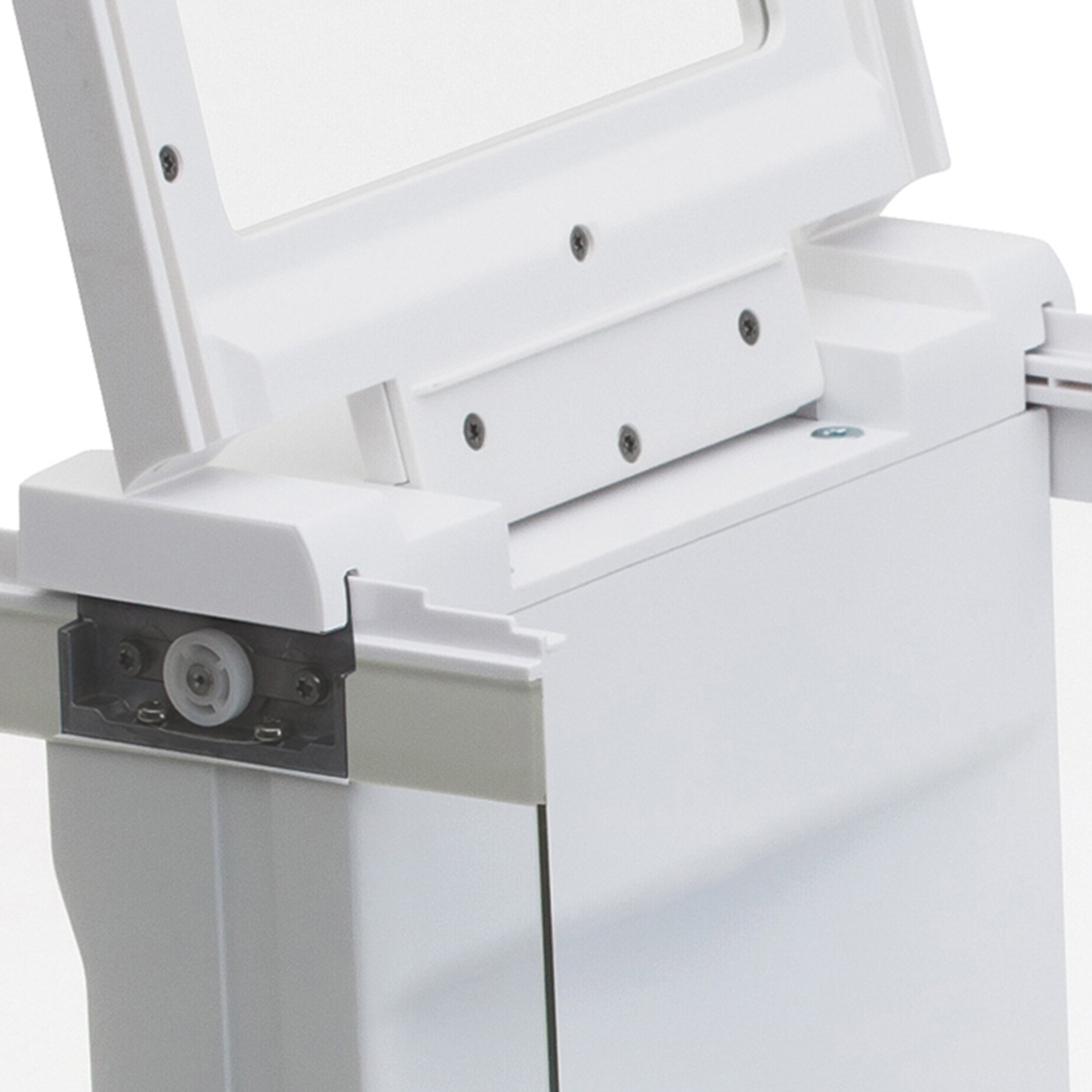

• Slide doors seamlessly glide on top-mounted bearings
• Antistatic-coated glass helps dissipate static charges in the weighing chamber which could adversely affect the weighing results

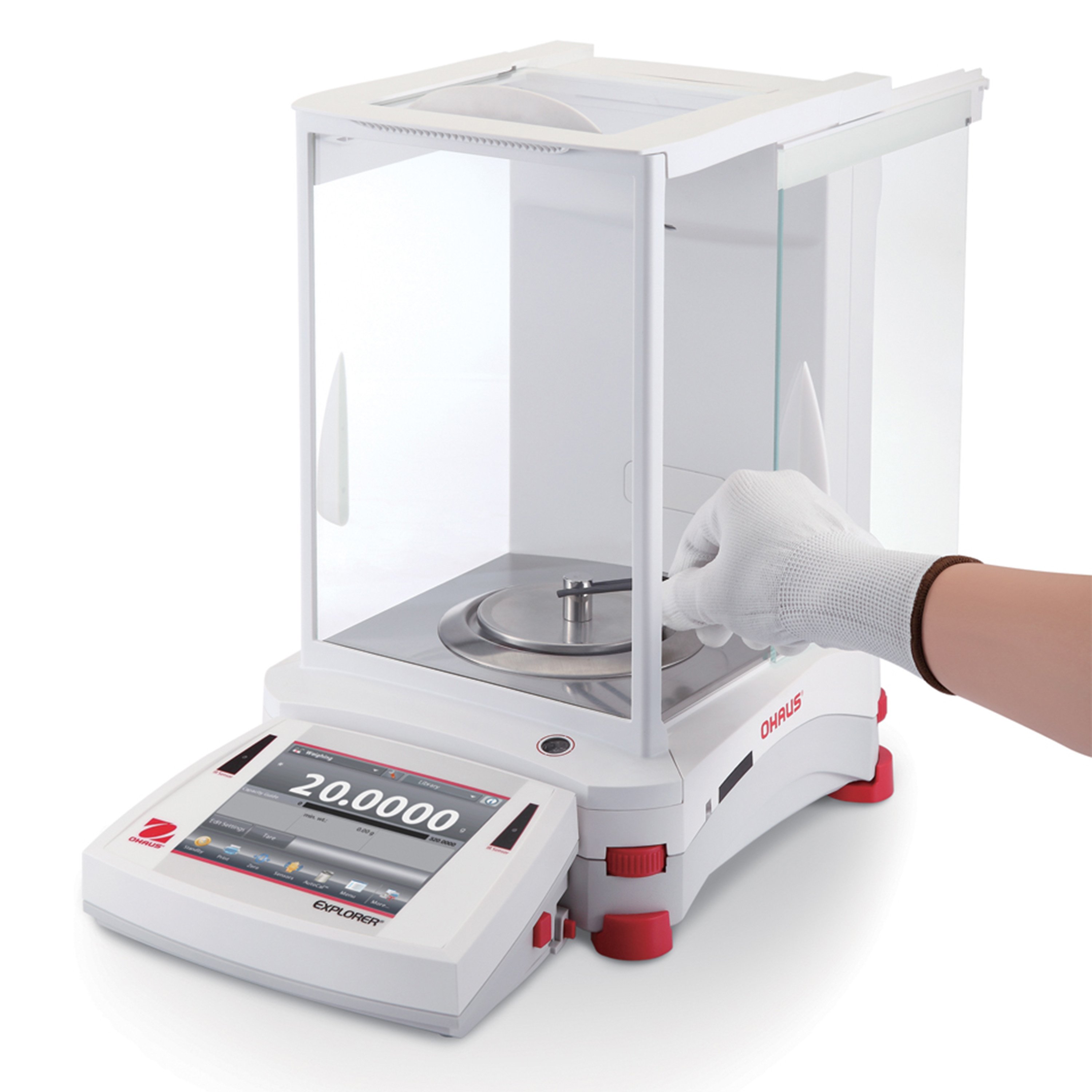

• Two versatile entry options; Flipping the top door and sliding the glass panel open to access the weighing chamber
• Expansive side entry 6.3" x 9.4" allows users to freely place and remove large weigh boats or other large vessels in the weighing chamber
• Includes an AC Adapter, RS-232, and USB

Technical Specification:

• Pan Size: Ø 3.5"
• Pan Construction: Stainless steel
• Tare Range: To capacity by subtraction
• Units of Measurement Singapore Tael, Ounce Troy, Pennyweight, Grain, Kilogram, Tical, Custom, Milligram, Momme, Newton, Baht, Taiwan Tael, Gram, Hong Kong Tael, Pound, Tola, Mesghal, Carat, Ounce
• Draftshield: Included
• In-use Cover: Included
• Display: Full-color 5.7" VGA, touchscreen
• Communication: Ethernet (optional), USB, and RS-232
• Operating Temperature Range: 10°C to 30°C
• Operating Humidity Range: 15% to 80% at 30°C decreasing linearly to 50% at 40°C, non-condensing
• Storage Conditions: -10°C to 60°C at 10% to 90% relative humidity, non-condensing
• Power Supply: AC Adapter Input: 100-240 VAC 0.6A 50-60 Hz

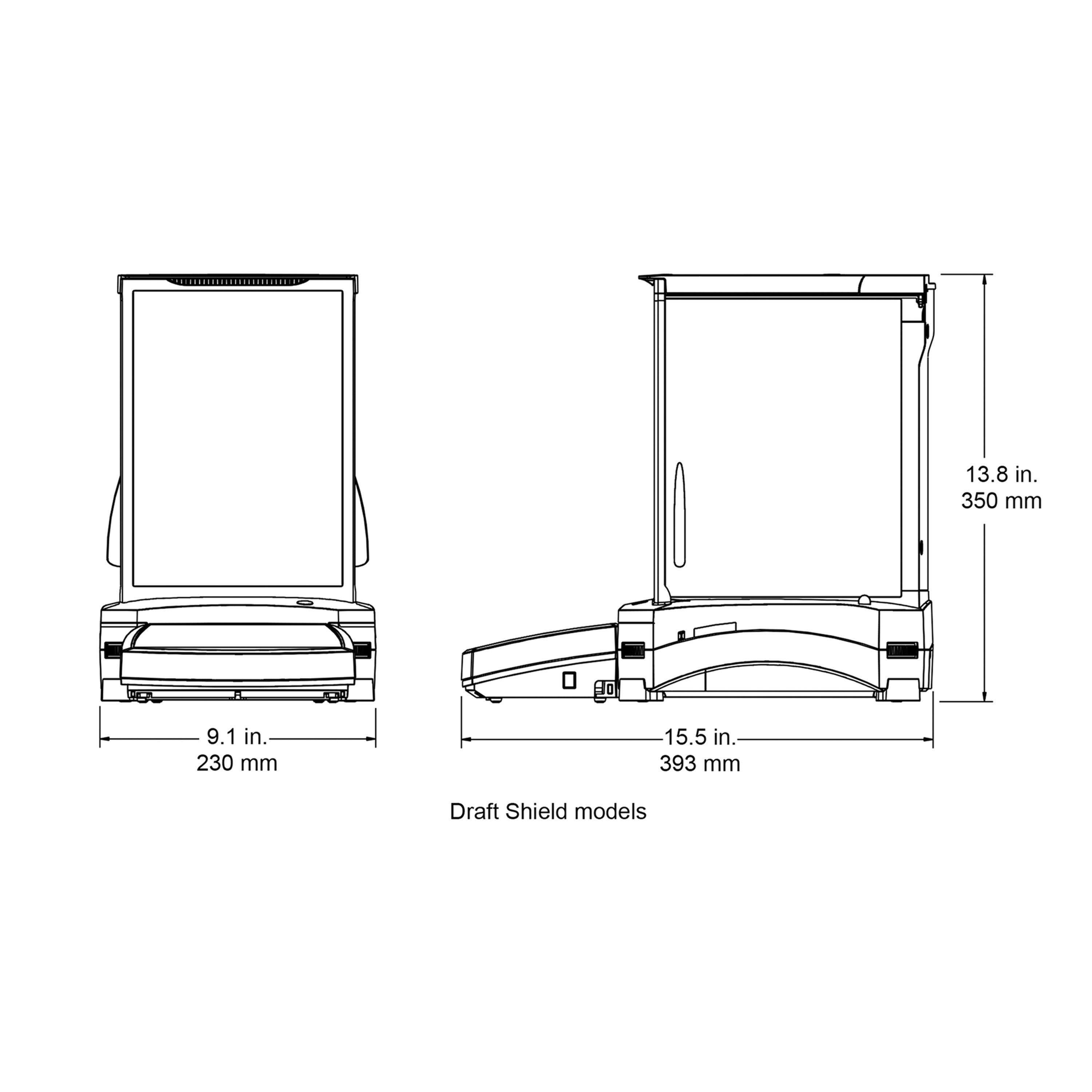

• Overall Dimensions: 15.5" L x 13.8" H x 9.1" W
• Actual Product Weight: 15.2 lbs

*The Auto Door feature is available only for select SKUs.

Model Comparison:
*The value for SRP is the standard deviation for n replicate weighing’s (n ≥ 10)
