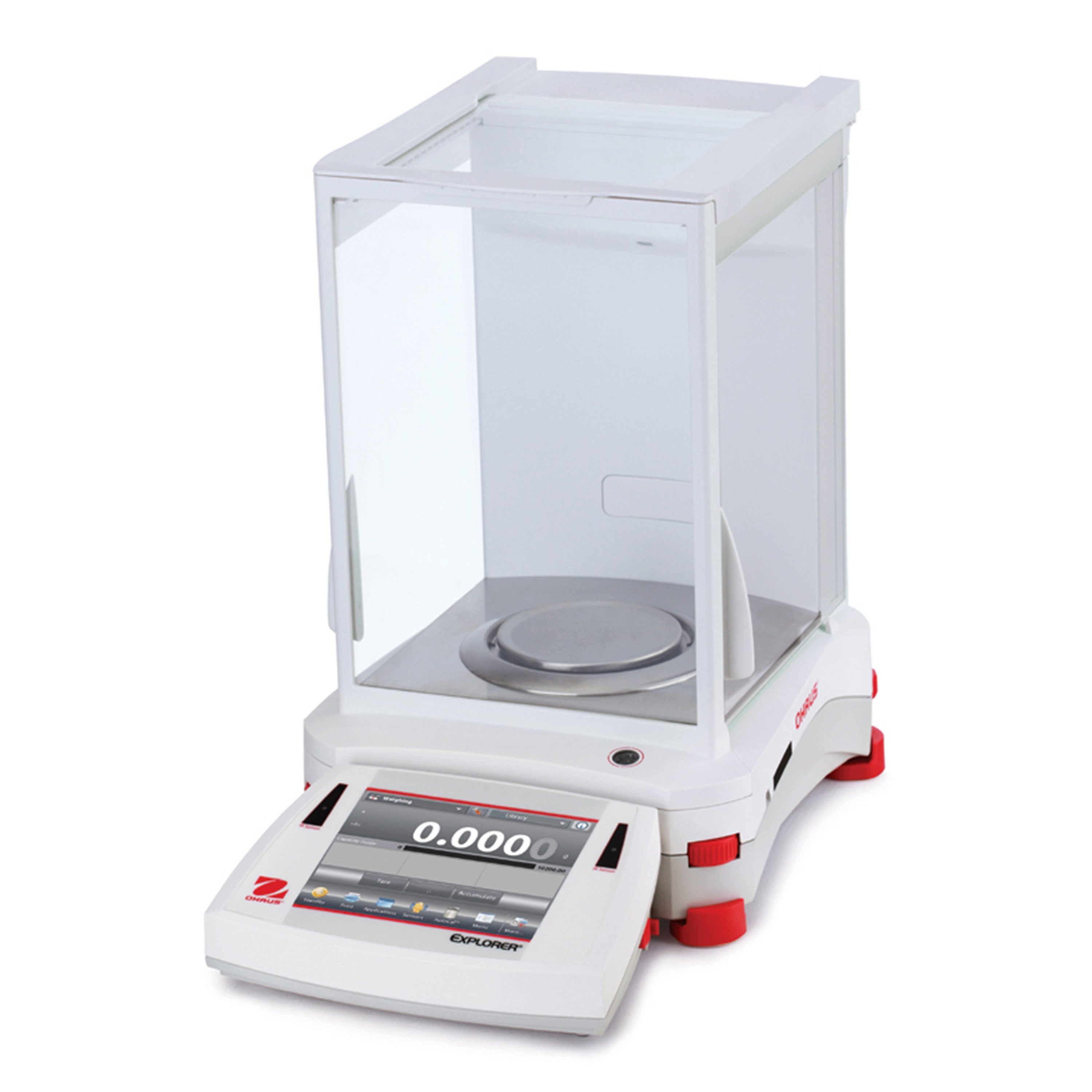

OHAUS Explorer™ Analytical Balance, NTEP Certified
Product Description
The OHAUS Explorer™ Analytical Balance, NTEP Certified combines modern features and design elements to offer unmatched functionality in a line of high-performance balances unlike any other on the market and simplify even the most complex laboratory measurements.
Features:
- Meets or exceeds the Class I accuracy requirements under NIST Handbook 44 and Canada's Weights and Measures Regulations
- Detachable terminal with a large color touchscreen
- AutoCal™ internal calibration system ensures the balance is always ready for use, eliminating manual calibration and external weights
- Built-in repeatability test evaluates balance performance and determines the minimum weight for high-accuracy applications
- An intuitive user interface with an internal database can be used to store, manage, and retrieve application and system data effectively
- Internal weighing mode library can allow saving and loading of weighing mode configurations
- Four-level user management with password protection, an un-editable system log, and a high level of configurability make Explorer balances well-suited for regulated applications
- Four touchless sensors enable hands-free operation for zeroing, printing, calibration, taring, automated draft shield doors, and other selectable functions
- Draftshield chamber light for low-lighting environments
- Built-in real-time clock ensures that the data captured is contemporaneous
- *Auto Door helps to eliminate sample residue transfer and contamination
- Slide doors seamlessly glide on top-mounted bearings
- Removable glass panels and stainless steel bottom for ease of installment and easy-to-clean
- Antistatic-coated glass helps dissipate static charges in the weighing chamber which could adversely affect the weighing results
- Two versatile entry options; Flipping the top door and sliding the glass panel open to access the weighing chamber
- Expansive side entry 6.3" x 9.4" allows users to freely place and remove large weigh boats or other large vessels in the weighing chamber
- Includes an AC Adapter, RS-232, and USB
Technical Specification:
- Pan Size: Ø 3.5"
- Pan Construction: Stainless steel
- Tare Range: To capacity by subtraction
- Units of Measurement: Singapore Tael; Ounce Troy; Pennyweight; Grain; Kilogram; Tical; Custom; Milligram; Momme; Newton; Baht; Taiwan Tael; Gram; Hong Kong Tael; Pound; Tola; Mesghal; Carat; Ounce
- Draftshield: Included
- In-use Cover: Included
- Display: Full-color 5.7" VGA, touchscreen
- Communication: Ethernet, USB, and RS-232
- Accuracy (Class): I
- Legal for Trade: NTEP Certified; Measurement Canada Approved
- Operating Temperature Range: 10° C to 30° C
- Working Environment: 50° F - 86° F, 85% RH, non-condensing
- Power Requirements: AC Adapter Input: 100-240 VAC 0.6A 50-60 Hz
- Overall Dimensions: 15.5" L x 13.8" H x 9.1" W
- Actual Product Weight: 15.2 lbs
*The Auto Door feature is available only for select SKUs.
Models Comparison:
| Model | EX224N/AD | EX224N | EX324N/AD | EX324N |
| SKU | 30061998 | 83021334 | 30061999 | 83021337 |
| With Auto Door | ✔ | - | ✔ | - |
| Capacity | 220 g | 320 g | ||
| Readability d | 0.0001 g | |||
| Approved Readability e | 0.001 g | |||
| Repeatability std | 0.0001 g | |||
| Minimum Weight (USP, 0.1%, Typical) | 0.16 g | |||
| Linearity | ± 0.0002 g | |||
| Stabilization Time | ≤ 2 Seconds | ≤ 3 Seconds | ||
Specifications
| Manufacturer | Ohaus Corporation |
|---|---|
| Latex Free | Yes |
| Actual Product Weight | 15.2 lbs |
| Overall Height | 13.8" |
| Overall Length | 15.5" |
| Overall Width | 9.1" |
| Certifications | NTEP Certified |
| Country of Manufacture | China |
| Item Ships From | Ohio |
