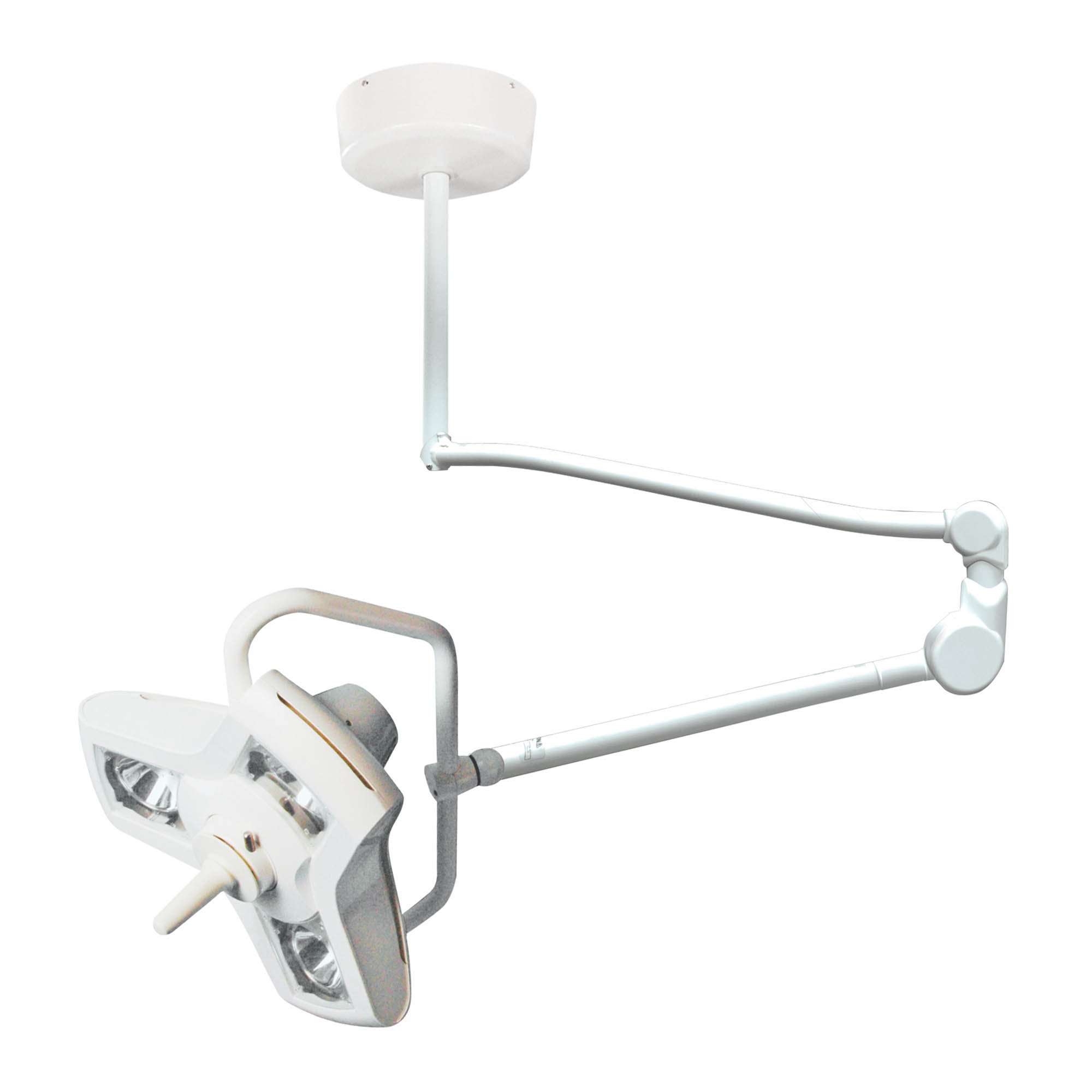

Burton Medical AIM-200® Surgical Light - Single Ceiling Mount
Product Description
Burton's AIM-200® Single Ceiling Mount Surgical Light provides versatility, amazing illumination, and ease of use.
Features:
- Delivering true rendition of colors, this light is ideal for long hours of use with three 50-watt IRC halogen bulbs - each rated with a 1400-hour average bulb life
- Larger and Adjustable Light Pattern - The multiple reflectors of the AIM-200 OR can be tilted by rotating the sterilizable light handle to adjust the size and pattern of the light to the
working area - Light Pattern Free of Cast Shadows - The unique Y-shaped design facilitates the placement of the light head around the practitioner's head, minimizing obstruction of light in the surgical field

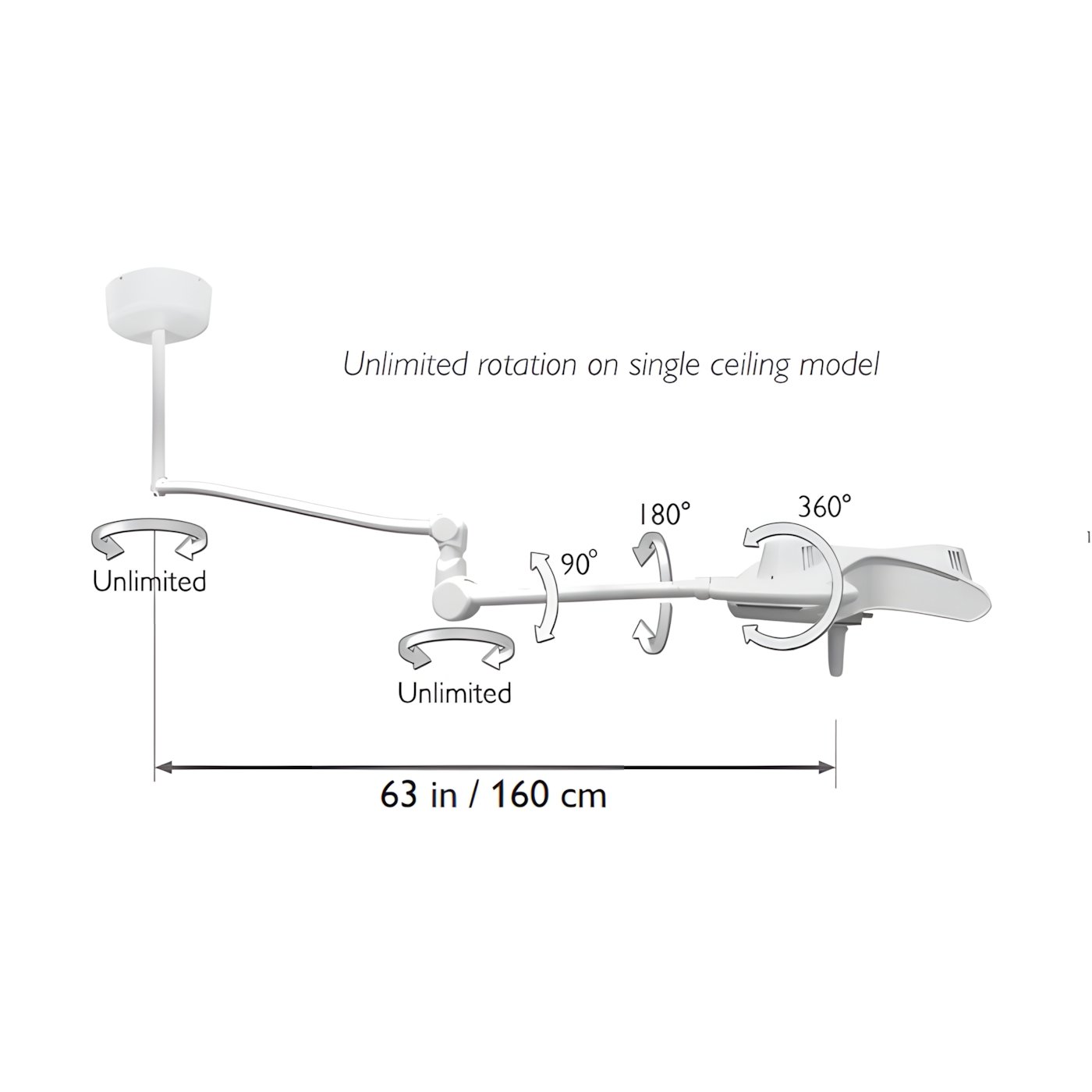

- 360 degrees limitless arm-and-mounting-system-rotation around vertical axes
- The arm system also provides a maximum reach of 63" (160 cm) and a diameter of 10’ (305 cm), allowing it to illuminate the patient from head to toe with no drift
- Easy bulb replacement from the top of the lighthead
- 3700 K color temperature offers natural and true coloring
- UL60601-1 / IEC 60601-1 / IEC 60601-1-2 / IEC 60601-2-41; CAN/CSA C22.2 601-1 M90 certified
- 5-year warranty
Technical Data:
- Illuminance: 90,000 Lux (8361 fc) at 1 meter
- Color Temperature: 3700 Kelvin
- CRI (Color Rendering Index): 96

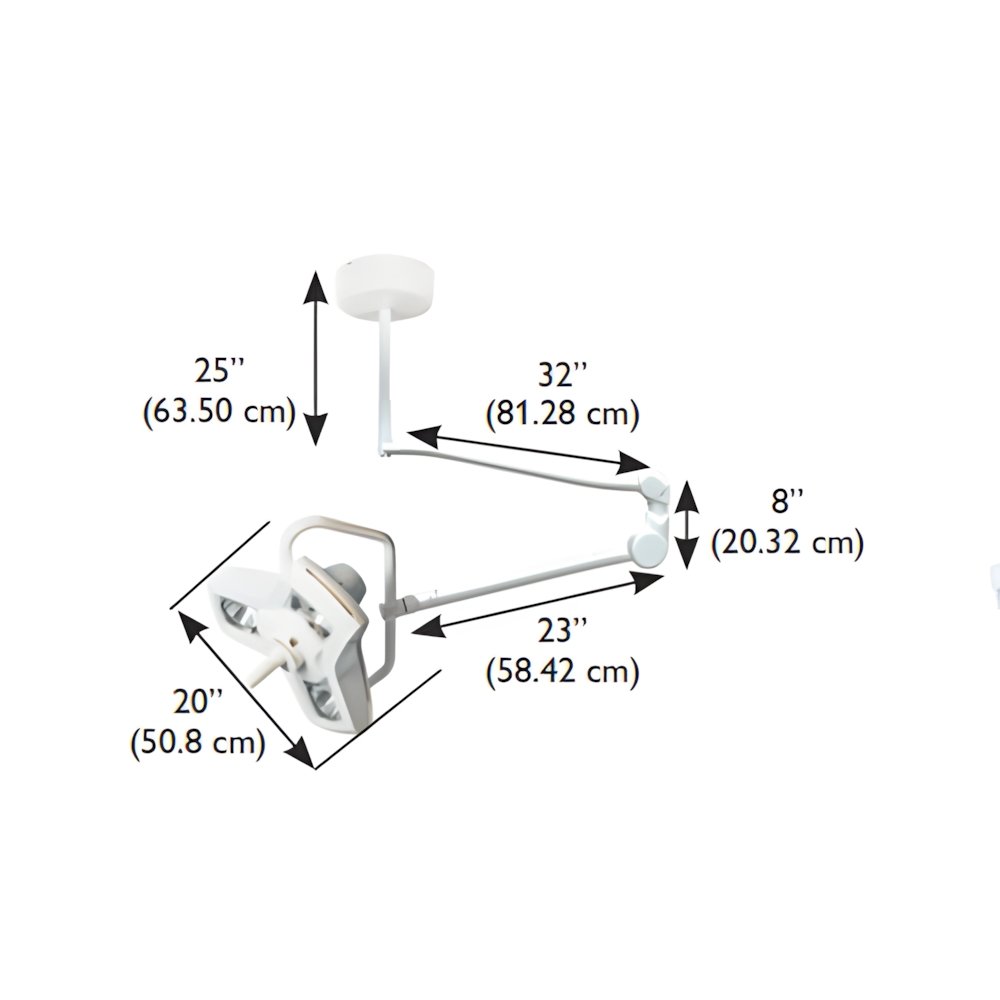

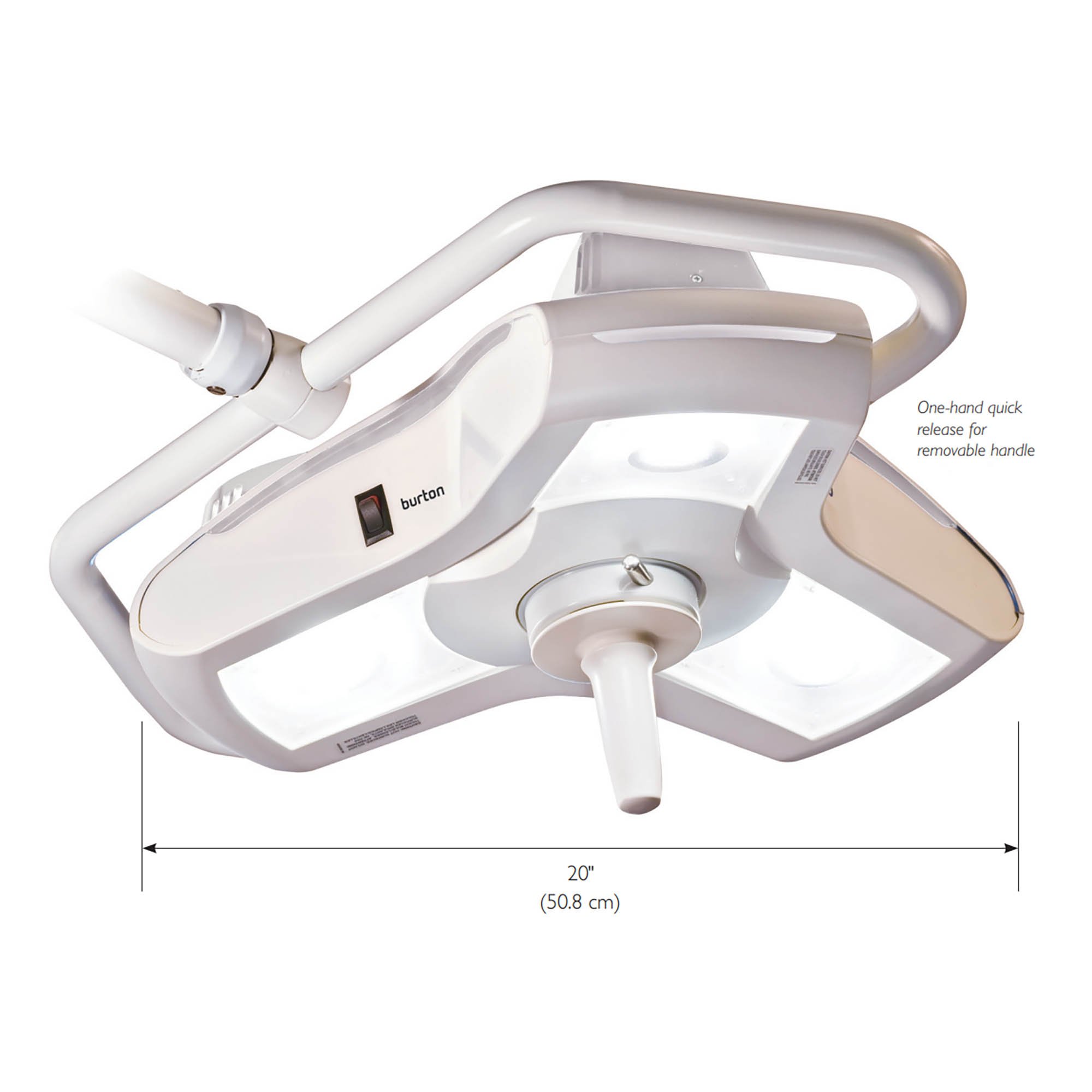

- Diameter of Lighthead: 20" (51 cm)
- Light Field Diameter: 10" - 12" (25 cm - 30 cm)
- Depth of Illumination: 47" (119 cm)
- Focusing: Adjustable by rotating center handle
- Rotation: 360 degrees( limitless)
- Light Source: Halogen 50W IRC, 12V, bi-pin
- Number of Bulbs: 3
- Rated Life of Halogen Lamp: 1,400 hours
- Swivel Radius of Lamp Housing: 63" (152 cm) max.
- Height Movement of Lamp Housing: 41" (104 cm) vertical movement
- Minimum Ceiling Height / Maximum Ceiling Height: 8 ft. / 12 ft. (244 cm / 366 cm)
- Power: 105W, 120V
- Mount: Single Ceiling
About this Brand
Since 1928, Burton has been designing and manufacturing high-quality examination, procedure, and surgical lighting. The company is known for superior products that provide long-lasting solutions to complex lighting issues facing physicians, surgeons, and veterinarians. Accurate color visibility, energy efficiency, long lamp life, and flexible light placement are hallmarks of Burton medical lighting products.
Specifications
| Manufacturer | Burton Medical |
|---|---|
| Country of Manufacture | United States |
| Item Ships From | Illinois |
