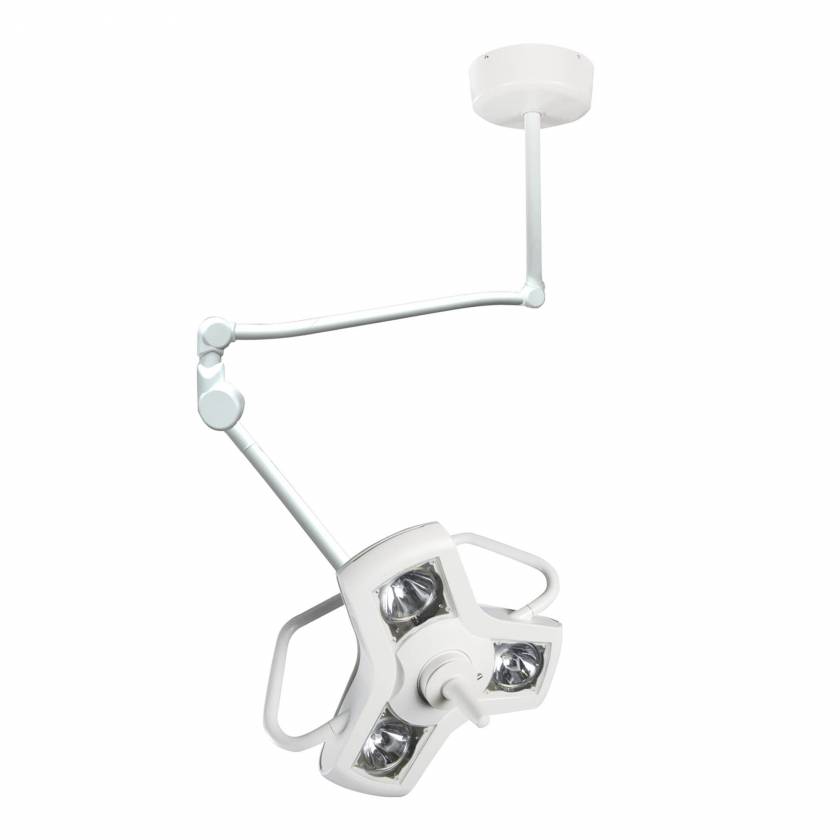

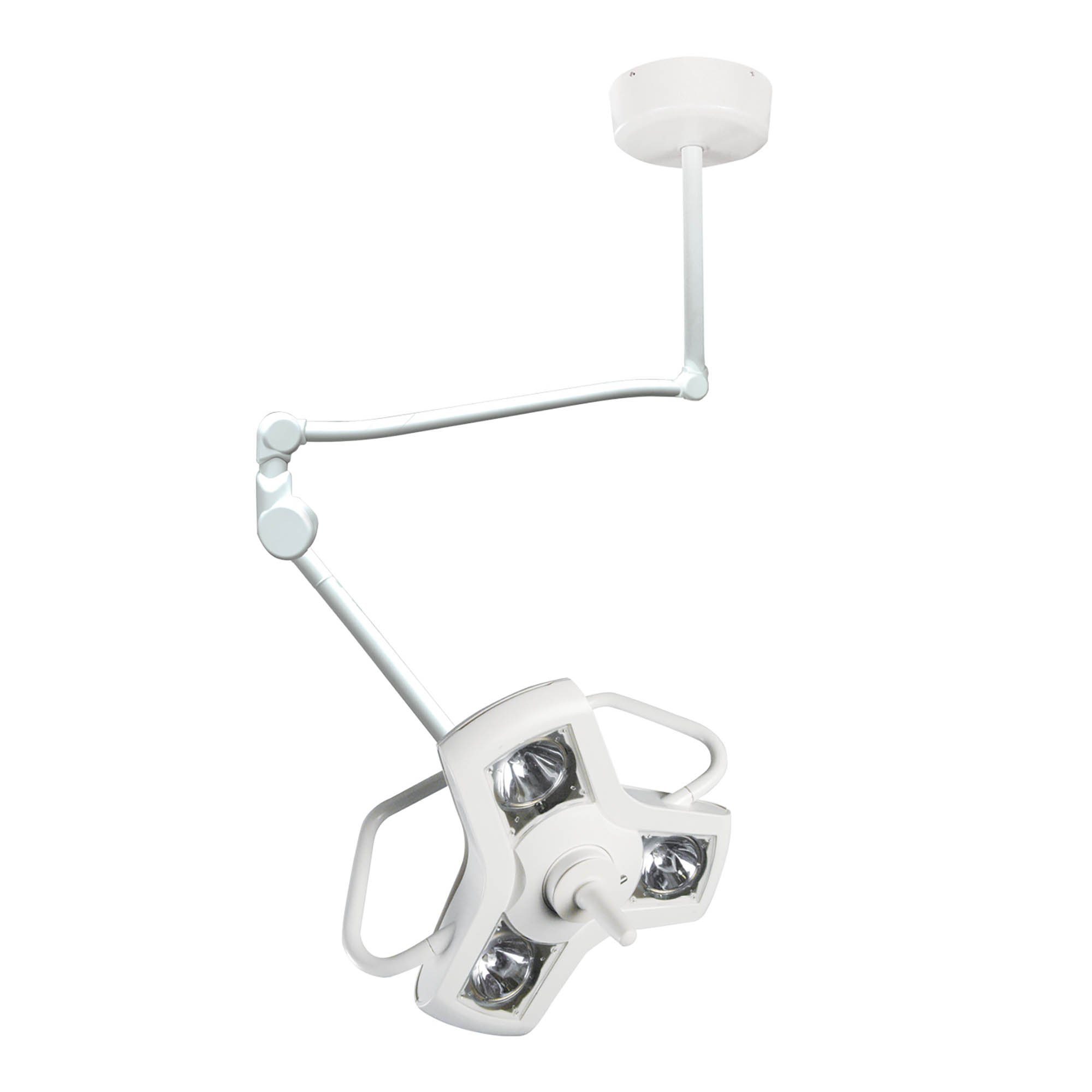

Burton Medical AIM-100® Surgical Light - Single Ceiling Mount
Product Description
Burton's AIM-100® Single Ceiling Mount Surgical Light provides amazing value and unparalleled aesthetics. Along with the highest intensity illumination, you can also expect a smooth focus and superior maneuverability. A longer arm system ensures that the light can be positioned in the widest range of positions possible, making the AIM-100® ideal for outpatient procedures in a variety of settings and practices including trauma centers, ERs, ambulatory surgery centers, ICUs, physician offices, clinics, plastic surgery, dermatology, and ophthalmology.
Features:
- High-intensity of 63,000 lux (5800 fc) per lighthead
- 3500 K color temperature offers natural and true coloring
- High CRI (Color Rendering Index)
- Uses three quartz halogen bulbs - each rated with a 2000-hour bulb life. Bulbs wired in parallel for continuous operation

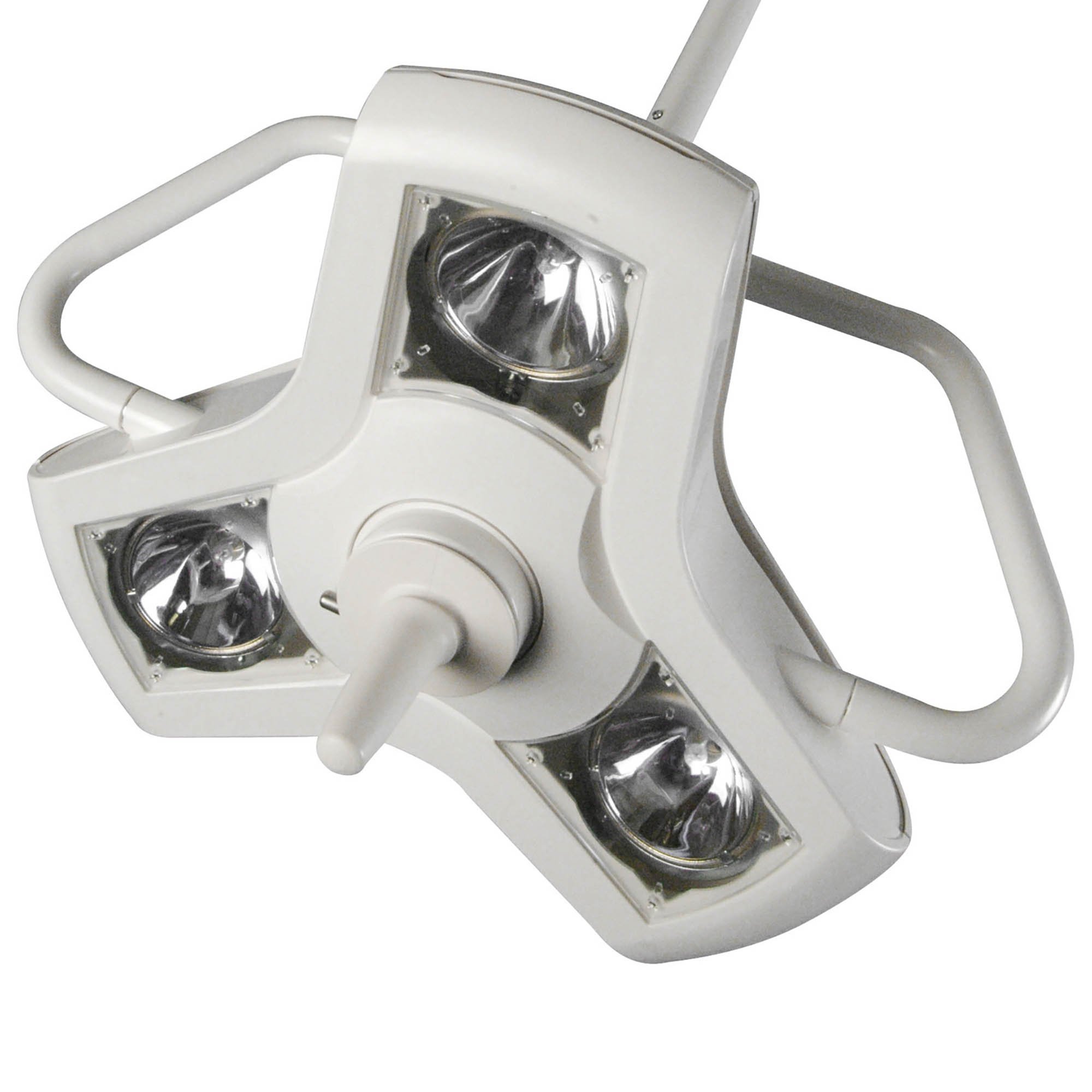

- Compact lighthead
- Extremely smooth focus mechanism with center sterilizable handle
- 360 degrees limitless arm and mounting system rotation around vertical axes
- Cool operation for long hours of use
- IEC/UL 60601-1 / IEC 60601-2-41 / IEC/EN 60601-1-2; CAN/CSA C22.2 601-1 M90 certified
- 5-year warranty
Technical Data:
- Illuminance: 63,000 Lux at 1 meter (39.7”)
- Color Temperature: 3500 Kelvin
- CRI (Color Rendering Index): 97
- Light Source: Halogen 35W, 12B, bi-pin
- Power: 133W, 120V

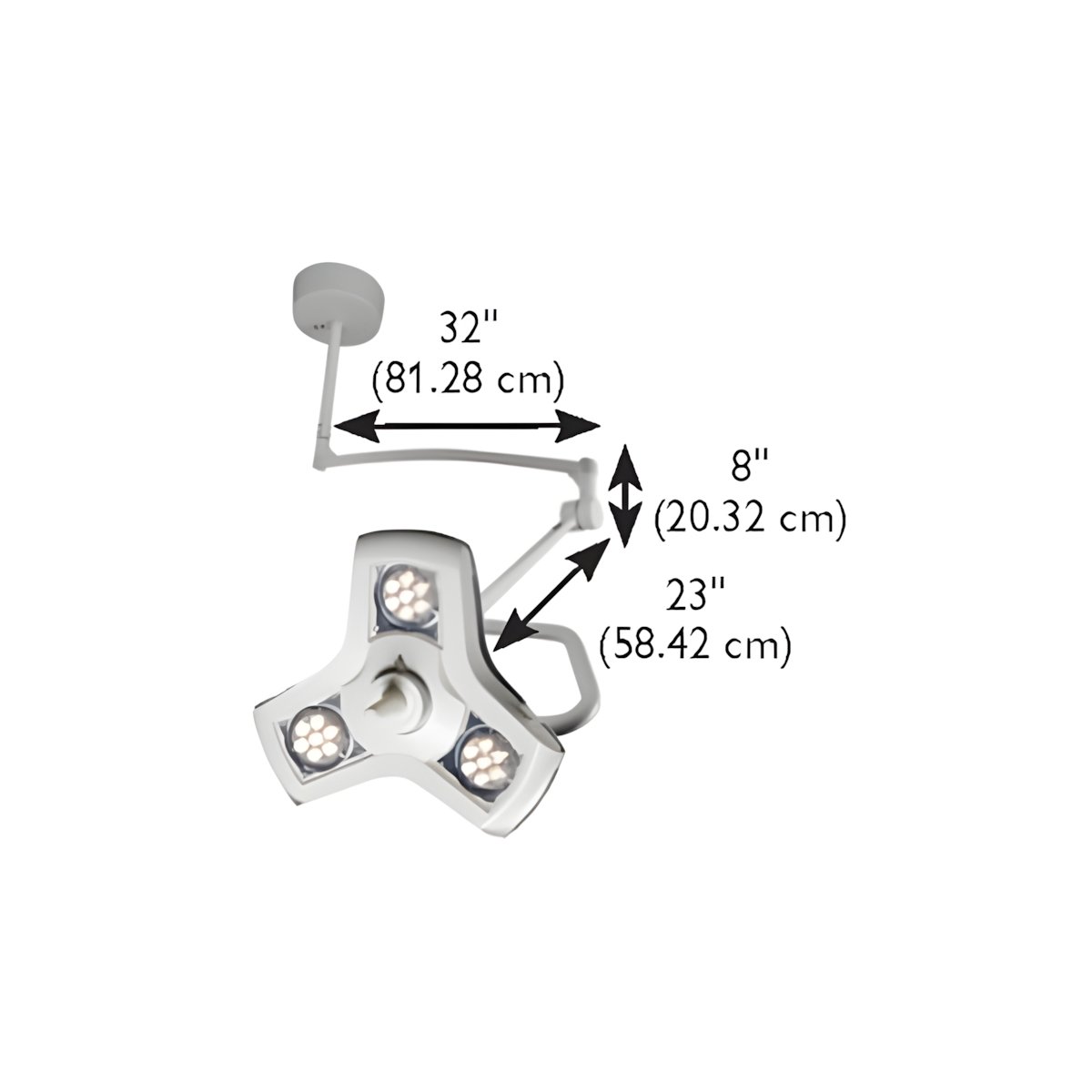

- Diameter of Lighthead: 20" (51 cm)
- Light Field Diameter: 9.6" - 12" (25 cm - 31 cm)
- Depth of Illumination: 47" (119 cm)
- Focusing: Adjustable by rotating center handle
- Rotation: 360 degrees( limitless)
- Number of Bulbs: 3
- Rated Lamp Life: 2,000 hours

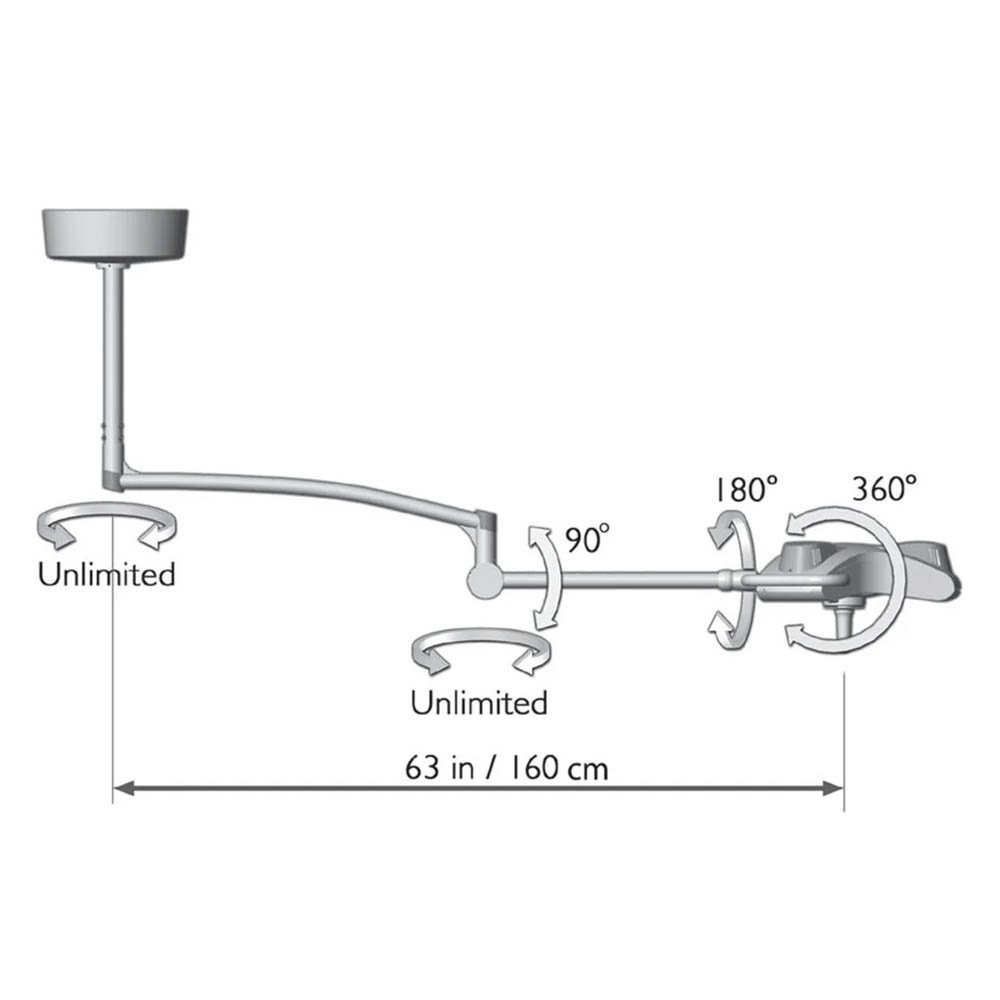

- Swivel Radius of Lamp Housing: 63" (160 cm) max. (with extension arm and spring arm extended from center of mount to center of head)

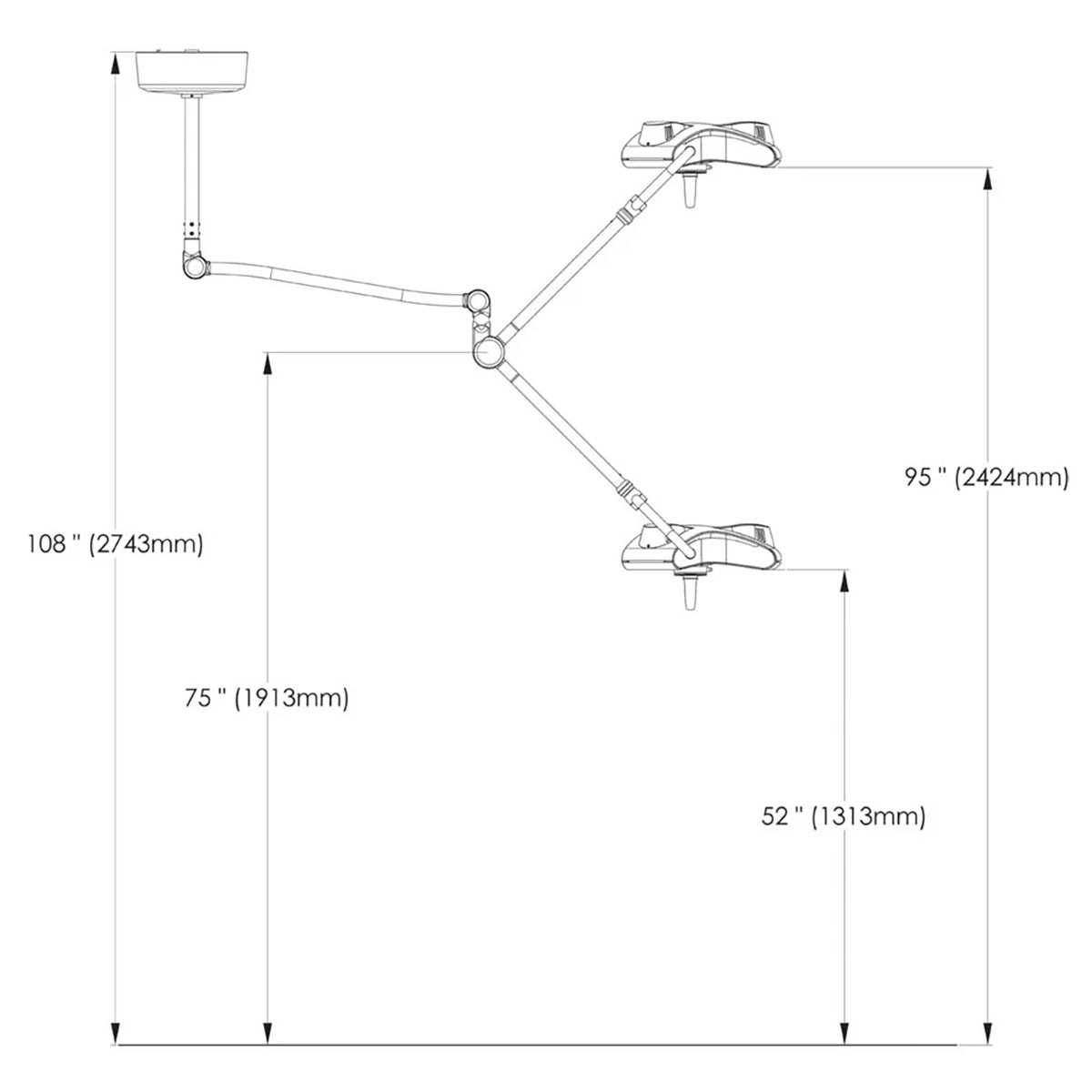

- Minimum Ceiling Height / Maximum Ceiling Height: 8 ft. / 12 ft. (244 cm / 366 cm)
- Height Movement of Lamp Housing: 41" (104 cm) vertical movement
- Mounts: Single Ceiling
About this Brand
Since 1928, Burton has been designing and manufacturing high-quality examination, procedure, and surgical lighting. The company is known for superior products that provide long-lasting solutions to complex lighting issues facing physicians, surgeons, and veterinarians. Accurate color visibility, energy efficiency, long lamp life, and flexible light placement are hallmarks of Burton medical lighting products.
Specifications
| Manufacturer | Burton |
|---|---|
| Country of Manufacture | United States |
| Item Ships From | Illinois |
Literature
Instructions
Warranty: Mechanical components of Philips Burton products are warranted to provide the original owner 5 (five) years of free service from defects in material and workmanship. The warranty does not cover the following items: light sources, handles, fuses and consumables.
This warranty will not apply if the serial or lot number on the product has been altered, removed or made illegible. This warranty does not cover alterations, adaptations or adjustments made to the product. Periodic maintenance and repair or replacement of parts due to normal wear and tear is not covered. Also not covered are issues resulting from Abuse or misuse of the product. The warranty does not cover repairs performed by non-authorized service stations, dealers or the original owner. Warranty does not cover Accidents, lightning, water, fire, improper ventilation or any cause beyond the control of Philips Burton. Defects of the system into which the product is incorporated including installation and modification defects are not covered by this warranty.
Returns
Unauthorized returns will not be accepted, please contact Customer Service within 30 days of product shipment date and indicate the reason for your return. Returned items must be in new, unused condition in all original packaging. It is customer's responsibility to review product specifications, certifications, listings, etc. prior to purchase. A minimum 18 percent restocking fee plus all freight charges will be applied to any product returned.
A cancellation fee of up to $250 may apply at discretion of manufacturer. Cancellation charges for custom-built products may be subject to additional penalty fees at any time. All freight damage claims must reported within (3) days of receipt of shipment.
