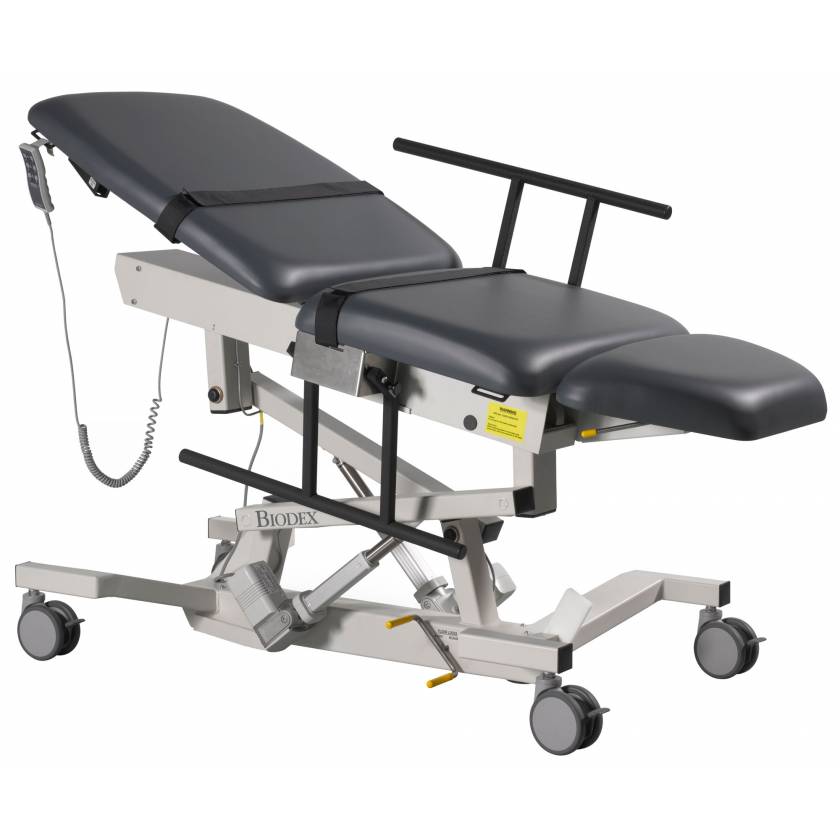

Biodex Ultra Pro Ultrasound Table 115 VAC
The Biodex Ultra Pro Ultrasound Table 115 VAC is designed for general ultrasound procedures, including OB/GYN. Enhanced ergonomics reduce sonographer fatigue. Redesgned Fowler back provides utmost patient comfort and require less patient repositioning. Enhanced central floor-locking system offers easier access around the table. Antimicrobial vinyl mattress reduces risk of infection. 500 pound patient capacity suitable for bariatric patients. Height range down to 23" accommodates wheelchair transfers and patients with ambulatory difficulties. Motorized height, Fowler back, Trendelenburg, and auto-level adjustments. Hand controller to actuate table positions. For additional options, explore our full range of ultrasound exam tables.
Product Description
The Ultra Pro™ Ultrasound Table is the professional's choice when performing general ultrasound procedures, including OB/GYN. Now there is even more reason to choose an Ultra Pro Ultrasound Table.
Enhancements to the ergonomics reduce sonographer fatigue and require less patient repositioning, making it easy to achieve quality images in less time.
The redesigned Fowler back which provides the utmost patient comfort, an enhanced central floor-locking system offering easier access from around the table and an antimicrobial vinyl mattress ensuring safety against infection are all standard on the Ultra Pro.
- Ergonomic design helps prevent musculoskeletal injuries; comfortable shoulder, arm and hand positions when scanning
- Allows seated or standing work positions
- 500-lb patient capacity, suitable for bariatric patients
- Height range down to 23" accommodates wheelchair transfers and those with ambulatory difficulties
- Drop-down, contoured leg section
- Fowler positioning, 0-80 degrees, redesigned to accommodate natural body extension and sitting position without slide or shift
- Motorized height, Fowler back, Trendelenburg and auto level adjustment
- Naugahyde® antimicrobial mattress cover with Advanced BeautyGard® provides protection against bacteria
- Central floor-locking system maintains table stability
- Equipped with hand controller to actuate table positions
- Optional retractable stirrups with enhanced contouring and extra-long extension for taller patients
- Optional articulating scanning arm board mounts to either side of table
- Optional flush mounted side rails fold out of the way to allow unobstructed patient access
The Ultra Pro Ultrasound Table is equipped with a motor-controlled hand controller, 2"- and 3"-thick Naugahyde® antimicrobial mattress, two patient restraining straps with hook and loop fasteners, five-inch locking swivel casters and a central locking system, accessible from either side of the table, to secure table position.
Optional table accessories include foot controller (058-741), retractable stirrups (058-652), vascular scanning arm board (058-735), fold away side rails (058-632), IV pole (058-656) and paper dispenser with cutter strap (058-610) are installed by the customer.
Specifications:
- Overall Dimensions: 70" L x 30" W; 35" W with side rails
- Drop-Down Leg Section Dimension: 12.6" L
- Height Adjustable: 23" to 39"
- Trendelenburg: 0° to ±15° - Fowler Back: 0° to 80° infinitely adjustable
- Controls: Hand Control (included): Activates height, Trendelenburg motions, Fowler back and auto level motions - Foot Control (optional): Activates height, Trendelenburg motions and Fowler positioning
- Tabletop: Three primary sections: torso section with Fowler back positioning, center section remains fixed and leg section drops down to 40° and 80° for stirrup access
- Mattress: Torso section 2" thick, center and leg sections 3" thick; Naugahyde®, antimicrobial mattress cover with Advanced BeautyGard®
- Upholstery Color: Graphite
- Wheels: 5" Individual locking swivel casters; central floor locking system
- Patient Restraints: Two body straps
- Finish: Powder coat
- Patient Capacity: 500 lb; weight tested to four times the patient load rating
- Weight: 335 lb
- Power: 115 VAC
- Certifications: ETL and cETL Listed to UL60601-1 and CAN/CSA C22.2 No. 601.1-M90 and EN 60601-1 standards
