Product Description

The extra-large, 75" radiolucent area, free-float X-Y tabletop, motorized control of height, isocentric lateral roll, Trendelenburg motions and the catheter tray extension make the Surgical C-Arm Table - 840 ideal for cardiovascular and interventional radiology applications. The radiolucent area is free of cross members, allowing full fluoroscopic visualization and unobstructed C-Arm positioning. Functional design provides complete access with reduced radiation exposure to clinicians. Patient comfort and stability are assured by two-inch thick table padding and three adjustable straps with hook and loop fastening.

Features:

  • Low attenuation carbon fiber tabletop, with rectangular design
  • Free-Float Tabletop – With specially-designed SmoothGlideâ„¢ movement
  • Carbon-Fiber Tabletop – 0.7 mm attenuation (1.2 mm with pad) design
  • Tabletop Motion – Expansive head-to-toe, 35"
  • Radiolucent Area – Extra-large, 75"
  • Isocentric Lateral Roll Motion – Maintains image center during tabletop movement, minimizing image distortion
  • High-Speed Actuators – Assure quick tabletop positioning, height adjustability, isocentric lateral roll and Trendelenburg motions
  • Mushroom-Shaped Control – Ergonomic, for free-float motion
  • Table Base – Encased in stainless steel, easy to clean
  • Hand and Foot-Operated Controllers – Ensure quick and safe tabletop positioning
  • Patient Capacity – 500 lb
  • Low Profile Base – For unrestricted C-arm movement
  • Accessory Rails
  • AC and Battery Power – Standard

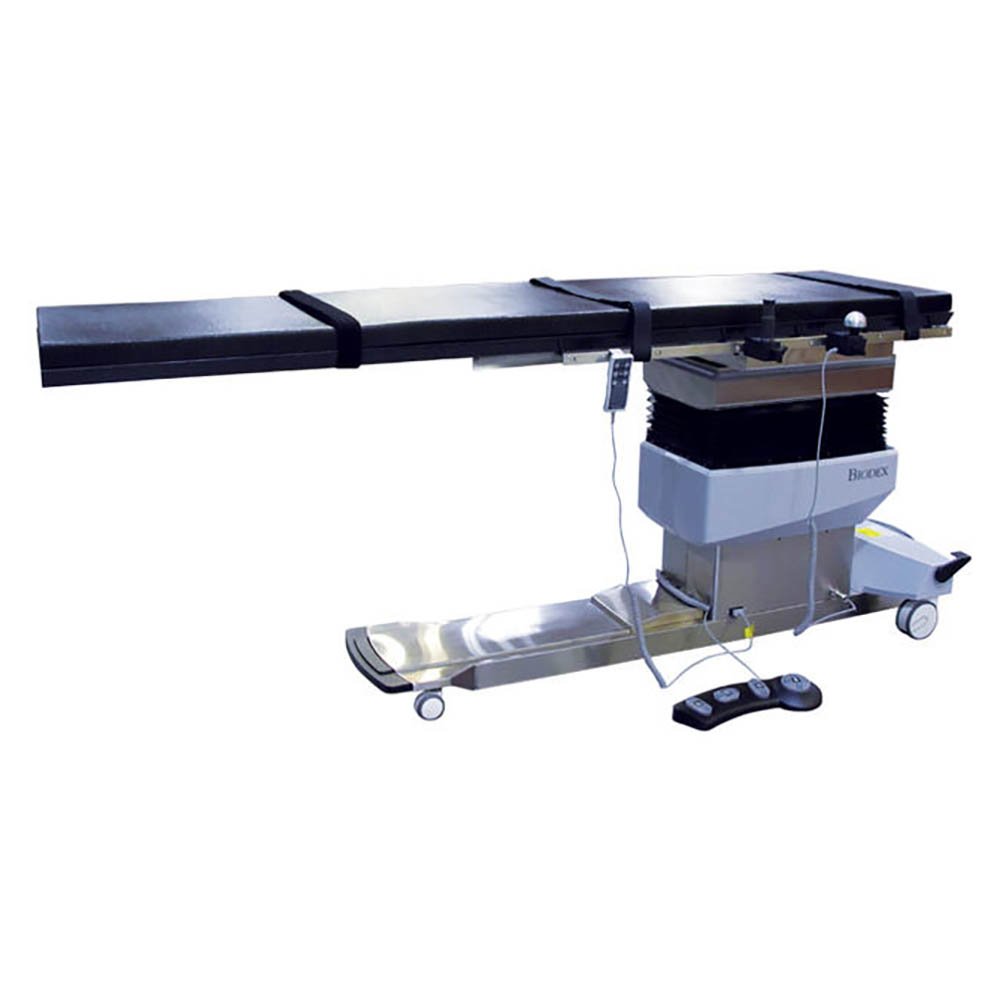

Rectangular Tabletop offers additional space to allow for superior image quality for long-leg runoff studies.

Control Made Easy: The portable hand-held and foot-operated controllers ensure quick and safe tabletop positioning, and can be positioned from any point around the table. Both controllers offer the freedom to adjust height, lateral roll and Trendelenburg motions. The hand-held controller provides the back-to-level function; hangs it on an accessory rail when not in use. The foot-operated controller also releases the tabletop for X-Y positioning and is ideal when hands are busy with other functions.

Freedom of Movement: The ergonomic mushroom-shaped control optimizes command of the SmoothGlideâ„¢ free-float tabletop. When employing any degree of tilt or roll, X and Y positions are "locked" to prevent gravity-induced movement. 35" head-to-toe (X) can be maintained during lateral roll; and side-to-side (Y) can be maintained during Trendelenburg positioning.

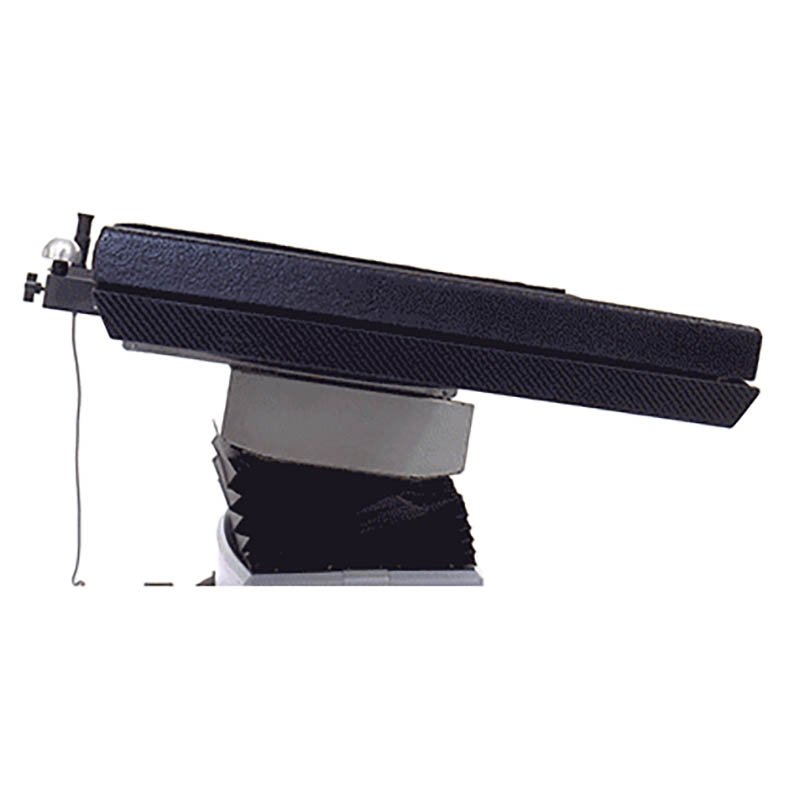

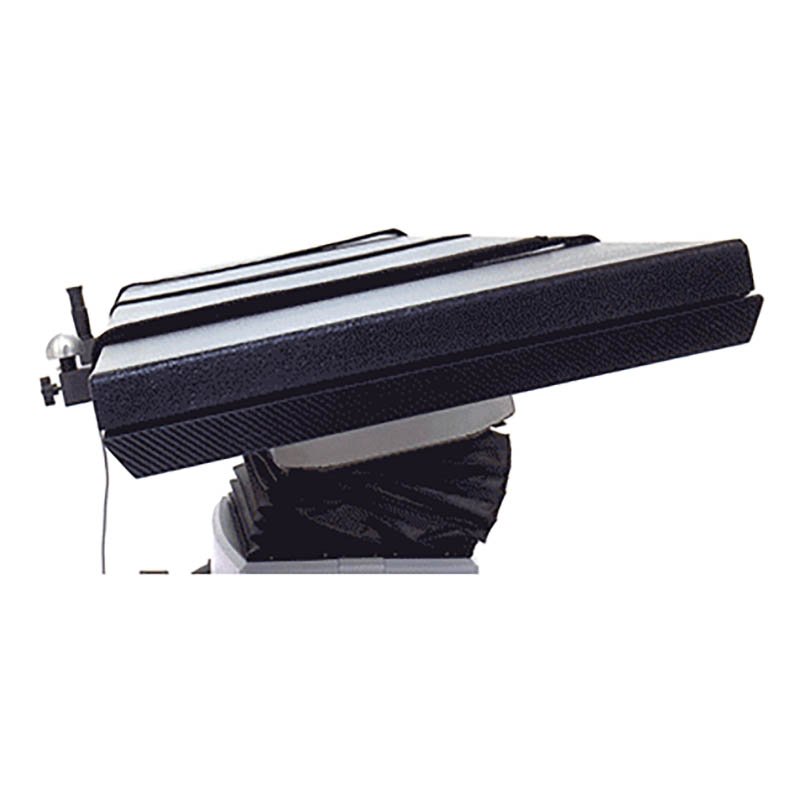

Stable, Accessible and Vibration Free: Isocentric lateral roll motion is a unique movement that maintains center of the focal area, minimizing image distortion. Reducing the time required for adjustments, table or patient, ultimately reduces exposure to scatter radiation. Both AC and battery power are standard. When operating on battery, there are no power cords to hinder movement or block casters. An optional battery with separate charging unit can provide continuous, cordless operation.

Optional Accessories are installed by the customer.

Specifications:

  • Dimensions:
    • Overall: 97" L x 26" W with OR accessory rails
    • Tabletop: 97" L x 24" W
    • Catheter Tray Extension (removable): 18" L x 24" W non-radiolucent
  • Radiolucent Area: 75" L x 24" W
  • Tabletop Material: Carbon fiber with integral head section
  • Mattress: Seamless, 2" thick
  • Attenuation: 1.2 mm Aluminum equivalence
  • Motions:
    • Height Adjustable: 33.5" to 43.5"
    • Tabletop X Motion (head-to-toe float): 35"
    • Tabletop Y Motion (side-to-side float): 10"

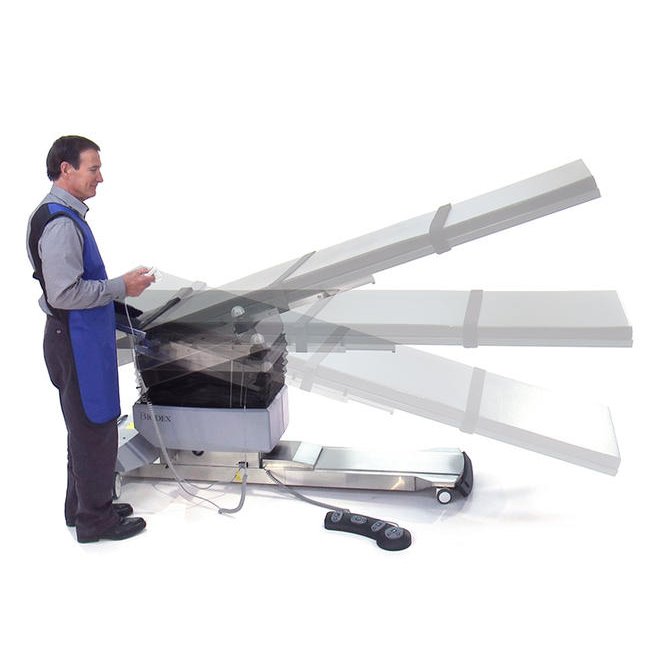

    • Trendelenburg: 0° to 20°
    • Reverse Trendelenburg: 0° to 20°
    • Isocentric Lateral Roll: 0° to ±15°
  • Controls:
    • Hand Control: activates height, isocentric lateral roll and Trendelenburg motions
    • Foot Control: activates all motions (has release for float)
    • Mushroom-Top Control: releases X-Y Tabletop motions
  • Wheels:
    • Head End: 3" swivel casters, integral locking system on base
    • Foot End: 5" swivel casters with central locking
  • Accessory Rails: Standard OR accessory rails 49.5" x 1.12" x .375" mounted near foot end of table
  • Patient Restraints: Three body straps
  • Finish: Stainless Steel
  • Patient Capacity: 500 lb
  • Weight: 641 lb
  • Power: 115 VAC and battery. Battery automatically charges when table is plugged in. An optional battery with separate charging unit provides continuous, cordless operation.
  • Certifications: ANSI/AAMI ES60601-1:2005 +C1 (2009) +A1 (2012) +A2 (2010); CAN/CSA C22.2 No: 60601-1:14; CAN/CSA-C22.2 NO. 60601-2-46:12; IEC 60601-1-2-46:2016
  • CDRH registered and FDA Device Listed
  • Warranty: Two years parts and labor

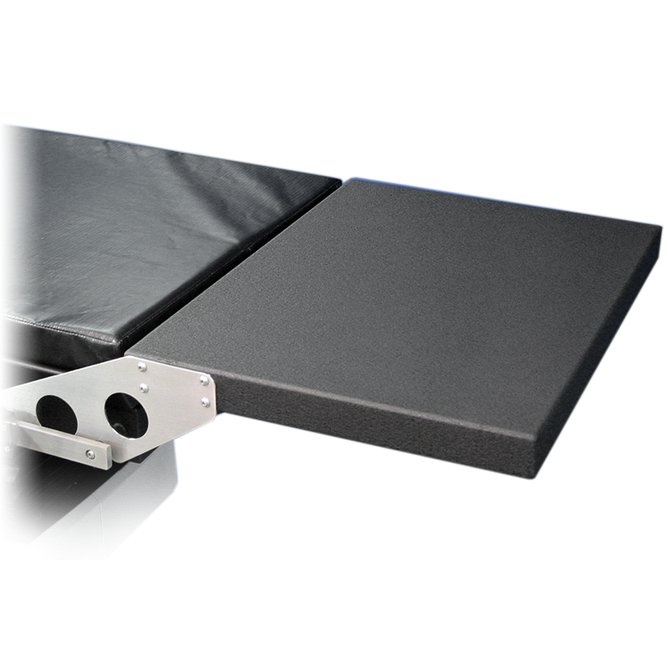

  • Standard Accessory: Catheter Tray Extension - this removable extension provides additional table length to accommodate catheters within the patient's sterile field. This feature makes the procedure easier, safer and reduces the risk of breaking the sterility of the catheters. Catheter Tray Extension is not radiolucent and not suitable for patient support. Should not be used for bariatric patients who weigh more than 500 lb.
