Biodex Sound Pro Combination Ultrasound Table 115 VAC
Product Description

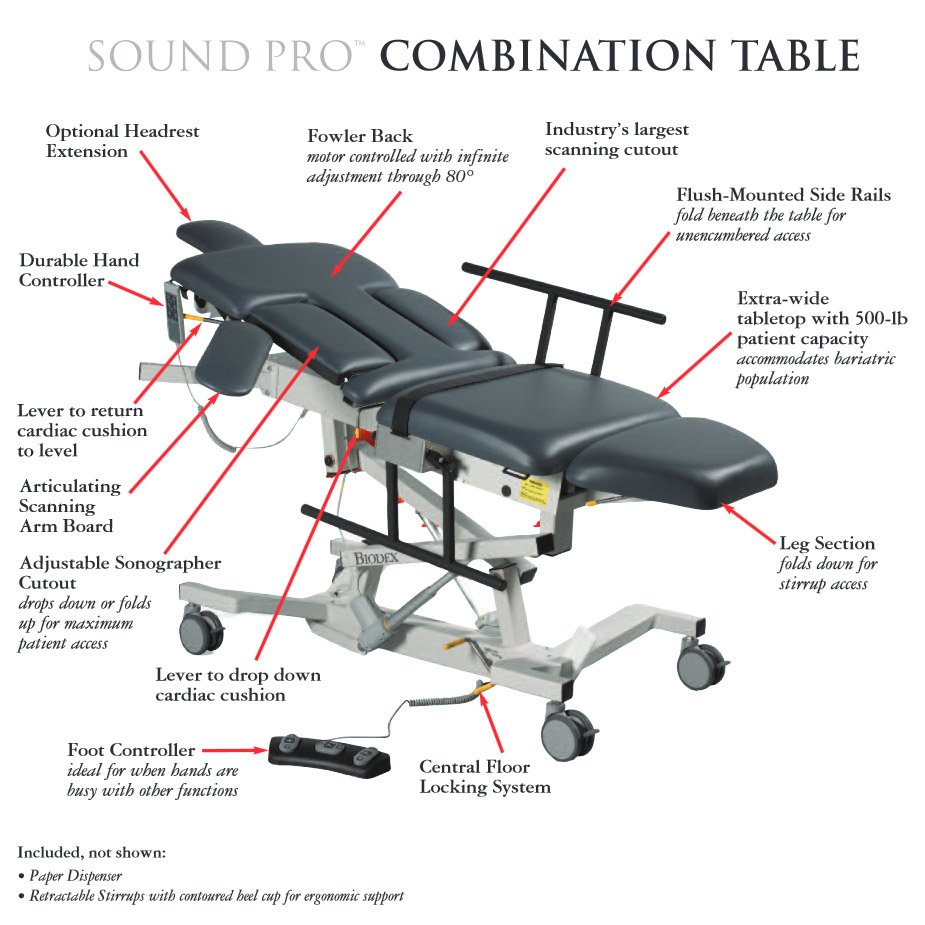

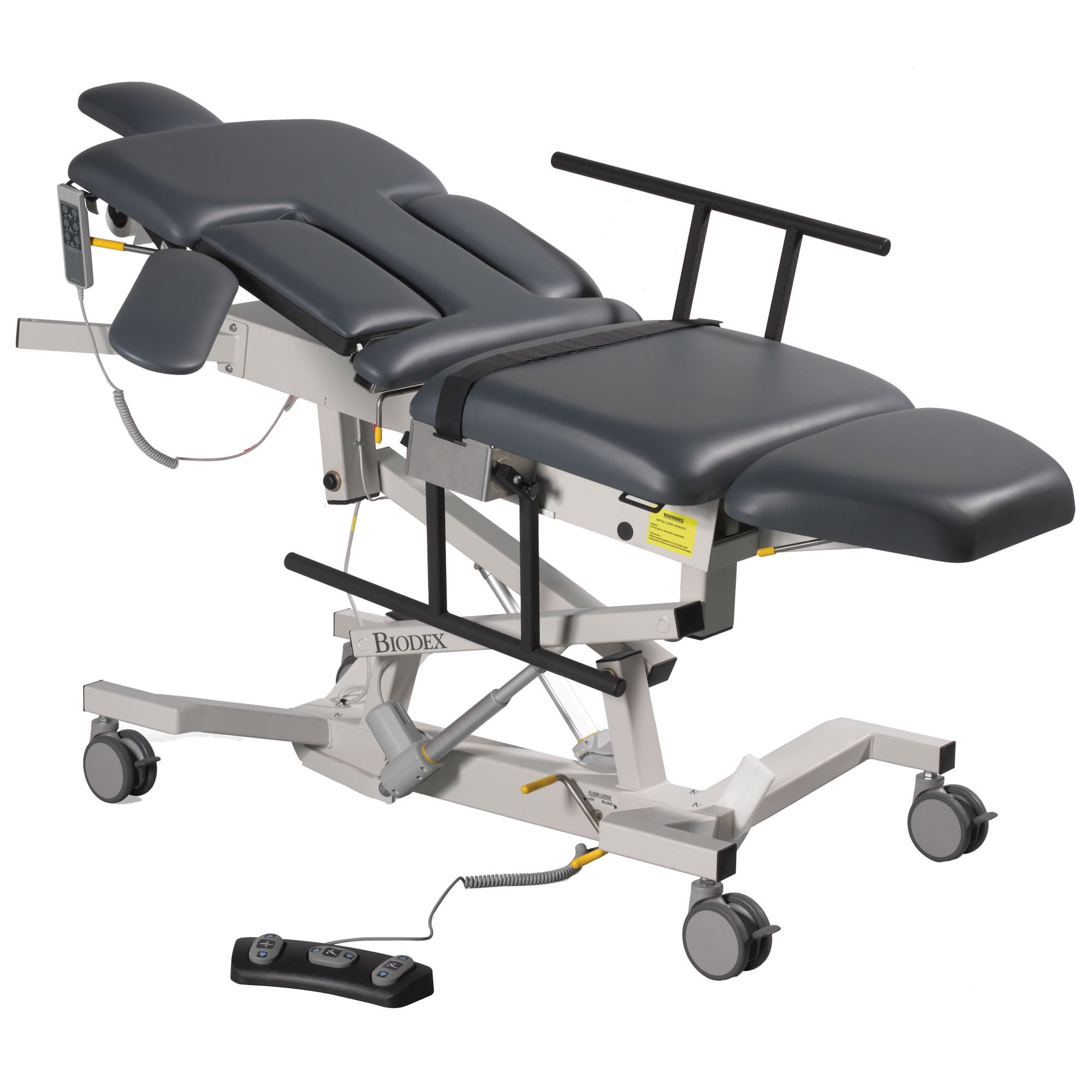

The Sound Pro™ Combination Table brings together the imaging features of both the Ultra Pro and Echo Pro tables. Fully equipped for OB/GYN, general ultrasound, and echocardiography procedures, the extra wide tabletop is designed with advanced ergonomics to provide maximum comfort for both patient and sonographer.
Designed to conform to natural body extension and sitting position, the motorized Fowler back is infinitely adjustable to 80 degrees via hand or foot control. The table is so accommodating, it reduces the total amount of time required to achieve a quality image. Stress patients are off the treadmill and quickly onto the table in imaging position.
The new cardiac drop-down cushion releases from either side of the table, providing open access to the patient's left thorax area for an unencumbered apical approach. Flush-mounted side rails enable closer access to the patient, without sonographer contortion. When not in use, rails fold beneath the table, eliminating obstruction.
Patient comfort is assured even during lengthy procedures with our new softer feel, Naugahyde® antimicrobial mattress cover, which also provides protection against bacteria.
- Ergonomic design helps prevent musculoskeletal injuries - comfortable shoulder, arm and hand positions when scanning
- Extra wide top with 500-lb patient capacity, suitable for bariatric patients
- Cardiac drop-down cushion, allows releases and return from either side of the table
- Industry's largest cardiac scanning cutout - 9.5" W x 15.75" L
- Articulating Scanning Arm Board, adjustable from 0 to 130 degrees
- Height range down to 23" accommodates wheelchair transfers and those with ambulatory difficulties
- Fowler positioning, 0-80 degrees, redesigned to accommodate natural body extension & sitting position without slide or shift
- Motorized height, Fowler back, Trendelenburg and auto level adjustment
- Naugahyde®, antimicrobial mattress cover with Advanced BeautyGard® provides protection against bacteria
- Central floor-locking system maintains table stability
- Redesigned side rails flush to table for unencumbered patient access

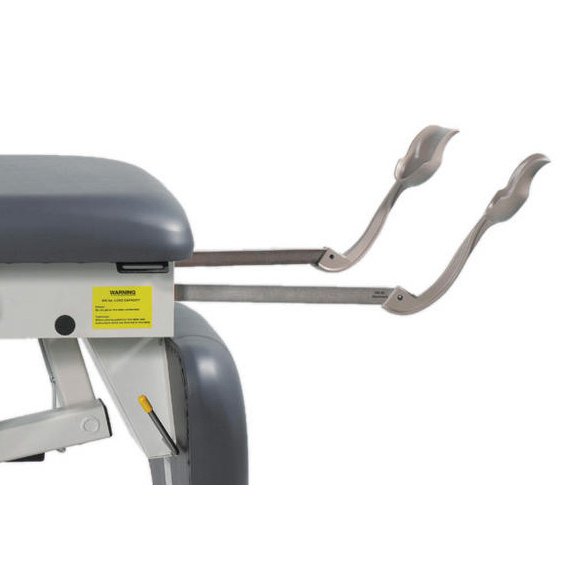

- Enhanced stirrups, designed to cup at the heel for added comfort
- Foot Controller is ideal for when hands are busy with other functions
- IV Pole easily attaches for quick convenience
- Paper Dispenser accommodates a roll of hygienic table paper. Includes a cutter strap
- Allows seated or standing work positions
The Sound Pro Combination Table is fully equipped with table accessories including hand and foot controllers, folding side rails, articulating scanning arm board, retractable stirrups, IV pole and paper dispenser.
Specifications:
- Dimensions: 71" L x 30" W; 35" W with side rails
- Cardiac Scanning Cutout Dimensions: 9.5" W x 15.75" L
- Adjustable Sonographer Cutout Dimensions: 8" W x 14.75" L
- Drop-Down Leg Section Dimensions: 12.6" L
- Height Adjustable: 23" to 39"
- Trendelenburg: 0° to +/-15°
- Fowler Back: 0° to 80° infinitely adjustable
- Controls: Hand Control: Activates height, Trendelenburg motions, Fowler back and auto level motions - Foot Control: Activates height, Trendelenburg motions and Fowler positioning
- Tabletop: Three primary sections: torso section features sonographer and patient cutouts with Fowler back positioning; center section remains fixed and leg section drops down to 40° and 80° for stirrup access
- Mattress: Torso section 2" thick, center and leg sections 3" thick; Naugahyde® antimicrobial mattress cover with Advanced BeautyGard®
- Upholstery Color: Graphite
- Patient Restraints: One body strap
- Wheels: 5" Individual locking swivel casters; central floor locking system
- Finish: Powder coat
- Patient Capacity: 500 lb; weight tested to four times the patient load rating
- Table weight: 350 lb
- Power: 115 VAC
- Certifications: ETL and cETL Listed to UL60601-1 and CAN/CSA C22.2 No. 601.1-M90 and EN 60601-1 standards
Please Note:
About this Brand
New York-based, ISO-certified Biodex Medical Systems offers a range of health-care products, particularly in medical imaging. Biodex ultrasound exam tables, C-arm imaging tables, and non-magnetic stretchers reflect its commitment to manufacture products that are exceptionally functional, durable and user-friendly. Its state-of-the-art 120,000 square foot manufacturing facility follows strict quality control guidelines, empowering Biodex users to focus on the patient while enjoying true ergonomic designs.
