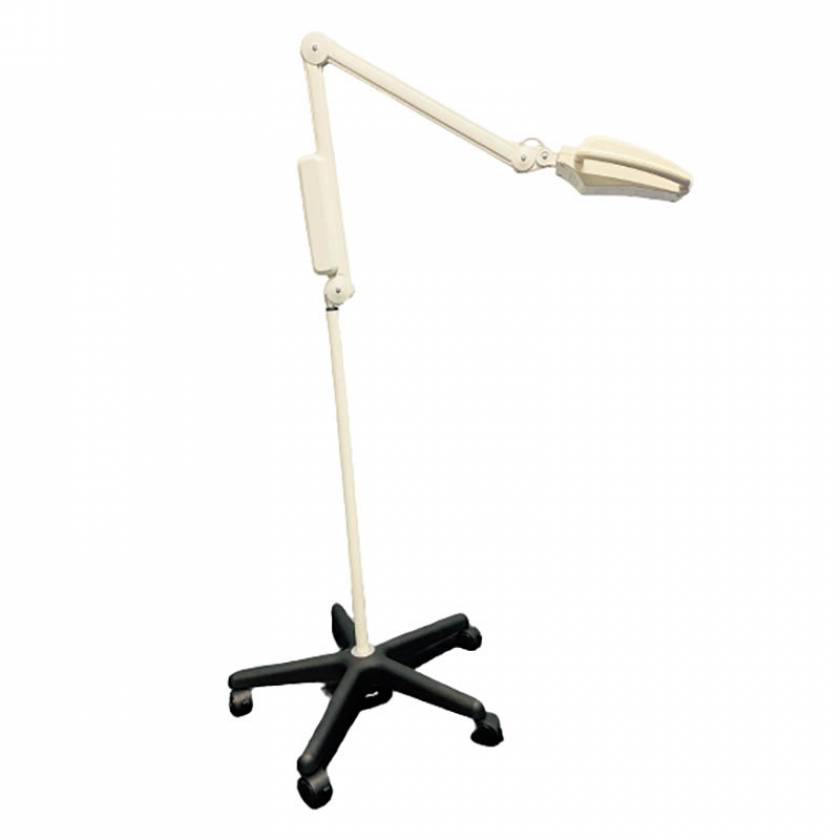

Product Description

Higher performance and value for the practitioner - enhanced comfort for the patient through its dual intensity setting.

  • Nova Exam® LED meets the demands of today's clinical examination applications

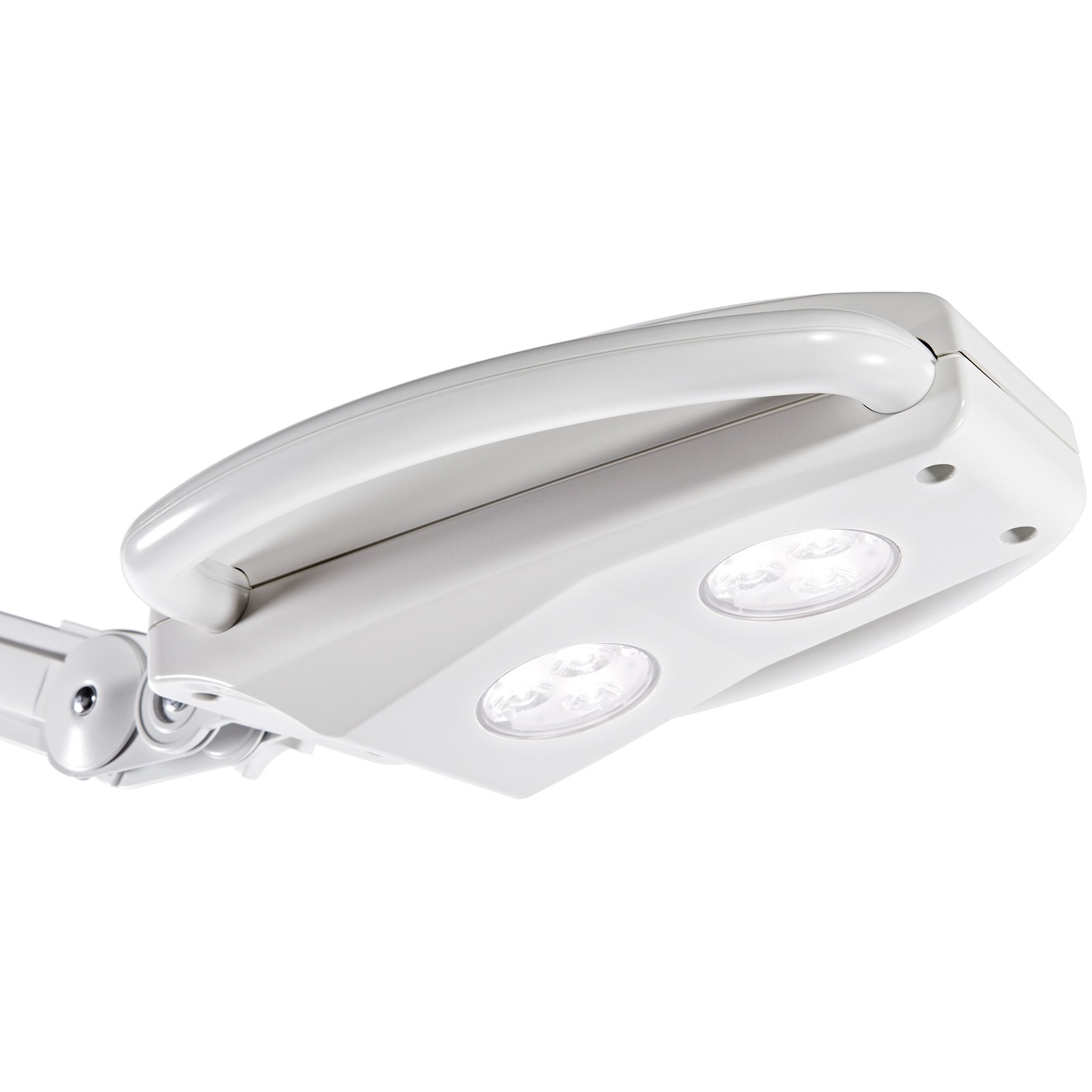

  • The LED Chip-on-Board light source produces light that enhances physician/patient comfort while delivering a high illumination level and a highly uniform beam pattern

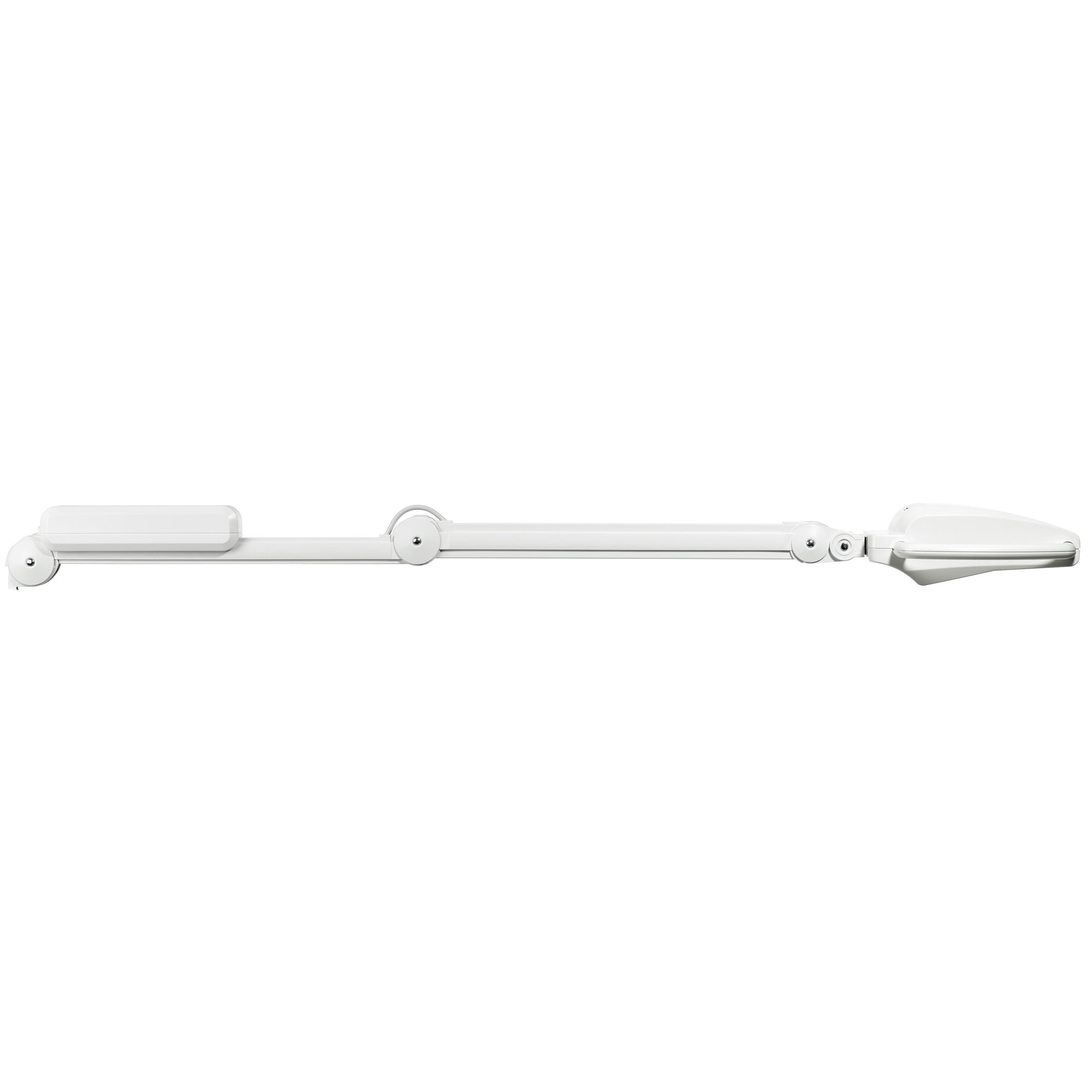

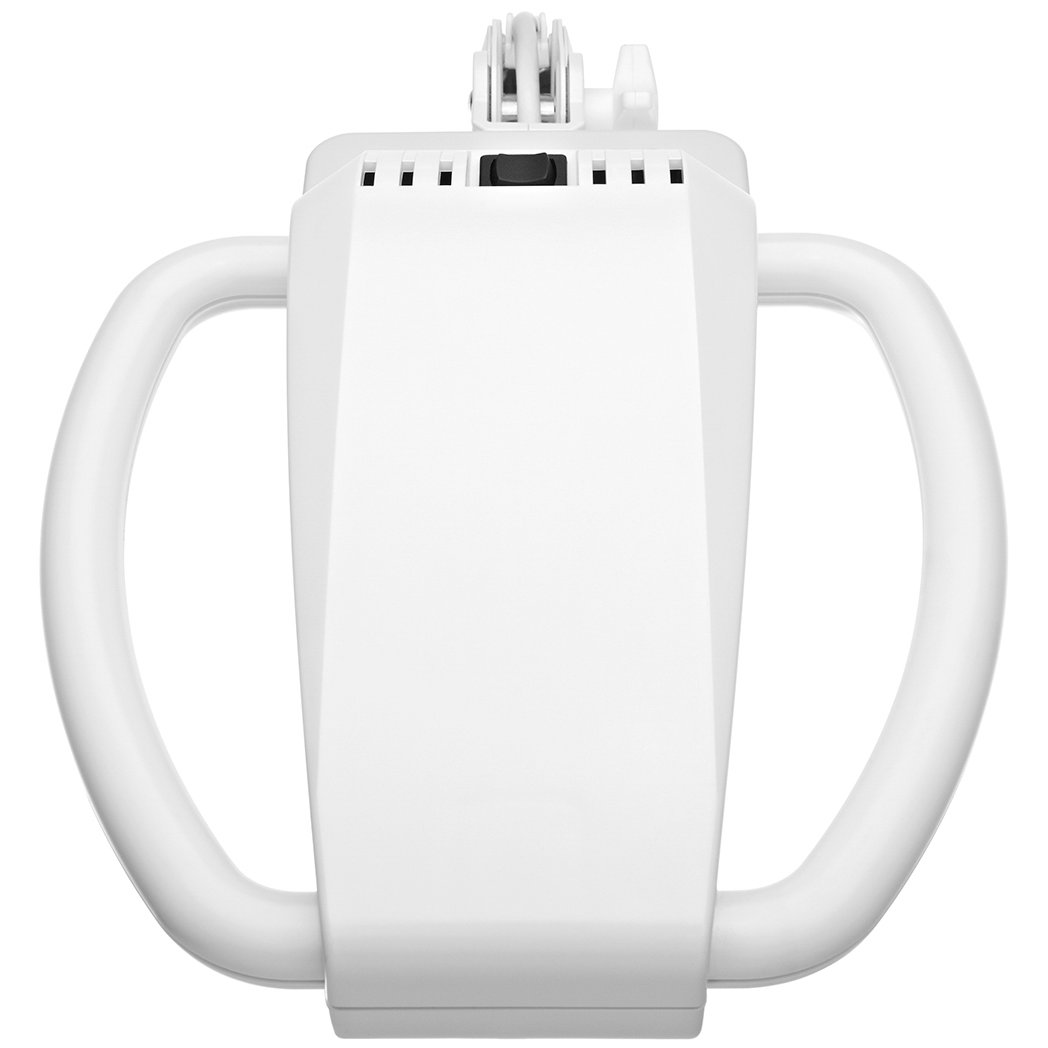

  • A sleek head design, combined with a patented K-arm, allows quick and reliable positioning while being easy to clean and maintain
  • Economical benefits include less maintenance and longer light-source life

Technical Specifications:

  • Illuminance:
    • Low Level: 45,000 lux at 18" (46 cm)
    • High Level: 90,000 lux at 18" (46 cm)
  • Color Temperature: 4100 Kelvin
  • CRI (Color Rendering Index): >95
  • Light Source: Light Emitting Diode (LED)
  • Number of LED Modules: 2
  • Rated Life: 50,000 hours average LED life
  • Input Power:
    • Low Level: 7 Watts
    • High Level: 14 Watts
  • Maximum Arm Reach: 45" (114.30 cm)
  • Application: General examination
  • IEC Plug Type: NEMA 5-15P
  • Certifications/Approvals:
    • ANSI/AAMI ES60601-1:2005 and A!:2009/(R)2012
    • CSA CAN/CSA-C22.2 NO. 60601-1:14
  • Additional Mounting Options Available: Table, Wall or Ceiling
  • 5-year limited product warranty

Specifications

Specifications
Manufacturer Burton
Item Ships From Illinois

Literature

pdf
(Size: 663.1 KB)

Instructions

Warranty:

Mechanical components of Philips Burton products are warranted to provide the original owner 5 (five) years of free service from defects in material and workmanship. The warranty does not cover the following items: light sources, handles, fuses and consumables.

This warranty will not apply if the serial or lot number on the product has been altered, removed or made illegible. This warranty does not cover alterations, adaptations or adjustments made to the product. Periodic maintenance and repair or replacement of parts due to normal wear and tear is not covered.  Also not covered are issues resulting from Abuse or misuse of the product. The warranty does not cover repairs performed by non-authorized service stations, dealers or the original owner.  Warranty does not cover Accidents, lightning, water, fire, improper ventilation or any cause beyond the control of Philips Burton.  Defects of the system into which the product is incorporated including installation and modification defects are not covered by this warranty.

Returns

Unauthorized returns will not be accepted, please contact Customer Service within 30 days of product shipment date and indicate the reason for your return. Returned items must be in new, unused condition in all original packaging. It is customer's responsibility to review product specifications, certifications, listings, etc. prior to purchase. A minimum 18 percent restocking fee plus all freight charges will be applied to any product returned.

A cancellation fee of up to $250 may apply at discretion of manufacturer. Cancellation charges for custom-built products may be subject to additional penalty fees at any time. All freight damage claims must reported within (3) days of receipt of shipment.

Reviews

Ask a Question (2)

Customer Questions
Is the portable-mobile exam light cordless and rechargeable?
Unfortunately, this item is not cordless or rechargeable.
How many hours until the light needs to be replaced?
The rated life of the LED is 40,000 hours of average LED life.
