Product Description

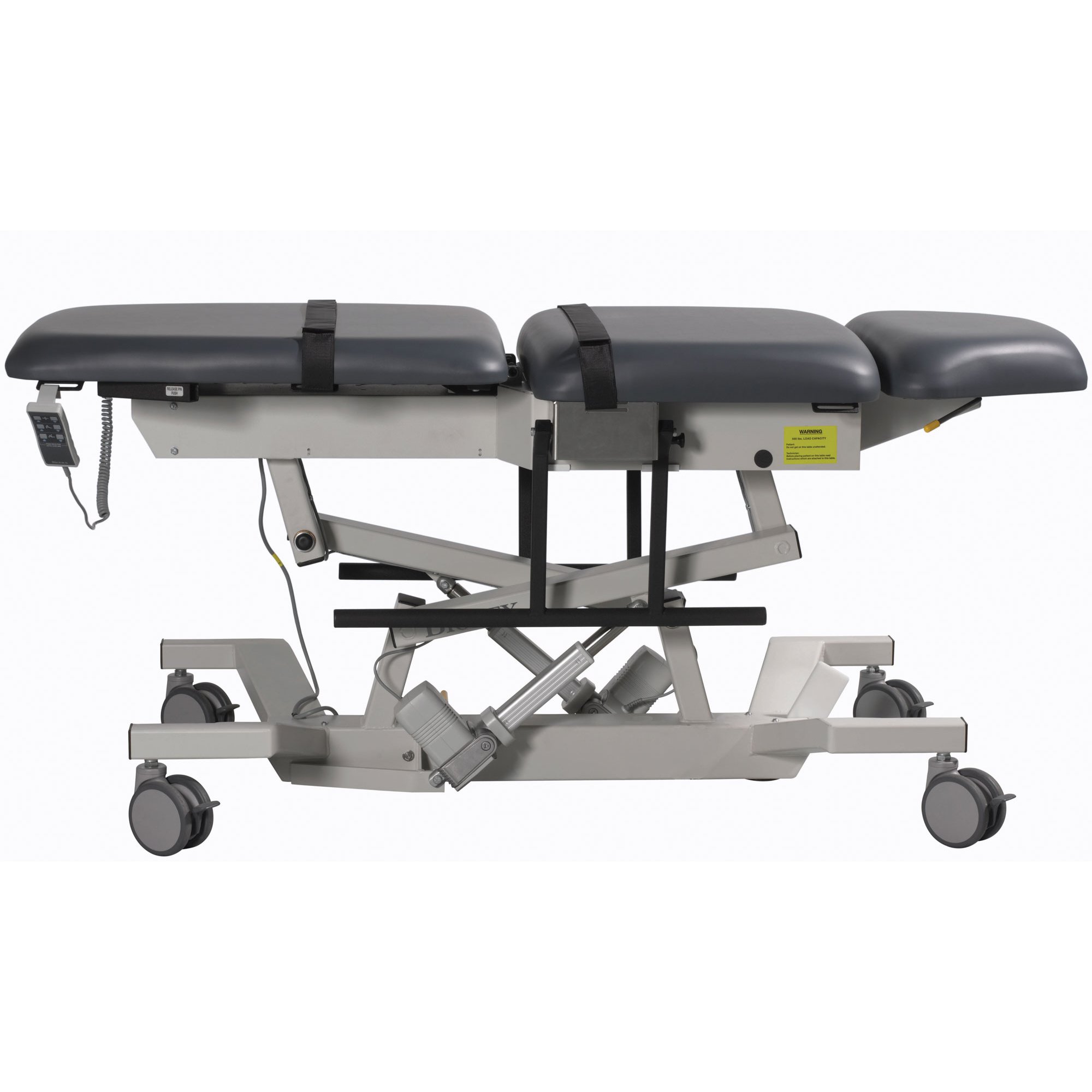

The Econo Ultrasound Table is designed on the same platform as the Ultra Pro with similar features and functions. To make it a more cost-effective alternative it is offered without Trendelenburg positioning or central floor-locking system.

The same ergonomics have been incorporated into the design of the Econo Ultrasound Table, making it easy for a sonographer to achieve quality images without discomfort to the patient or sonographer.

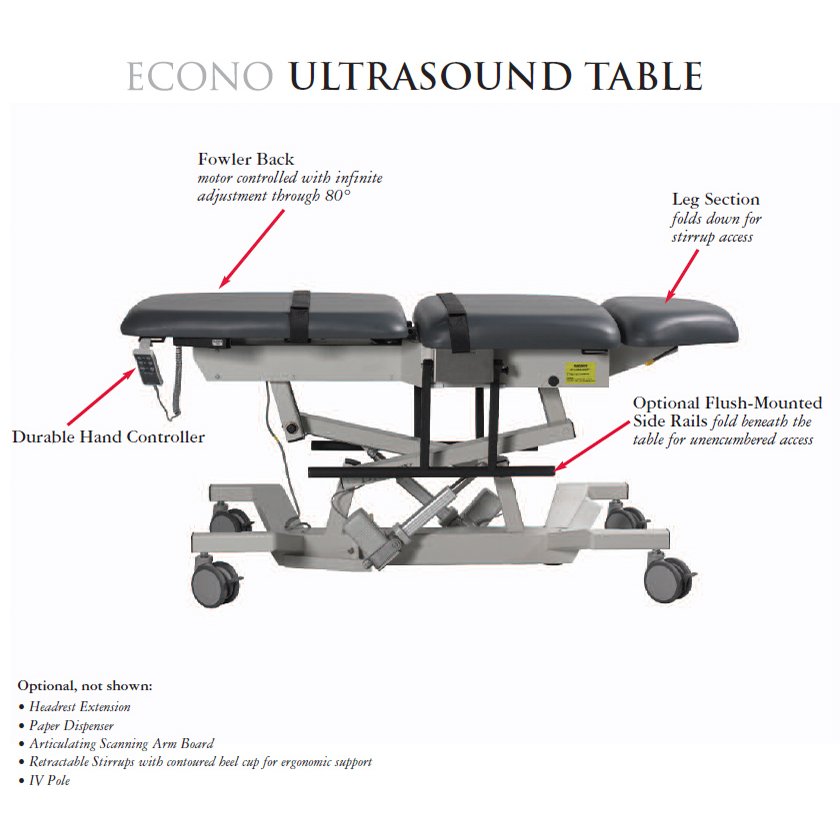

Motorized height and Fowler positioning which accommodates natural body extension and sitting position, a height range as low as 23" to allow wheelchair transfers and a hand controller are just some of the features that make the imaging experience easy with the Econo Ultrasound Table.

Can be customized to suit your department needs with an assortment of table options. Flush-mounted side rails enable closer patient access without sonographer contortion. An articulating scanning arm board, adjustable from 0-130 degrees and a headrest that drops down 15 degrees to allow for carotid studies are just some of the items which can be added to the table.

Features:

  • Accommodates Bariatric Patients
  • Ergonomic design helps prevent musculoskeletal injuries - comfortable shoulder, arm and hand positions when scanning
  • Allows seated or standing work positions
  • 500-lb patient capacity, suitable for bariatric patients
  • Drop-down, contoured leg section
  • Height range down to 23" accommodates wheelchair transfers and those with ambulatory difficulties

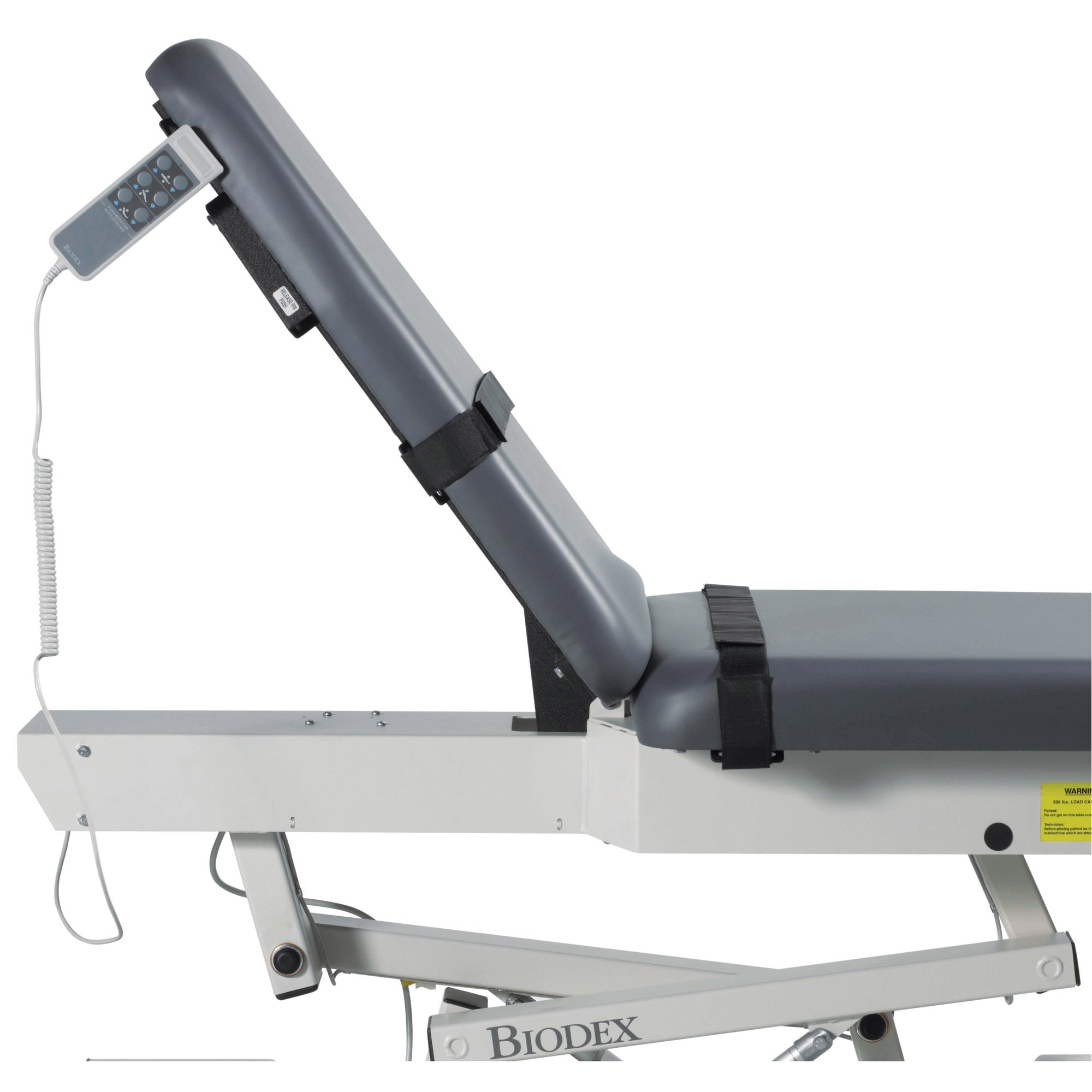

  • Fowler positioning, 0-80 degrees, redesigned to accommodate natural body extension and sitting position without slide or shift
  • Motorized height and Fowler positioning Naugahyde® antimicrobial mattress cover with Advanced BeautyGard® provides protection against bacteria
  • Activates table positions with the included hand controller



Optional table accessories include Paper Dispenser with Cutter Strap (058-611), Folding Side Rails (058-633), Retractable Stirrups (058-652), Vascular Articulating Scanning Arm Board (058-736), IV Pole (058-737), and Headrest (058-738) are installed by the customer. Some images are shown with optional accessories.



Specifications:

  • Overall Dimensions: 70" L x 30" W; 35" W with optional side rails
  • Height Adjustable: 23"  to 39"
  • Drop-Down Leg Section: 12.6" L
  • Tabletop: Three primary sections: Torso section with Fowler positioning, Center section remains fixed and Leg section drops down to 40° and 80° for stirrup access
  • Mattress: Torso section 2" thick, Center and Leg sections 3" thick; Naugahyde®, antimicrobial mattress cover with Advanced BeautyGard® provides protection against bacteria
  • Upholstery Color: Graphite
  • Motions: Fowler Back: 0° to 80° infinitely adjustable
  • Controls: Hand Control (includes): Activates height and Fowler back
  • Wheels: 5" Individual locking swivel casters
  • Patient Restraints: Two body straps
  • Finish: Powder coat
  • Patient Capacity: 500 lb; weight tested to four times the patient load rating
  • Product Weight: 335 lb
  • Power: 115 VAC
  • Certifications: ETL and cETL Listed to UL60601-1 and CAN/CSA C22.2 No. 601.1-M90 and EN60601-1 standards



Please Note:

About this Brand

Specifications

Specifications
Manufacturer Biodex
Actual Product Weight 335
Overall Height 39
Overall Length 70
Overall Width 30
Weight Capacity 500
Country of Manufacture United States
Item Ships From New York
