Product Description

The AIM LED uses the latest advances in state-of-the-art lighting technology to achieve incredible performance and unsurpassed value and energy efficiency.

  • Provides 10% more illumination (45,000 lux / 4181 fc at 1 meter) than even the high performing AIM-50
  • A 92 CRI rating produces very accurate color visibility which is important for an accurate diagnosis
  • With 10 times greater (50,000 hours) lamp life than traditional light source products, you will save more than $1000 in bulb replacements alone
  • Additionally, the AIM LED uses 55% less energy

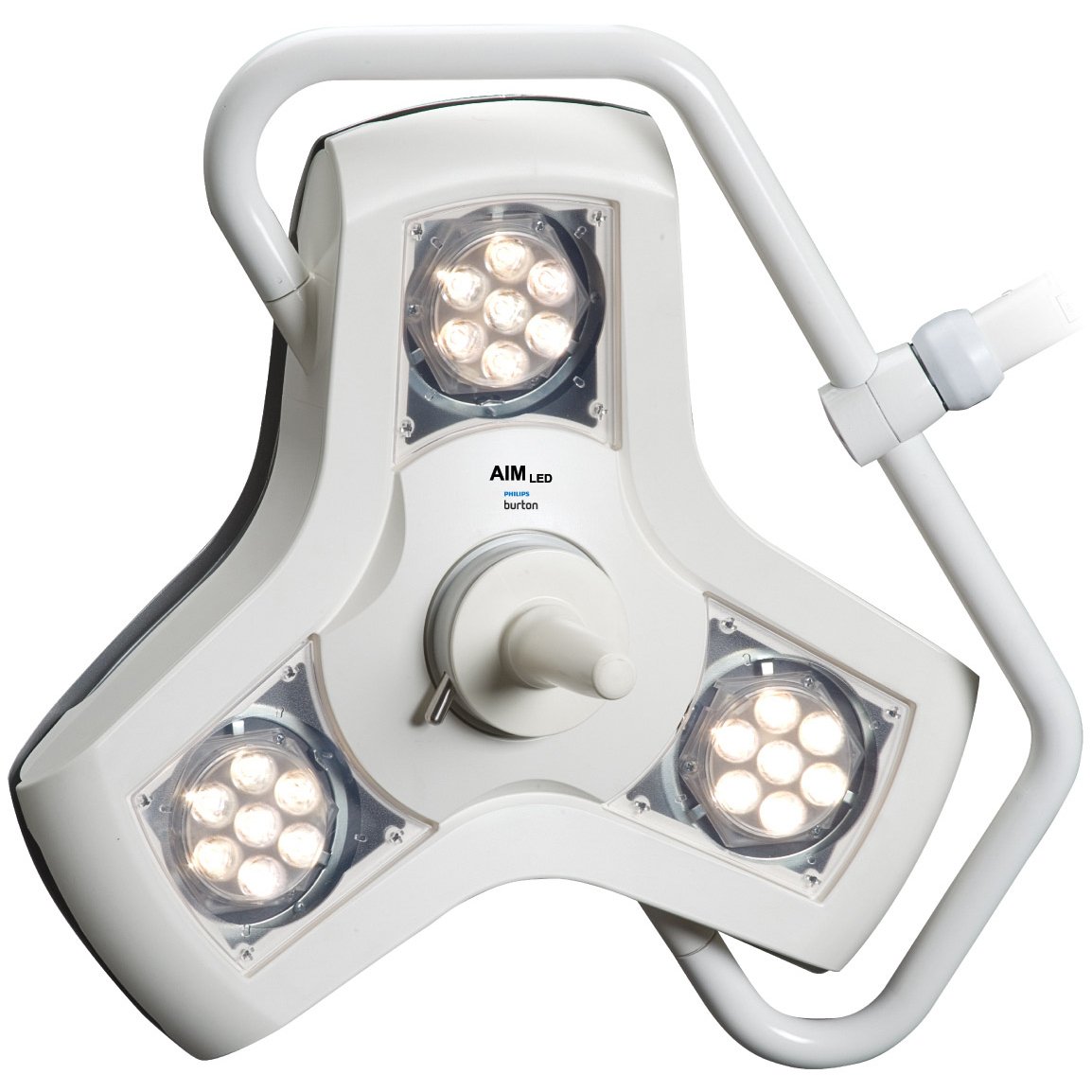

  • The multiple reflectors of the AIM LED can be tilted by rotating the sterilizable light handle to adjust the size and pattern of the light to the working area
  • Unique Y-Shaped design facilitates placement of the lighthead around the physician's head, minimizing the obstruction of light into the surgical field
  • The spring arm and light head will go up at a 45-degree angle, giving the light head approximately 16" over the horizontal for a total of approx. 79"

Technical Specifications:

  • 45,000 lux (4181 fc) at 1 meter
  • 4300 K color temperature
  • CRI (Color Rendering Index) of 92
  • 3 LED modules with a 50,000-hour life
  • Adjustable focus using center handle
  • 5-year limited warranty
  • 120V model with Nema 5-15 Plug
  • Assembled in USA

Certifications/Approvals:

  • UL60601-1 / IEC 60601-1 / IEC 60601-1-2 / IEC 60601-2-41
  • CAN/CSA C22.2 601-1 M90
  • CE marked
