Product Description

Designed for use with 3D C-Arm, O-Arm and Mobile CT Scanners

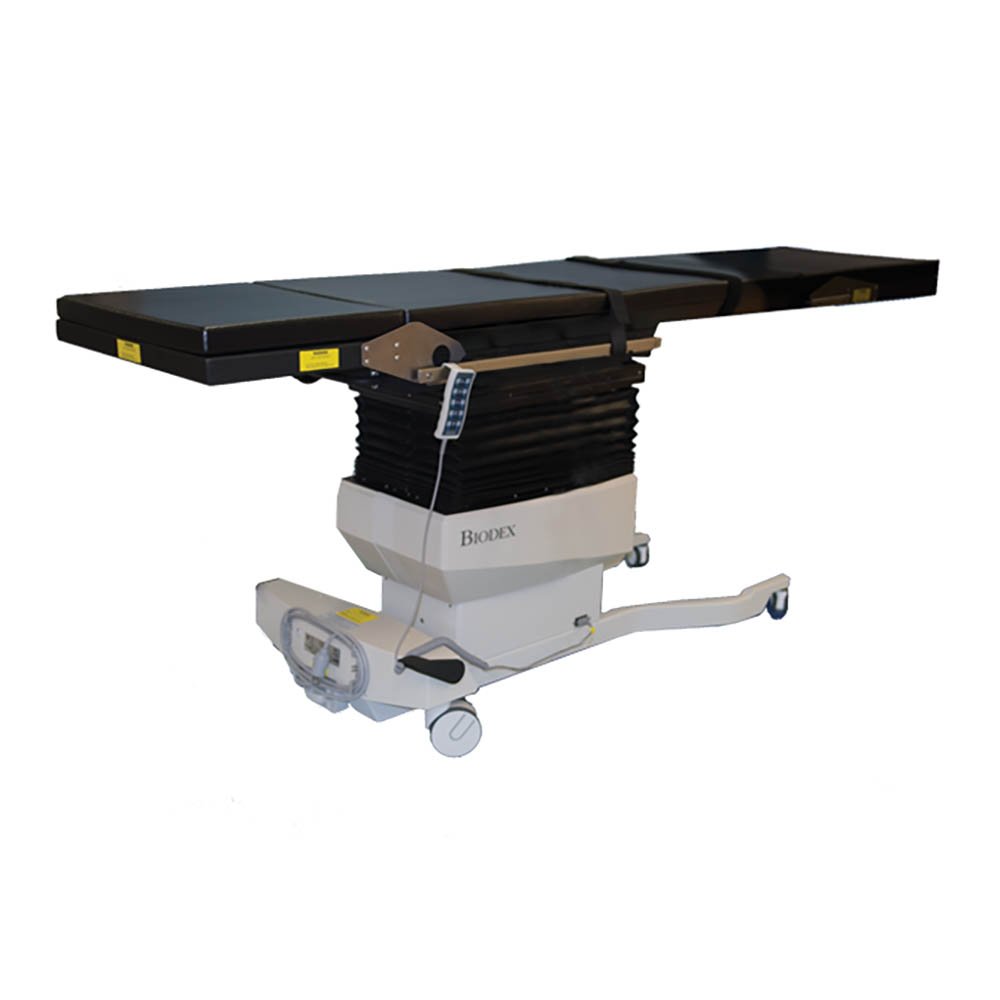

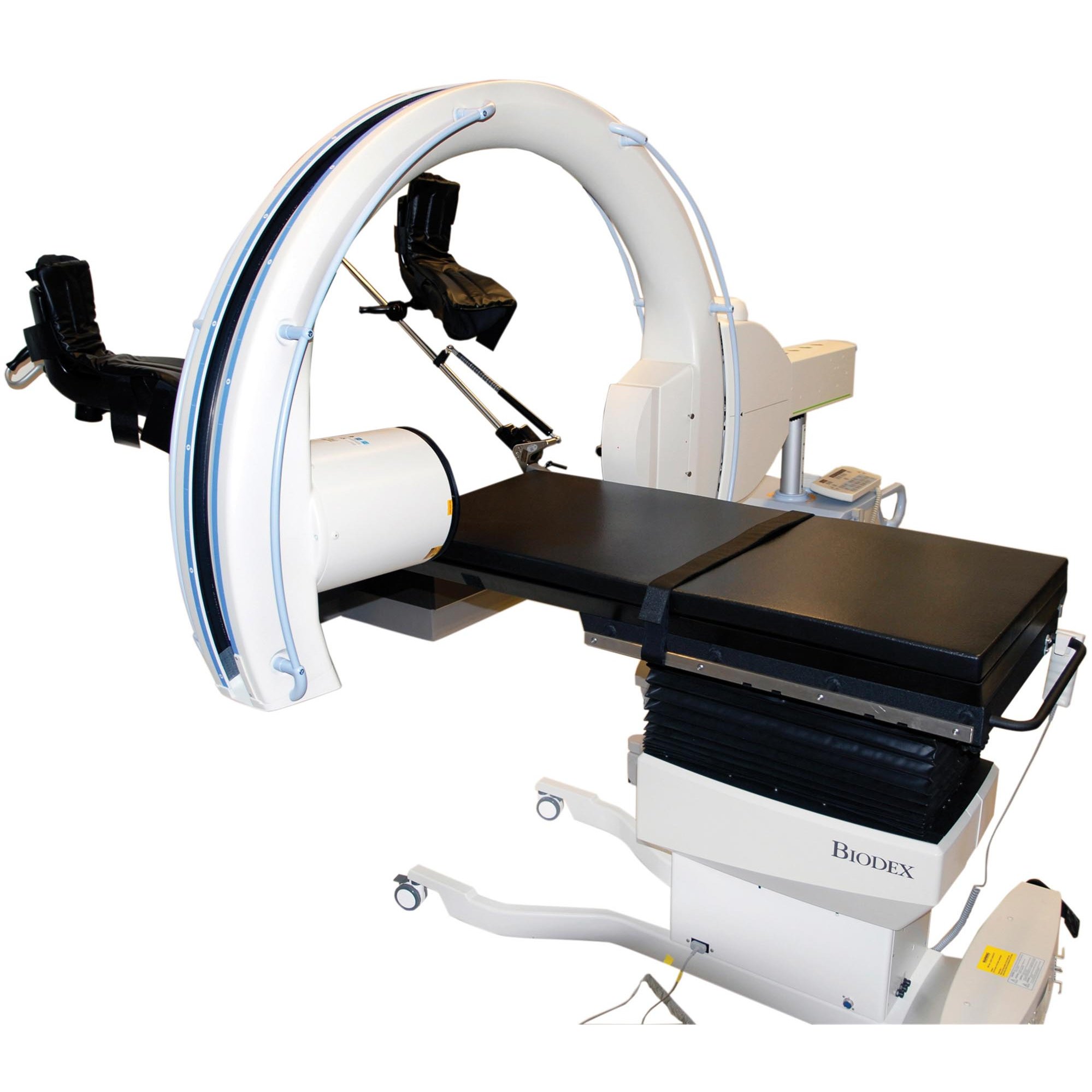

Designed and equipped for use with 3D C-Arm for seed implantation, urology, thoracic/vascular and other general C-Arm and O-Arm applications. The narrow, low-attenuation carbon-fiber tabletop is cantilevered to accommodate portable 3D C-Arms. The functional design provides unrestricted access with minimal radiation exposure to clinicians.

Features:

  • Carbon-Fiber Tabletop – 0.7 mm attenuation (1.2 mm with pad)
  • Radiolucent Area – Total length, 51.5"
  • Exceptional Platform – For brachytherapy and 3D urology procedures
  • Head and Foot Extensions – Ideal for imaging of breast and thorax
  • Tabletop Positioning – Motorized, five-axis
  • Stepper Positioning – Accessory rail easily accommodates
  • Hand and Foot-Operated Controllers – For convenient positioning
  • Low Profile Base – For unrestricted C-Arm movement
  • Accessory Rails
  • AC and Battery Power – Standard

Power Motions: The table features motorized actuation of height, X-Y, lateral roll and Trendelenburg motions of the tabletop. The hand-held and foot-operated controllers can be positioned for access from any point around the table and ensure quick and safe tabletop positioning during any phase of a procedure. The "Level" feature returns the table to 0° tilt and 0° lateral roll, bringing the table quickly to a level position. Both controllers can be used for motorized X-Y positioning of the tabletop and feature proportional speed control.

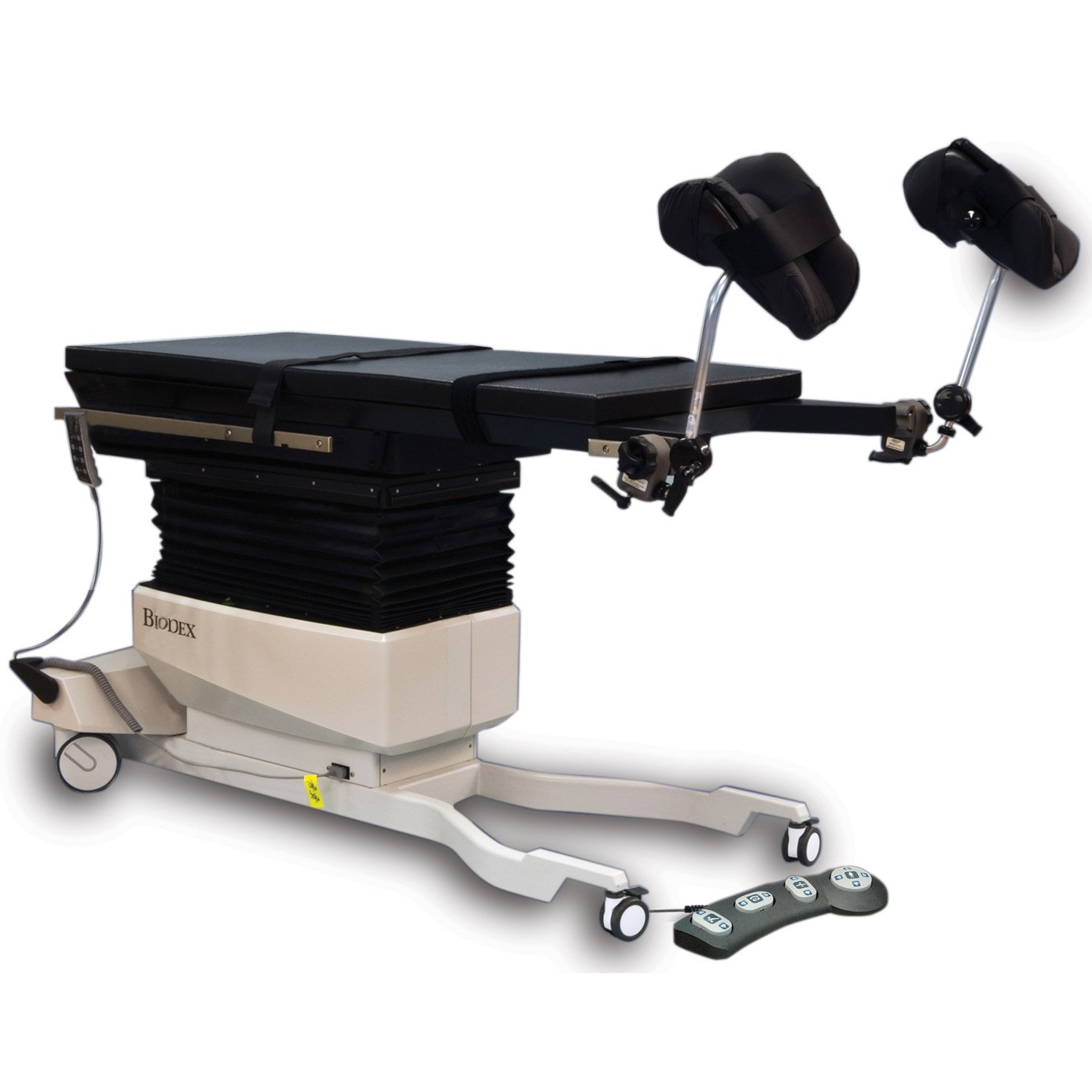

More Adjustments and Features… The table comes equipped with a lightweight, non-imaging patient transfer extension and a radiolucent extension. A standard OR accessory rail located at the foot end of the table makes stepper positioning quick and easy. Select from knee crutches or the PAL Stirrups, standard or Dura Board arm boards, the choice is yours…configure to your exact specifications.

Both AC and battery power are standard. When operating on battery, there are no power cords to hinder movement or block casters. Battery charging can be accomplished during off hours by plugging in the AC adapter cord. An optional battery with separate charging unit can provide continuous cordless operation.

Optional Accessories are installed by the customer. Some images are shown with optional accessories.

Specifications:

  • Dimensions:
    • 103.75" L x 26" W with OR accessory rails
    • Tabletop: 103.75" L x 24" W includes head and leg extension
    • Radiolucent Area: 3D Imaging Area: 22.5" L x 24" W
    • Radiolucent Extension (Fiberesinâ„¢, non-3D): 29" L x 22.5" W
    • Total Radiolucent Area (Combined): 51.5" L x 24" W
    • Head-End Extension (non viewable): 18.2" L x 24" W
  • Tabletop Material: Carbon fiber
  • Mattress: Vinyl covered, Seamless, 2" thick
  • Motions:
    • Height Adjustable: 34" H to 44" H
    • Tabletop X Motion (head to toe): 10"
    • Tabletop Y Motion (side to side): 10"
    • Trendelenburg: 0° to 20°
    • Reverse Trendelenburg: 0° to 20°
    • Lateral Roll: 0° to 20°
  • Controls: Hand Control and Foot Control - Activates All Motions
  • Wheels:
    • Head End: 3" swivel casters, integral locking system on bas
    • Foot End: 5" swivel casters with central locking
  • Accessory Rails: Standard OR accessory rails, 1.125" x .375" - Optional: Head-End 30" L -  Foot-End 7.75" L
  • Patient Capacity: 500 lbs; weight tested to four times the patient load rating
  • Power: 115 VAC and battery. Battery automatically charges when table is plugged in. An additional battery can be charged with optional wall-mounted charger.
  • Product Weight: 542 lbs
  • Certifications: ANSI/AAMI ES60601-1:2005 +C1 (2009) +A1 (2012) +A2 (2010); CAN/CSA C22.2 No: 60601-1:14; CAN/CSA-C22.2 NO. 60601-2-46:12; IEC 60601-1-2-46:2016
  • CDRH registered and FDA Device Listed
  • Warranty: Two years parts and labor
